Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-GSF1T2
Place of Origin :
Shenzhen China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 pieces per one week
Delivery Time :
5-7 working days
Packaging Details :
215mm×138 mm× 56mm
Product Name :
2-port 10/100/1000Mbps + 1-port 1000Mbps SFP Fiber
Product Model :
OFS-GSF1T2
Power Supply external PS :
Input Voltage: DC52V (48～55V)
PoE Specification :
Output Voltage: DC48V
LED Indicators :
Power: PWR; Link;POE ; Link/Act
Product Weight: :
0.5 KG
Product size :
93mm× 70mm× 26mm
Description

Anomaly link detection unmanaged Power Over Ethernet POE Switch 2-4 port 10 / 100/ 1000M for ip cameras

Product Description

Technical items Description
Product Name 2-port 10/100/1000Mbps + 1-port 1000Mbps SFP Fiber
Product Model OFS-GSF1T2
Network Protocols IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Multi-mode: 2KM
Single-mode: 20/40/60/80KM
Performance Specification Bandwidth: 6Gbps
Packet Buffer Memory:2M
Packet Forwarding Rate:1488000pps/port
MAC Address Table:1K /port
PoE Specification PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports: 2 port support PoE
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
PoE port Auto detect AF/AT devices
Output Voltage: DC48V
Power Pin Assignment:1/2+;3/6-
Power Type: End-span( Mid-span optional)
Forwarding Mode Store-and-Forward
LED Indicators Power: PWR; Link;POE ; Link/Act
Power Supply Input Voltage: DC52V (48～55V)
Working Environment Working temperature: -10～55℃ ; Storage temperature: -20～75℃
Relative Humidity: 5%~95 %( no condensation)
Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List 1× Media Converter
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF 100,000 hours
Weight & Size Product Weight: 0.5 KG
Packing weight: 1.1 KG
Product size (L×W×H): 93mm× 70mm× 26mm
Packing size(L×W×H): 215mm×138 mm× 56mm
Warranty 1-years

Feature:

  • 2 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP Slot
  • 2 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
  • Automatic MAC address learning and aging
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports10/100/1000Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation ,Optional.
  • Supports Broadcast Storm Control
  • Supports Relay output for power failure
  • Excellent heat elimination without cooling fan.
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
  • Harsh environment or higher requirement
  • -10℃-55℃operating temperature range.

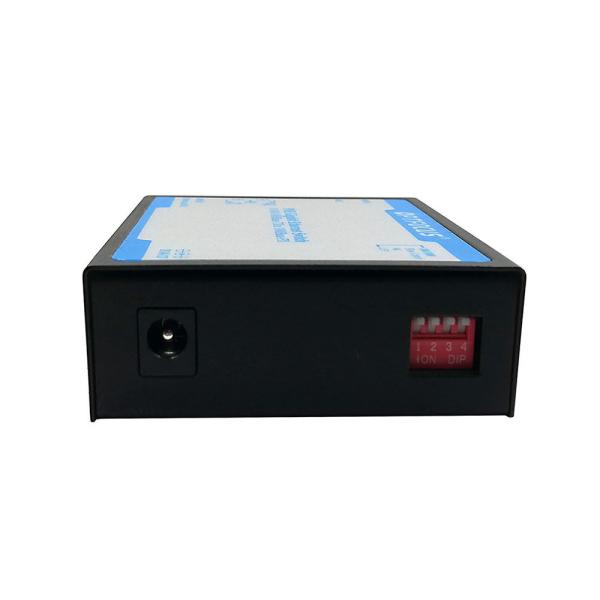

Product Exhibition


Most popular & high quality 2* 10/100/1000Base-T RJ45,1* 1000M fiber SFP ports, without SFP module,POE, external PS



Anomaly Link Detection Unmanaged Power Over Ethernet POE Switch 2-4 Port 10/100/1000M For Ip Cameras

Anomaly Link Detection Unmanaged Power Over Ethernet POE Switch 2-4 Port 10/100/1000M For Ip Cameras

Anomaly Link Detection Unmanaged Power Over Ethernet POE Switch 2-4 Port 10/100/1000M For Ip Cameras

Anomaly Link Detection Unmanaged Power Over Ethernet POE Switch 2-4 Port 10/100/1000M For Ip Cameras

Application

Anomaly Link Detection Unmanaged Power Over Ethernet POE Switch 2-4 Port 10/100/1000M For Ip Cameras
