Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-GSF1T8S-20
Place of Origin :
Shenzhen China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 pieces per one week
Delivery Time :
5-7 working days
Packaging Details :
306mm×152 mm× 55mm
Product Name :
8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber
Product Model :
OFS-GSF1T8S-20
Power Supply external PS :
Input: AC100 ～ 250V, Output:DC5V 2A.
Environment temperature :
0 ～ +55℃
Max power :
5W
Product Weight: :
0.5 KG
Product size :
190mm×104mm× 29mm
Description

high reliable Fiber optic switch 8 port gigabit and 2 gigabit SFP Dual fiber SM with 20KM

Product Description

Technical items Description
Product Name 8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber
Product Model OFS-GSF1T8S-20
Network Protocols IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Multi-mode:550M- 2KM
Single-mode: 20/40/60/80/100KM
Fiber port :SC/ST/FC Optional
Performance Specification Bandwidth: 10Gbps
Packet Buffer Memory:1M
Packet Forwarding Rate:1488000pps/port
MAC Address Table:4K
Forwarding Mode Store-and-Forward
LED Indicators Power: PWR;FX Link/Act;TP 1000;
TP Link/Act
Power Supply Adapter:
Input: AC100 ～ 250V, Output:DC5V 2A.
Max power 5W
Environment temperature 0 ～ +55℃
Storage temperature -20 ～ +70℃
Humidity 5% ～ 90%
Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List 1× Switch
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF 100,000 hours
Weight & Size Product Weight: 0.5 KG
Packing weight: 1.1 KG

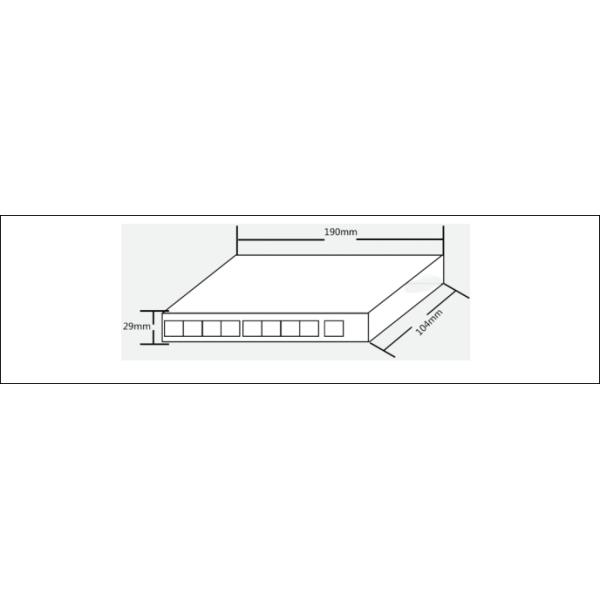

Product size (L×W×H):190mm× 104mm× 29mm

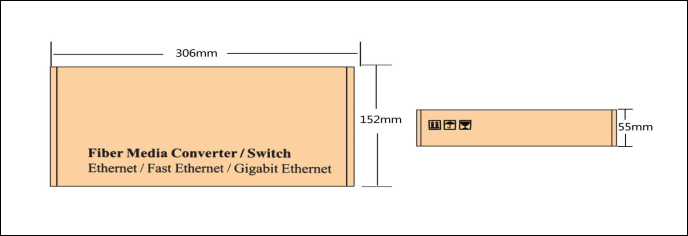

Packing size(L×W×H): 306mm×152 mm× 55mm
Warranty 1-years

Feature:

  • 8 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps Fiber port.
  • Automatic MAC address learning and aging
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports10/100/1000Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation ,Optional.
  • Supports Broadcast Storm Control
  • Excellent heat elimination without cooling fan.
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
  • Harsh environment or higher requirement
  • -10℃-55℃operating temperature range.

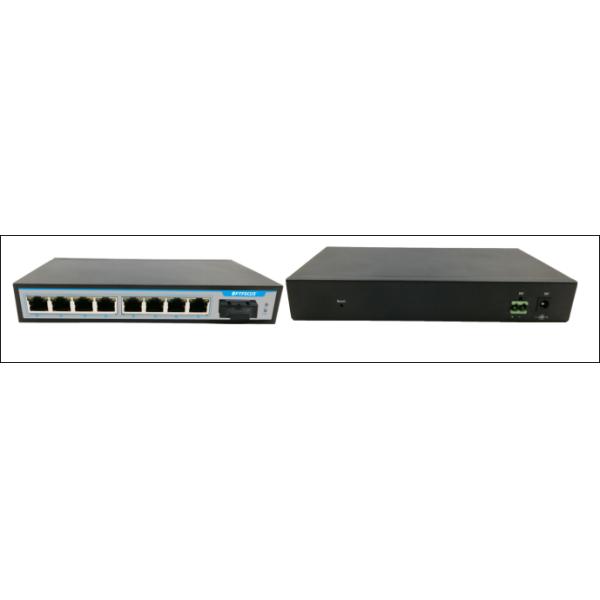

Product Exhibition


Most popular & high quality 8ports 10/100/1000M+1port 1000M SM 20KM Fiber Switch



8 Port Gigabit Fiber Optic Switch , Dual Fiber Optical Network Switch 20KM

8 Port Gigabit Fiber Optic Switch , Dual Fiber Optical Network Switch 20KM

8 Port Gigabit Fiber Optic Switch , Dual Fiber Optical Network Switch 20KM

8 Port Gigabit Fiber Optic Switch , Dual Fiber Optical Network Switch 20KM

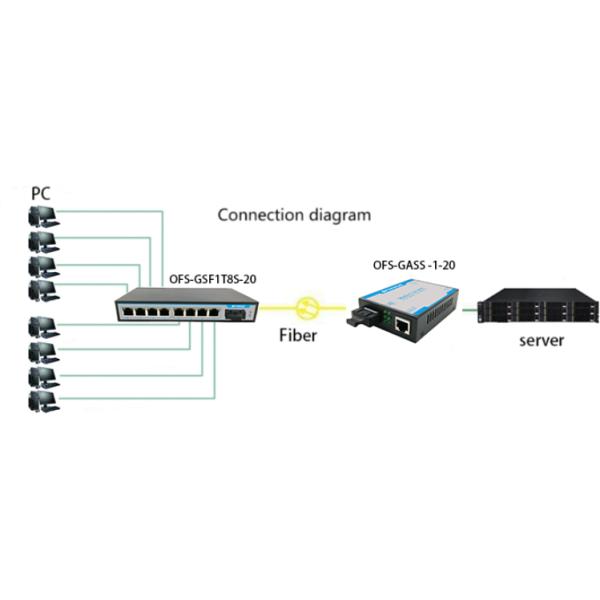

Application

8 Port Gigabit Fiber Optic Switch , Dual Fiber Optical Network Switch 20KM
