Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-GWS01-20
Place of Origin :
Shenzhen China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 pieces per one week
Delivery Time :
5-7 working days
Packaging Details :
215*138*56mm
Product Name :
10/100/1000M Media Converter
Product Model :
OFS-GWS01-20
Dual Fiber connector :
1* 1000Mbps，SC/ST/FC Optional
RJ45 connector :
1*10/100/1000Mbps,Auto MDI/MDI-X
Product Weight :
0.5 KG
Product size (L×W×H) :
94.5*70*26mm
Description

High performance Fiber media convertor 10/100/1000M single fiber SM with 20KM

Product Description

Technical items Description
Product Name 10/100/1000M Media Converter
Product Model OFS-GWS01/02-20
Connector Dual Fiber: 1* 1000Mbps,SC/ST/FC Optional
RJ45: 1*10/100/1000Mbps,Auto MDI/MDI-X
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding Mode Store-and-Forward
Forwarding Rate: 1488000pps/port
Operating standard EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power Input:AC 100~250VOutput:DC 5V 1A ,(default).
or Input:DC:-36V~-72V；Output:DC 5V 1A .(Optional)
USB power supply(Optional).
Power consumption 2.5W

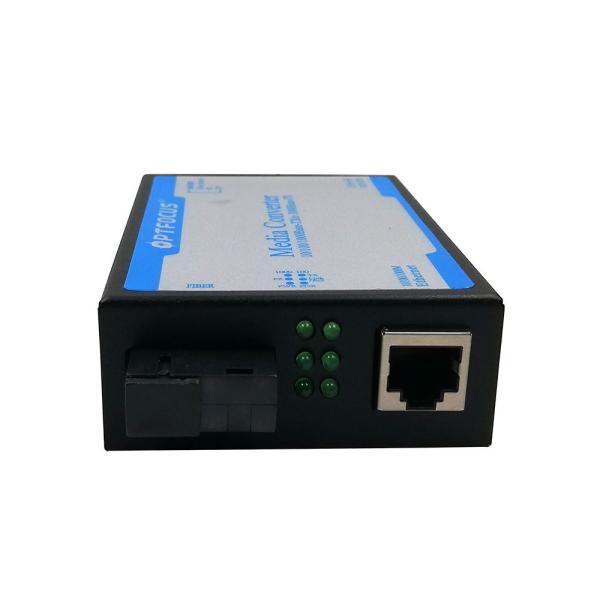

LED Power,Link/Act, TX 1000,100,FDX, Link/Act.
Working Environment Working temperature: -10～55℃ ;
Storage temperature: -20～75℃
Relative Humidity: 5%~95 %( no condensation)
Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List 1× Media Converter
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF 100,000 hours
Weight & Size Product Weight: 0.5 KG
Packing weight: 1.1 KG
Product size (L×W×H): 94.5*70*26mm

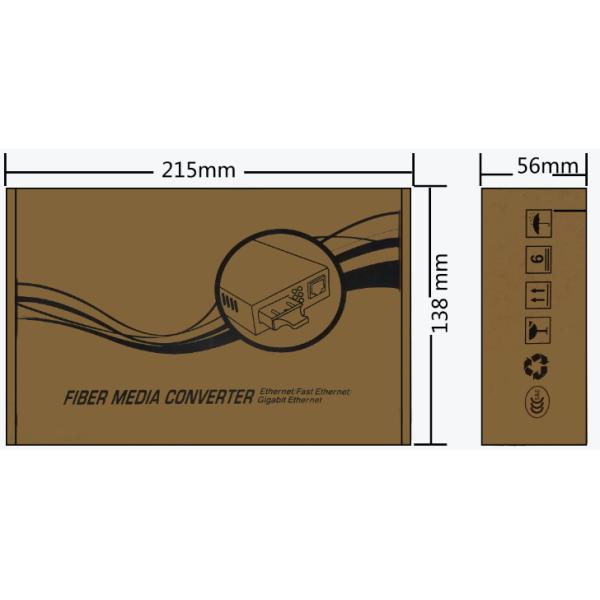

Packing size(L×W×H):215*138*56mm
Warranty 1-years

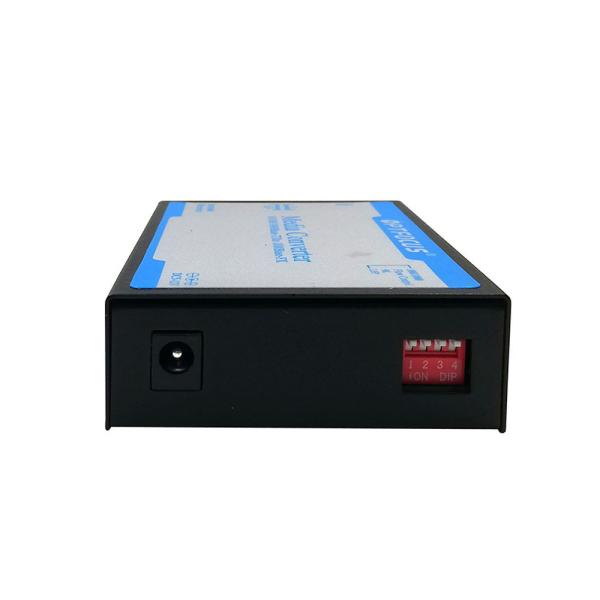

DIP Switch:

SW1 ON Enable LFP
OFF Disable LFP
SW2 ON Cut-through
OFF Store-and-Forward
SW3 OFF No function
SW4 OFF No function

Feature:

  • 1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard
  • Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex
  • Supporting 1552 bytes packet
  • Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
  • Data Transfer Rate:
    　- TP: 10/100/1000Mbps
    　- FX: 1000Mbps
  • Duplex mode support:
    - Full or half-duplex mode by Auto-Negotiation (TP)
  • LED indicators: Power, FX Link/Act, TX 1000, 100,TX FDX, TX Link/Act
  • Supports link fault pass through function.
  • Design of internal or external power supply for selection by end-users
  • Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
