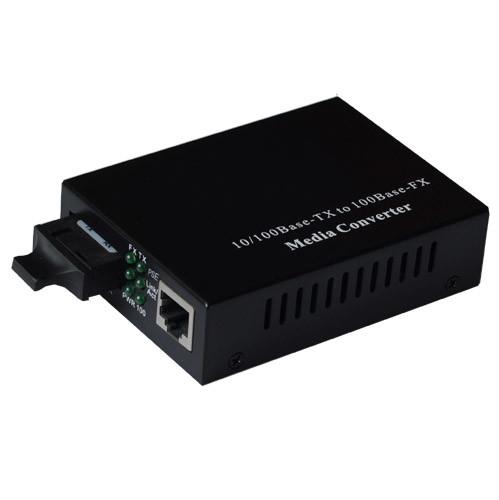

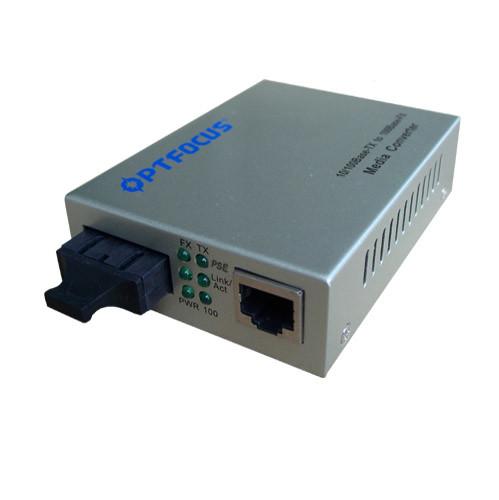

DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45
DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45
DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45
DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45
DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45
DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-PE-DX-XX
Certification :
CE, RoHS, FCC
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
3000 pcs per week
Delivery Time :
5-8 working days
Packaging Details :
40 pcs per carton
Material :
iron housing
Power :
DC48V 1.25A
Connectot :
SC, RJ45, FC
Data rate :
10/100Mpbs
Dimension :
90x70x26mm
Temp. :
0~50℃(Operating); 20~70℃(Storage)
Warranty :
1 year
Carton size :
48*44*39CM for 40 pcs
Description

PoE media converter 100M 1 port FX to 1 port 10 / 100M rj45 with iron housing 15.4W PoE power

OFS-PE-DM-xx

DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45

DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45

More than a Fiber Media Converter and also can be a Power over Ethernet Injector as well. The best data link and power sourcing solution for long reach network equipment.

This OFS-PE-DX-XX series Media Converter are 10/100Base T/TX to 100Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones, etc.

Feature:

◆With PoE supported to save power infrastructure cost

◆IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible

◆Connect to PoE switches mid-span hubs or other 802.3af Power Source Equipment(PSE).

◆Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.

◆Stand alone unit with mini design.

Specification:

Standard IEEE802.3i 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3x Flow Control
IEEE802.3af Power over Ethernet
PoE power 15.4W per port (IEEE802.3af)
Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
Cable: UTP cat.5 or higher
Fiber type Multi mode(MM): 62.5/125m.50/125m
Single mode(SM): 9/125m
Distance Multi mode & Dual Fiber 2KM
Single mode & Single Fiber:20/40/60/80/120KM
Data rate 10/100Mpbs
Connector RJ45,SC,FC
Wavelength 1310nm 1490nm 1550nm
Diagnostic LED Power Link/Activity
Power DC48V 1.25A
Power Consumption <3w
Temperature 0~50℃(Operating); 20~70℃(Storage)
Humidity 10~90% non-codensing
Dimension 90x70x26mm

Ordering information:

OFS-PE-DM-2 10/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 2km.supported 15.4W PSE.
OFS-PE-DS-XX 10/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20～120km.supported 15.4W PSE.
OFS-PE-WS01/02-XX 10/100M Ethernet Single Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310/1550nm of optical wavelength, the max distance of fiber up to 20～120km.supported 15.4W PSE.
