1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-PE-GSF1GT2DT8
Certification :
CE
Place of Origin :
Guangdong, China(Mainland)
MOQ :
1 pieces
Price :
negotiated
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
10000 Pieces per Month
Delivery Time :
1-3 Working Days after Payment Received
Packaging Details :
125 × 27 × 85 mm
Power :
External
Optical Mode :
Single or Dual
Ambient Temperature :
0 ～ +50℃
Frame buffer memory :
1MKb
Dimensions :
125 × 27 × 85mm
Storage Temperature :
-20 ～ +70℃
Fiber type :
Mulyimode of Singlemode
Description

1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch

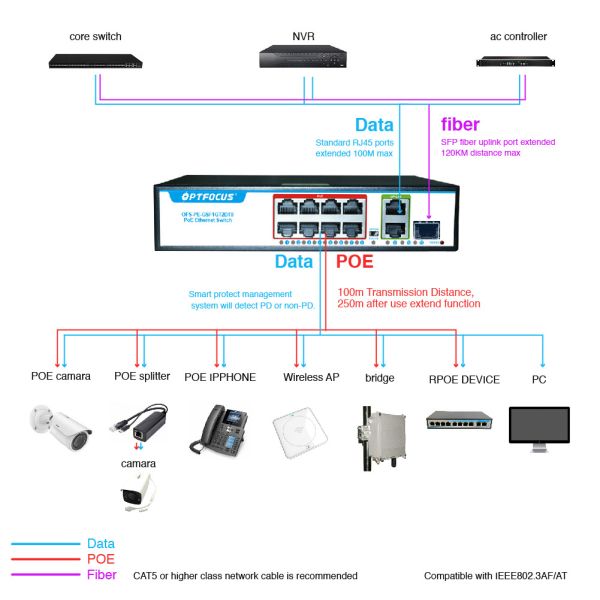

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

8*10/100mbps POE port,2*10/100/1000mbps UP-Link port,1*SFP

100m Transmission Distance,250m after use extend function

Compatible with IEEE802.3AF/AT

Whole Power:120W(52V 2.3A)

All port supported by MDI/MDIX auto flip and self negotiation

Supply 8pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

Each port max. power supply reached 30W.

Low heat design, safe and reliable, high stability

Application:² Wireless Access Point² IP Camera

² IP Phone² Computer Networks

1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch

Product Name 8 Port GIGABIT ACTIVE POE Switch(8+2+1)
Product Model 1011GB
DATA PIN 1/2+,3/6-
Power Supply Type Build In, Both 1/2+,3/6- and 4/5+7/8-
PoE Output Power 15.4W/30W
Connector 8*10/100mbps POE port,2*10/100/1000mbps UP-Link port,1*SFP
Network Medium Cat5 (UTP) or more
Technology
Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power

30W per port(IEEE802.3af/at).

Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)
Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Address database Table Size 2k MAC address
Buffer memory 48Kb embedded memory per unit
Backboard Bandwidth 7.6G
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power
Input 52V DC input 110V-250V
PoE power consumption 15.4W per port(IEEE802.af)
Overload current protection Present
Mechanical
Casing Metal
Installation Desktop/Rack mounting
Interface
LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error
Environment specification
Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Regulatory Approval
ISO Manufactured in ISO9001 facility
Safety CE/CCC
Warranty 2 years
Dimensions 202*140*45mm(L*W*H)
