Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-SCH-01M
Certification :
ROHS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiated
Payment Terms :
Western Union, T/T, L/C, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
5-8 days afterpayment received
Packaging Details :
280*200*90cm/1pcs,1.2kg/1pcs
Weight (excluding outside box) :
1200g-1500g
Color :
black
Capacity of FOSC :
Bunchy: 6-96 Cores
Connector type :
1outlet and 1inlet
Material :
PC
Diameter of fiber cable :
8-14(mm)
Dimension(mm) :
280x200x90 (mm)
Description

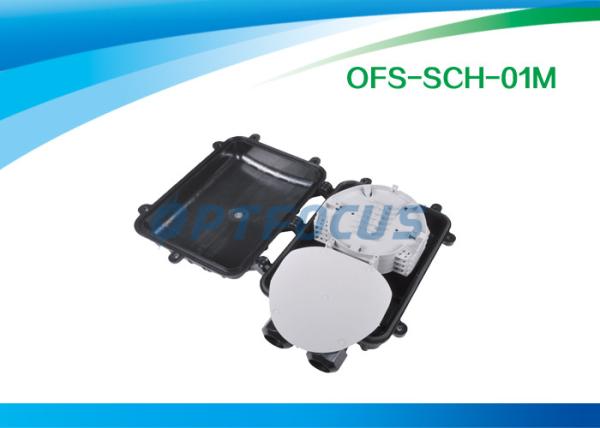

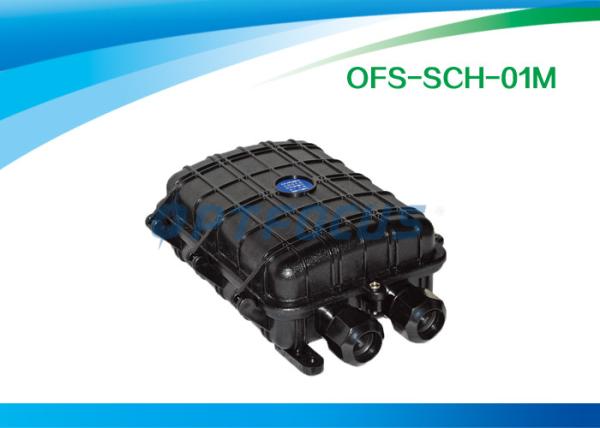

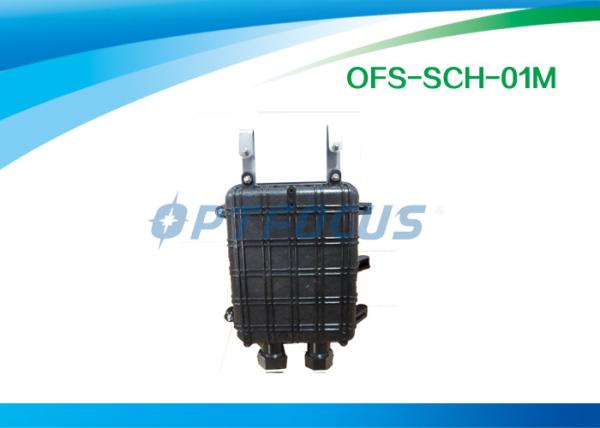

Handhold Fiber Optic 96 Cores Splice Closure 1 Outlet 1 Inlet 24 Fibers

OFS-SCH-01M

Horizontal Splice Closure

Features:

l Excellent sealing performance, reusable. Protection grade is IP 68.

l Installation Method: wall-mounted, aerial, pipe-lined, manhole

l Feature:

l Easy in operation and good in practicality.

l Inner and external push button can insure good sealing, requirements of cable torque, stretching, pressure, bending.

l Vulcanized sealing can meet the Φ8—Φ14 (mm) optical cable sealing needs with excellent re-package performance.

l The ambient temperature ranges from -40 to +65°C.

Applications

The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhold.

OFS-SCH-01M Fiber Optic Splice Closure Datasheet

Model No.

Size (mm) L×W×H

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Weight (excluding outside box)

OFS-SCH-01M-1

280x200x90 (mm)

96

2(1 in 1 out)

Φ8—Φ14 (mm)

280x200x90 (mm)

OFS-SCH-01M-2

280x200x90 (mm)

96

2(1 in 2 out)

Φ8—Φ14 (mm)

280x200x90 (mm)

Main components

No.

Name of components

Quantity

Usage

Remarks

1

FOSC cover

1 piece

Protecting fiber cable splices in whole

Internal diameter:

205x146 (mm)

2

FOSC bottom

1 piece

Fixing reinforced core, fiber cable and FOST

Internal diameter:

205x146 (mm)

3

Fiber optic splice tray

(FOST)

Max. 4 pieces (bunchy)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy:6,12,24(cores)

4

Integrated seal fitting

1 set

Sealing between FOSC cover and FOSC bottom

5

Port plug

2 pieces

Sealing empty ports

6

Earthling deriving device

1 set

Deriving metallic components of fiber cable in FOSC for earthling connection.

Configuration as per requirement.
