8/16 Ports Gpon Olt Optical Line Terminal Equipment Gpon Onu Device Comaptible Huawei5608t Gpon Technolgoy

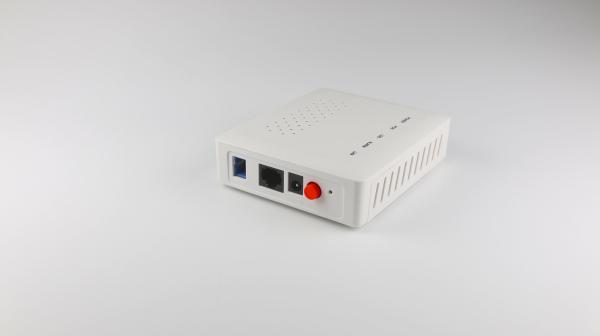

1GE Ethernet ports GPON ONU for FTTH solution

OFSG511 is GPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators.This box is based on the stable and mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch. It is highly reliable and easy to maintain, with guaranteed QoS for different service.

Technical Specification

LED Information

Quick view

About competibility:

1) This is GPON ONU/ONT which means it fit with GPON OLT.
2) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)

About products and service:

1) Products support both bridge and router.
2) This products is NO branded. If need brand, please chat with us, we support OEM & ODM services
3) Connector: SC/UPC, if need SC/APC, please contact us, we also support.
4) For this model, It's BOSA type. This one is made of BOSA solution
5) Power adaptor originally: EU. Standard (Two round plug). if you need any other standards please note us when you place the order, we will suppy accordingly.
6) Warranty: 1 year.

Notification:
About purchasing and shipping:

1) Products are in stock. Contact us and you will buy and ship directly.
2) Shipping cost is depend on address and nation. Please contact us to check the further cost.
3) Every carton includes 64 pcs of ONU device (Neutral type). Purchase order started with one carton.
4) Shipping is clearly through express. There will be a little bit delay of status updating. Please be patient. Deliver time is about 5-10 workdays.
5) Please do your best to cooperate with express company to do custom clearance. If it result in any delay or return back, seller do not take any responsiblity.

Order Information

Products details

Product Feature

• Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

• Completely compatible with GPON international standard IEEE802.3ah/802.3-2005

• Support China Telecom GPON CTC3.1 standard and expand OAM

• Support DBA reporting mechanism request

• Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah

• Support to save configured parameters if power down

• Support to configure the work mode at the user port

• Support MDI-MDIX automatic-detection at the user port.

• Support access authentication based on serial number

• Support access authentication based on MAC address

• Support 802.1Q VLAN

• Support traffic rule to modify the related priority.

• Support to restore the factory settings

• Support the remote reset and reboot

• Support dying gasp outage alarm

• Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
