300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface
300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface
300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface
300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface
300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface
300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSX622-W
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
50000 pcs / month
Delivery Time :
5-10 days, depend on the quantity
Packaging Details :
1 piece / box
Certification :
CE ISO
Product name :
Dual mode wifi XPON ONU
Fiber connector :
SC/UPC connector
Operating temperature :
-5～+55℃
DC supply interface: :
12V 0.5A
Services :
OEM&ODM
Weight :
0.45kg
box size :
20*14.5*7.8CM
Proudct :
167*119*32mm
Description

1GE+1FE+WIFI Dual Mode XPON ONT FTTH equipment

1GE+1FE Etheernet ports with WiFI WDM CATV XPON ONU for FTTH Solution

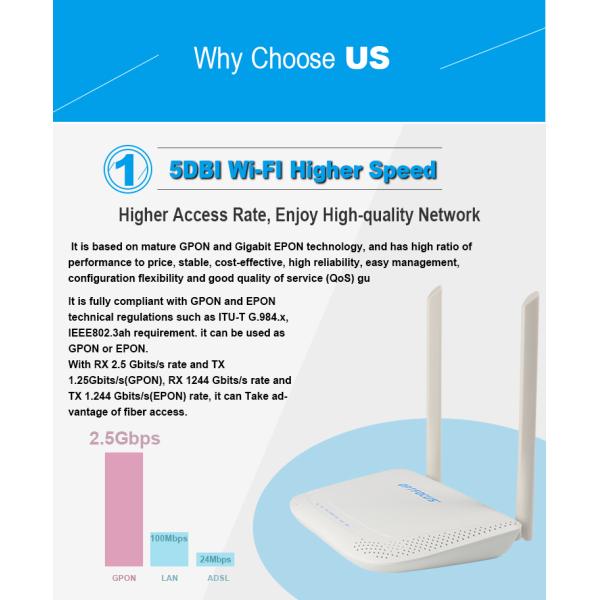

OFSX622-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.

Tehnical specification

Tech features description
antenna

2T2R Mode

5DBI Gain ,Frequency:2.4G
rate 300Mbps PHY rate
encryption methods WFA,WPA,WPA2,WAPI

Tech parameters description

Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 6 pcs
DC supply interface input＋12V 1A
Power ≤7W
Operating temperature -5～+55℃
Humidity 5～95%(non-condensation)
Storage temperature -30～+70℃
Dimension(MM) 167*119*32mm(mainframe)
Weight

0.35Kg(mainframe)

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface


Solution

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface

Packing:

Neatural packing:

0.5KG/PCS, 24PCS/ CTN, 48 * 43 * 38CM, 12KG/ CTN

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface

Related products

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface

Payment Way:

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface

Certification

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface

Company Information

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface

Products Test Machine

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface

Exhibition picture

300Mbps PHY Rate XPON ONUT ONT FTTH Equipment BOSA Type With RJ45 Interface

1GE+1FE+WIFI GPON EPON XPON wifi ONU FTTH device
