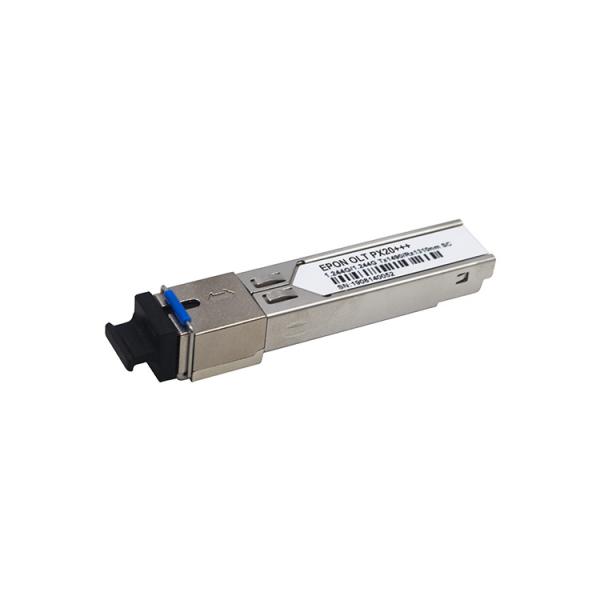

Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module
Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-OLT-ESPX20+++
Place of Origin :
China
MOQ :
1 piece
Price :
USD 28~30 / piece
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
50000 pcs / month
Delivery Time :
5-10 days, depend on the quantity
Packaging Details :
10 piece / plastic bag
Product name :
EPON OLT SFP Transceiver
Fiber connector :
SC connector
Wavelength(nm) :
TX 1310nm，RX 1490nm
Operation case temperature :
0～+70℃
Storage Temp. :
-40~+85℃
Material :
Metal
Services :
OEM&ODM
Optical power :
6~7dbm
Warranty :
1 year
OEM :
Support
Description

SFP Optical transceiver PX20+++ 1490/1310nm 1.25g 20KM SMF SC PON Module

GEPON PX20+++ SFP OLT Transceiver

Feature

SFP with SC/UPC Receptacle Transceiver
1490 nm DFB Tx
1310 nm APD Rx
Digital diagnostics SFF-8472 Compliant
1250 Mbps continuous mode Transmission
1250 Mbps Burst mode receiver Data Rate
Provide fast RSSI function
Operation case temperature: 0~70°C
Complies with RoHS directive (2002/95/EC)

Application

GEPON OLT IEEE802.3ah 1000BASE-PX20++
FTTx
Specification
Parameter Symbol Min. Max. Unit
Storage Case Temp. TSTG -40 85 °C
Operating Case Temp. TC 0 70 °C
Power Supply Voltage VCC 3.1 3.6 V
Total Power Supply Current ICC - 350 Ma

Parameter Symbol Min. Typ. Max. Units Notes
Optical Transmitter Power PO 4.5 6 9 dBm 1
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width △λ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - db
Extinction Rato ER 9 - - db
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802 3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - db 　
Data Rate - - 1.25 - Gb/s 　
Single Ended Data Input Voltage Swing VPP 200 - 1200 Mv 　
Differential Input Impedance ZIN 80 100 120 ohm 　
IX fault Output Voltage- High VOH 2.4 - - V 　
Ix fault Oulput Vollage-Low VOL - - 0.4 V 　
IX Dis Input Voltage. High 20 2 　 - V 　
IX_Dis Input Voltage-Low 08 - - 0.8 V 　


Function Diagram

Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module

Outline Drawing
Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module

Packing:

Neatural packing:

10PCS/Plastic bag , 0.3KG/Plastic bag, 19*16*2CM

Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module

Related products:

Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module

Payment Way:



Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module


Certification
Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module

Company Information
Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module
Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module

Products Test Machine
Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module

Exhibition picture
Durable SFP Optical Transceiver 1490nmTx 1310nmRx 1.25GTx 20km SMF SC PON Module

SFP Optical transceiver PX20+++ 1490/1310nm 1.25g 20KM SMF SC PON Module
