Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-DS-20
Place of Origin :
China
MOQ :
300 pcs
Price :
7 usd per unit
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
7 days after deposited
Packaging Details :
Box/Carton
Certification :
CE ISO
Keyword :
Media converter
Data Rate :
100M
Fiber port :
1*100M SC
Distance :
2/20/40/60/80/120km optional
Wavelength :
1310nm
Working Temp :
0-55 deg
Storage Temp :
-22 - 75 deg
Warranty :
1 year
Description

Optical Converter 1310nm 1*100M SC to 1*10/100M RJ45 power consumption 2.5W Fiber Media Converter 120km

Fiber Media Converter Description

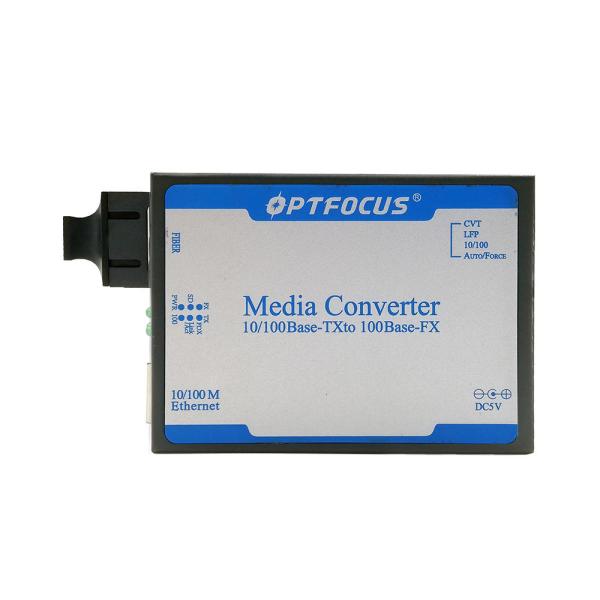

The OFS-DS-20 Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.

The converters can be used as a stand-alone unit or as a slide-in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis.

We are very happy to have you in touch and help to !

Fiber Media Converter Technical Specifications

Product Name 10/100M Media Converter
Product Model OFS-DS-20
Connector Dual Fiber: 1* 100Mbps,SC/ST/FC Optional
RJ45: 1*10/100Mbps,Auto MDI/MDI-X
Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media

Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)

Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding Mode Store-and-Forward
Forwarding Rate: 1488000pps/port
Operating standard IEEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power external

Input:AC 100~250VOutput:DC 5V 1A ,(default).

or Input:DC:-36V~-72V；Output:DC 5V 1A .(Optional)
USB power supply(Optional).
Power consumption 2.5W
LED Power, Link/Act,TX 100,FDX, Link/Act.
Working Environment

Working temperature: -10～55℃ ;

Storage temperature: -20～75℃

Relative Humidity: 5%~95 %( no condensation)

Fiber Media Converter Other Specification

Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List

1× Media Converter

1×User Manual/Certificate of quality/Warranty card

1×power adapter
MTBF 100,000 hours
Weight & Size

Product Weight: 0.5 KG

Packing weight: 1.1 KG

Product size (L×W×H): 94.5*70*26mm

Packing size(L×W×H):215*138*56mm
Warranty 1-years

DIP Switch:

DIP Switch Dip Function

TP

 AUTO 1 TP at auto-negotiation(default)
FORCE Force TP at 10M or at half duplex
100 2 TP at 100M (default)
10 TP at 10M when TP at Force
FDX 3 TP at full duplex(default)
HDX TP at half duplex when TP at Force
LFP DIS 4 Disable Link Fault Pass-Through(default)
LFP Enable Link Fault Pass-Through
