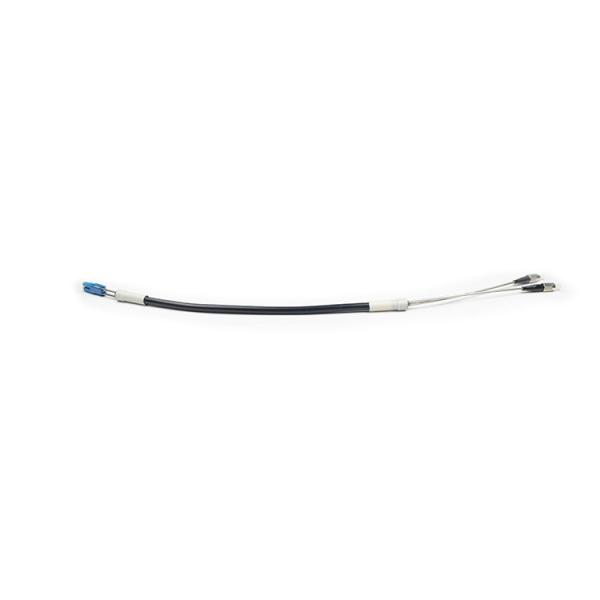

Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
Specifications
Brand Name :
Neutral
Model Number :
CPRI
Certification :
CE
Place of Origin :
China
MOQ :
1000 meters
Price :
USD 0.1~3/PIECE
Payment Terms :
L/C, T/T, Western Union, Paypal and so on
Supply Ability :
50000 pcs / month
Delivery Time :
5-10 days, depend on the quantity
Packaging Details :
Factory standard package
Application :
For connection between distribution box and RRH
Connector type :
LC
Cable material :
LSZH
Storage temperature :
-20~+70℃
Endurance :
500 matings
Humidity :
+40°C at 93%, 96h duratio
Description

ftta cpri cable for RRU

Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.

Features
1. Easily add/install jumper cables for a future expansion.
2. Low insertion loss and added loss.
3. Height of attenuation.
4. Flexibility with small bending radius and excellent cable routing properties.
5. End-face geometry and quality superior than IEC and Telcordia standards.
6. The material in the jumpel cable are all-weather and UV-resistant.
7. Mechanical performance: IEC 61754-20 standard.
8. RoHS and REACH materials compliant.
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU
PRODUCT PARAMETERS

TypeSM-UPCSM-APCMM-UPC
TypicalMAXTypicalMAXTypicalMAX
Insertion loss≤0.1≤0.3dB≤0.15≤0.3dB≤0.05≤0.3dB
Return loss≥50dB≥60dB≥30dB
Durability500 mating cycles
Working temperature-40 to + 85℃









Connector Types

TypeReferenceNote

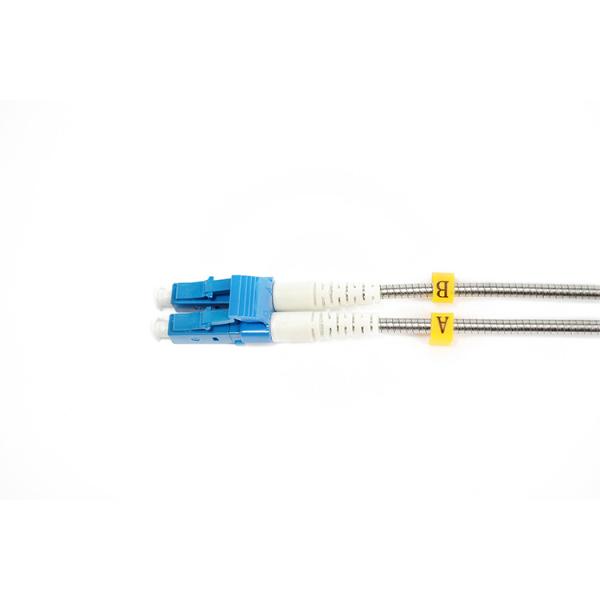

LC

IEC 61754-20

Single mode duplex

APC: Green connectors , Green boots UPC: Blue connectors , White boots
Multimode duplexUPC: Grey Connectors , White boots


Dimensional Diagrams
CPRI LC Outddoor cable Assemblies
Multimode Duplex LSZH SM UPC Ftta Cpri Cable For RRU

Patch cord versions

Jumper tolerance requirement
Overall length (L) (M)length of tolerance(CM)
0＜L≤20+10/-0
20＜L≤40+15/-0
L＞40+0.5%L/-0


Optical Characteristics

Item

Parameter

Reference

Single modeMultimode
Insertion lossTypical value≤0.15dB;Maximum≤0.30Typical value≤0.15dB;Maximum≤0.30IEC 61300-3-34

Return loss

≥ 60dB (APC);

≥ 50dB (UPC)

≥30dB (UPC)

IEC 61300-3-6


Mechanical Characteristics

TestConditionsReference
Endurance500 matingsIEC 61300-2-2
VibrationFrequency: 10 to 55Hz, Amplitude: 0.75mmIEC 61300-2-1
Cable retention400N (main cable); 50N (ranch part)IEC 61300-2-4
Strength of coupling mechanism80N for 2 to 3mm cableIEC 61300-2-6
Cable torsion15N for 2 to 3mm cableIEC 61300-2-5
Fall10 drops, 1m drop heightIEC 61300-2-12
Static lateral load1N for 1h (main cable); 0.2N for 5min (ranch part)IEC 61300-2-42
Cold-25°C, 96h durationIEC 61300-2-17
Dry heat+70°C, 96h durationIEC 61300-2-18
Change of temperature-25°C to +70°C, 12 cyclesIEC 61300-2-22
Humidity+40°C at 93%, 96h durationIEC 61300-2-19
