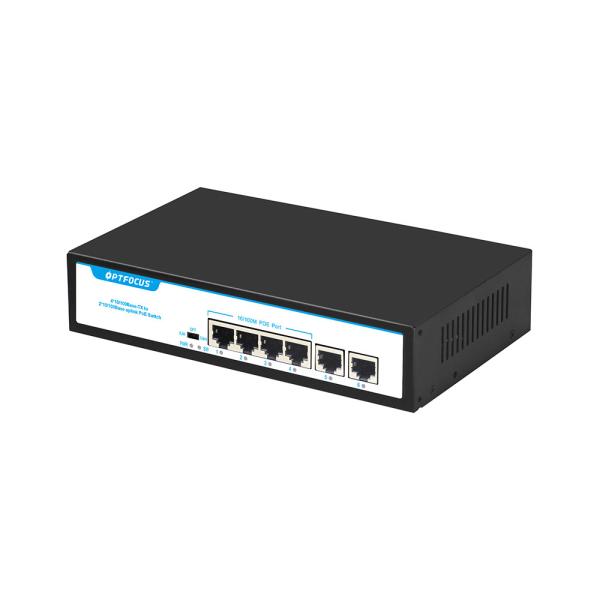

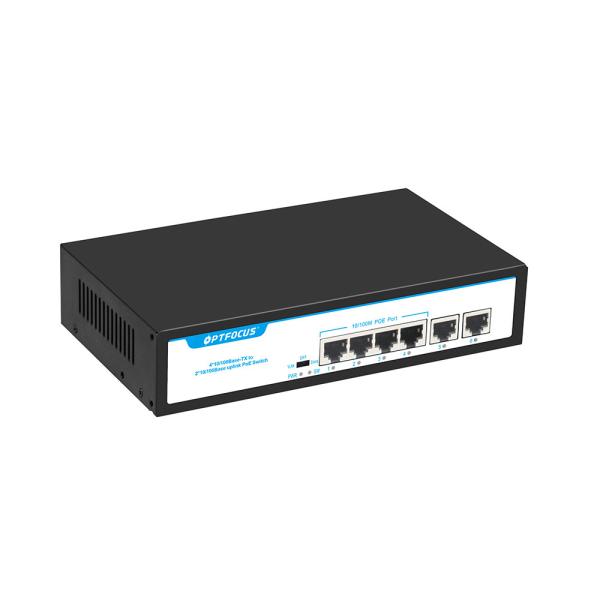

DIN Rail 1.2Gbps FTTX 100M PSE DC52V 4 Port POE Switch
DIN Rail 1.2Gbps FTTX 100M PSE DC52V 4 Port POE Switch
DIN Rail 1.2Gbps FTTX 100M PSE DC52V 4 Port POE Switch
DIN Rail 1.2Gbps FTTX 100M PSE DC52V 4 Port POE Switch
DIN Rail 1.2Gbps FTTX 100M PSE DC52V 4 Port POE Switch
DIN Rail 1.2Gbps FTTX 100M PSE DC52V 4 Port POE Switch
DIN Rail 1.2Gbps FTTX 100M PSE DC52V 4 Port POE Switch
DIN Rail 1.2Gbps FTTX 100M PSE DC52V 4 Port POE Switch
Specifications
Brand Name :
ＯＰＴＦＯＣＵＳ
Model Number :
OFS-PE-DT6
Certification :
ＣＥ　ＲｏＨＳ　
Place of Origin :
Ｃｈｉｎａ　
MOQ :
5
Price :
12－18.5　ｐｅｒ　ｐｉｅｃｅ　
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000　ｐｉｅｃｅｓ　ｐｅｒ　ｍｏｎｔｈ
Delivery Time :
5－15　ｗｏｒｋｉｎｇ　ｄａｙｓ　
Packaging Details :
ｓｔａｎｄａｒｄ　ＰＥ　ｂａｇ　ａｎｄ　ｃａｒｔｏｎ　
Ｐｒｏｄｕｃｔ　ｎａｍｅ　 :
4 Port POE Switch 100M PSE +2Ports 100M up link POE Switch
Use :
FTTX
Power Supply: :
Input Voltage: DC52V (48~55V)
MTBF :
100,000 hours
Installation :
DIN-Rail or Wall mounts,Optional
Description

OPTFOCUS 4 Port POE Switch 100M PSE +2Ports 100M up link POE Switch Compatible With Huawei Zte Vsol

Product Brief Introduction:

OFS-PE-DT6

4ports100M PSE +2Ports 100M up link POE Switch

Description:

OFS-PE-DT6 Ethernet switch with 6*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernetnetwork communication solution with a high performance-price ratio.

OFS-PE-DT6’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP phone, wireless AP and other PoE supported devices.. Power input also chooses industry-standard types of power.

Main Features:

6 Port 10/100Mbps with Auto Uplink™
4 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
Automatic MAC address learning and aging
10/100Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports10/100Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation ,Optional.
Supports Broadcast Storm Control

Supports Relay output for power failure
Excellent heat elimination without cooling fan.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh environment or higher requirement

-10℃-55℃operating temperature range.

Details Images

Technical Data Sheet:

Product Name 6-port 10/100Mbps Ports
Product Model OFS-PE-DT6
Network Protocols IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3x;
Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)
Performance Specification Bandwidth: 1.2Gbps
Packet Buffer Memory:1M
Packet Forwarding Rate:148800pps/port
MAC Address Table:1K /port

PoE Specification

 PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports: 4 port support PoE

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)
PoE port Auto detect AF/AT devices
Output Voltage: DC48V
Power Pin Assignment:4/5+;7/8-
Power Type: End-span( Mid-span optional)
Forwarding Mode Store-and-Forward
LED Indicators Power: PWR; Link;POE ; Link/Act
Power Supply Input Voltage: DC52V (48~55V)

Solution:

Product You May Also Want To Check:

View of the Company:

Certifications:

Exhibition & Trade Show:

Review From Our Clients:

FAQ:

1.What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.

2. What is your payment terms?

Trade assurance ,T/T, West Union or Cash.

3. What is your warranty time

We promise 2 years’ warranty for all products shipped from us.

4. What is the lead time?

For usual products. We keep stock, could ship 1-3 days after PO. For big quantity and special products. Please check lead time with our sales representative.

5. Could I use our own logo and label?

Yes, we could provide a OEM service and make the products with your own label.
