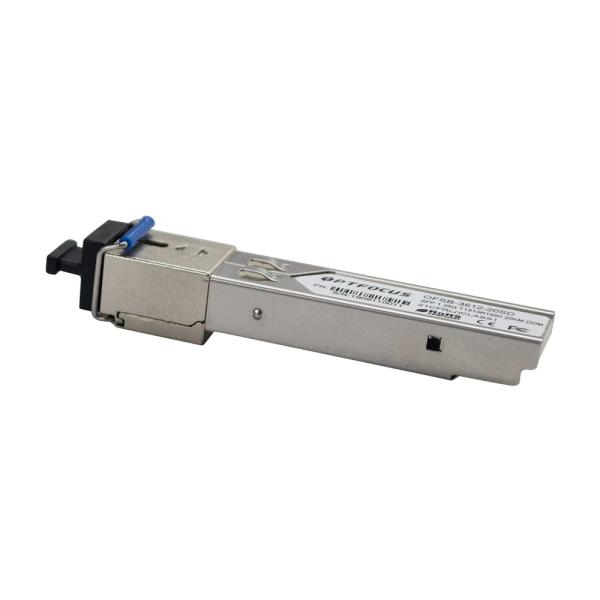

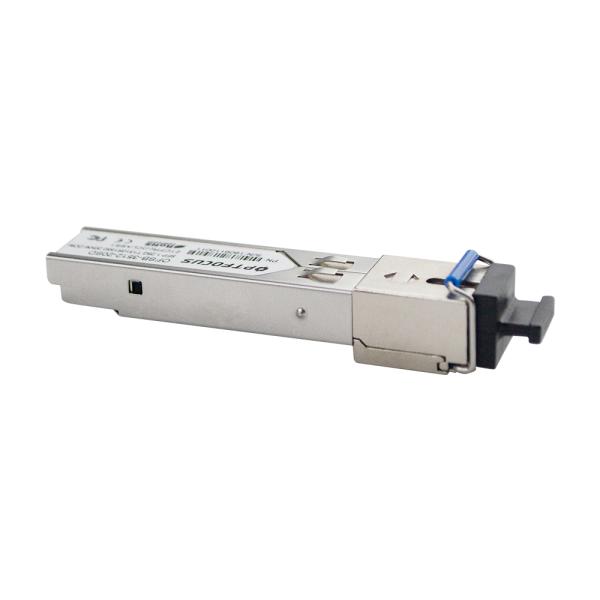

BIDI Dual Fiber LC GBIC SFP Optical Transceiver 1.25G 20km
BIDI Dual Fiber LC GBIC SFP Optical Transceiver 1.25G 20km
BIDI Dual Fiber LC GBIC SFP Optical Transceiver 1.25G 20km
BIDI Dual Fiber LC GBIC SFP Optical Transceiver 1.25G 20km
BIDI Dual Fiber LC GBIC SFP Optical Transceiver 1.25G 20km
BIDI Dual Fiber LC GBIC SFP Optical Transceiver 1.25G 20km
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSB-3512-20LDB
Place of Origin :
China
MOQ :
1000 pcs
Price :
3.8 usd per unit
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
7 days
Packaging Details :
plastic bag/ box / carton
Keyword :
SFP module
Rate :
1.25G
Fiber :
BIDI/single fiber port
Connector :
LC / SC optional
Material :
Iron casing
Distance :
20km
Working Temp :
0 ~ 70 Deg
Warranty :
1 year
Description
Mini GBIC Small form SFP 1.25G 20km 40km 80km 100km BIDI or Dual Fiber LC
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA.
Absolute Maximum Ratings
Parameter
Symbol
Min
Max
Unit
Supply Voltage
Vcc
-0.5
4.5
V
Storage Temperature °C
Ts
-40
+85
°C
Operating Humidity
-
5
85
%

BIDI Dual Fiber LC GBIC SFP Optical Transceiver 1.25G 20km

Features
Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Company Profile

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years’ experience in global sales and services.

Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.

OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.

Our high quality products and outstanding service will help you win more market and customers.

Advantage of our company :

①　National High-tech enterprise certification；

②　Fiber Optical Innovative &production team Over 10 years;

③　Fiber optical active and passive components production Workshop;

④　Strict quality management system;

⑤　Professional One stop supply & service;

⑥　OEM&ODM available;

⑦　Reliable and Timely customer services;
