Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSB-3512-30SD
Certification :
CE & FC
Place of Origin :
Shenzhen， China
MOQ :
1 PIECES
Price :
USD 13.99
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs one month
Delivery Time :
Within 3-8 days after get payment
Packaging Details :
The seller standard export package
Product name :
SFP Optical Transceiver
Wavelength :
1310-1550NM
Distance :
20KM
Application :
FTTH FTTB FTTX Network
Power supply :
3.3V
Connector :
SC
Transmission distance :
20KM
Description

OPTFOCUS 1.25 G SFP Optical Transceiver OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC 20KM 1310-1550NM DDM

SFP Optical Transceiver Details
Model Number:OFSB-3512-20SD Connector:Single SC
Place of Origin:China Distance:20KM
Brand Name:OPTFOCUS Wavelength:1310nm-1550nm
Key Feature1:Shenzhen, China (Mainland) Compatible: Huawei,Cisco,Hp
Key Feature2:SFP Optical Transceiver DDM:With DDM
Key Feature3:1.25G Product status:Stock
Fiber Type: SM

SFP Optical Transceiver Transmitter Characteristics
Parameter Symbol Min. Typ. Max. Units
Optical Transmitter Power P0 6 7.5 11 dBm
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width Δλ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - dB
Extinction Ratio ER 9 - - dB
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802.3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - dB
Data Rate - - 1.25 - Gb/s
Single Ended Data Input Voltage Swing VPP 200 - 1200 mV
Differential Input Impedance ZIN 80 100 120 ohm
Tx_fault Output Voltage- High VOH 2.4 - - V
Tx_fault Output Voltage- Low VOL - - 0.4 V
Tx_Dis Input Voltage- High VIH 2.0 - - V
Tx_Dis Input Voltage- Low VIL - - 0.8 V

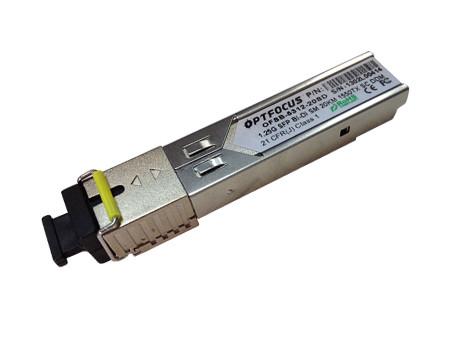

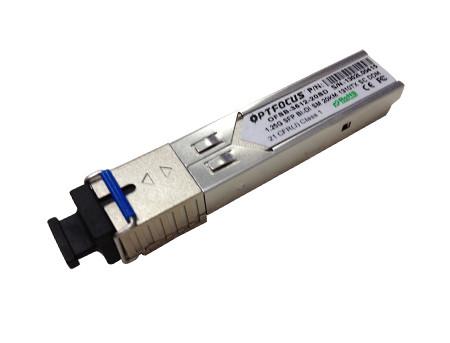

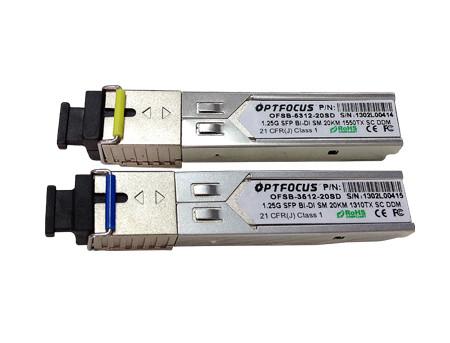

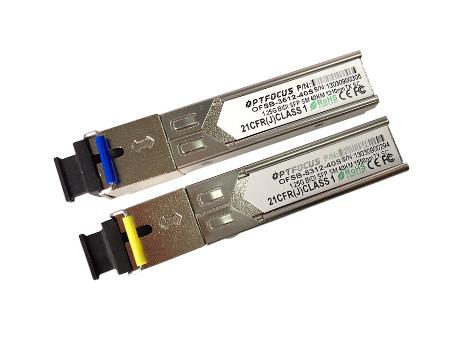

SFP Optical Transceiver image details

OPTFOCUS 1.25 G SFP Optical Transceiver OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC 20KM 1310-1550NM DDM

Company information

OPTFOCUS 1.25 G SFP Optical Transceiver OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC 20KM 1310-1550NM DDMOPTFOCUS 1.25 G SFP Optical Transceiver OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC 20KM 1310-1550NM DDM

Packaging & Delivery (SFP Optical Transceiver)
Selling Units: Single item Single package size: 5.71X0.85X1.34 cm
Single gross weight:0.100 kg

Single gross weight:0.100 k

OPTFOCUS 1.25 G SFP Optical Transceiver OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC 20KM 1310-1550NM DDM

SFP Optical Transceiver Standard Application

ATM SDH PDH SONET Network

Data Communication Network

Telecom Communication Network

FAQ

Q:Do you have MOQ?

A:For stock products,we don't have MOQ. For custom product,we ask for low MOQ.

Q:Can you offer a better price?Any discount?

A:Yes,surely. We’re source factory and providing reasonable price.

Q:What is your warranty period?

A:Different products have different warranties.This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
