10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver
10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver
10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver
10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver
10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver
10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver
Specifications
Brand Name :
OPTFOCUS
Model Number :
OPB-3310G-10
Certification :
CE
Place of Origin :
Shenzhen， China
MOQ :
1 pairs
Price :
USD 13.98-14.98
Payment Terms :
L/C, T/T, Western Union,PAYPAL
Supply Ability :
10000 pcs one month
Delivery Time :
Within 3-6 days after get payment
Packaging Details :
The seller standard export package
Product name :
10GB SFP+BIDI Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Transceiver
Wavelength :
TX1330-1270RX nm
Distance :
10Km
Warranty :
3 Years
Application :
FTTH FTTB FTTX Network
Keywords :
sfp transceiver manufacturers
Description

10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver

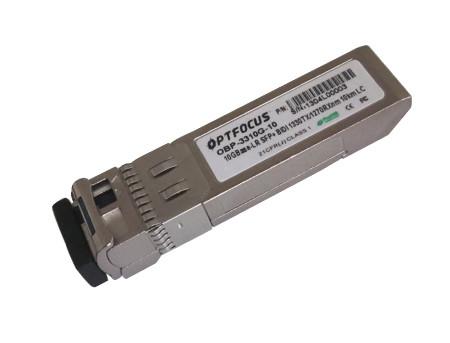

SFP Optical Transciever image details

10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver

10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver

SFP Optical Transceiver Details

Model Number: OPB-3310G-10 Connector:LC Connector
Type: Fiber Optic Transceivers Diagnostics:digital
Place of Origin: Shenzhen, China TX Power(dBm):0~+4
Brand Name: OPTFOCUS Temperature:0°C~70°C
Network:Wired LAN Voltage supply:3.3v
Wavelength:TX1330-1270RX nm RX Sens(dBm):<=24
Data Rate:10Gb Use:FTTX
Working Distance:10km Certification:FCC & CE

SFP Optical Transceiver Transmitter Characteristics
Parameter Symbol Min. Typ. Max. Units
Optical Transmitter Power P0 6 7.5 11 dBm
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width Δλ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - dB
Extinction Ratio ER 9 - - dB
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802.3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - dB
Data Rate - - 1.25 - Gb/s
Single Ended Data Input Voltage Swing VPP 200 - 1200 mV
Differential Input Impedance ZIN 80 100 120 ohm
Tx_fault Output Voltage- High VOH 2.4 - - V
Tx_fault Output Voltage- Low VOL - - 0.4 V
Tx_Dis Input Voltage- High VIH 2.0 - - V
Tx_Dis Input Voltage- Low VIL - - 0.8 V

Company information

10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver

10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver

SFP Optical Transceiver Certification

10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver

SFP Optical Transceiver Standard Application

  • ATM SDH PDH SONET Network
  • Data Communication Network
  • Telecom Communication Network

Packaging & Delivery(SFP Optical Transceiver )
Selling Units: Single item Single package size: 5.71X0.85X1.34 cm
Single gross weight:0.100 kg Single gross weight:0.100 k

10GB SFP+BIDI SFP Optical Transceiver TX1330-1270RX nm 10km LC connector SFP Optical Transceiver

FAQ

1. What is the warranty on the parts you sell?
One year's warranty for all the products,even 3 years' warranty for some kinds.

2. What payment methods do you offer?
T/T, Western Union, MoneyGram,cash,PayPal,etc. are available.

3. What is lead time?
1-5 working days for standard products.

Q.what can you buy from us?
A:ONU,OLT,MC,POE,SWITCH,PASSIVE COMPONENT, SFP OPTICAL TRANSCEIVER
