12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSX624-VWU
Certification :
ISO9001
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 Piece
Price :
USD15-25/UNIT EXW CHINA
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
50000 pcs per month
Delivery Time :
10 workdays
Packaging Details :
40pcs/box
Up-link interface :
1 XPON interface，SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type：SC/UPC
Mode :
XPON
Optical power :
0~4 dBm
Sensitivity :
-28 dBm
Indicator LED :
9 pcs
Operating temperature :
-5～+55℃
Dimension（MM） :
188*125*35mm（mainframe）
Warranty :
1 Years
Keywords :
huawei 8546m router
Description

12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router

OFSX624-VWU

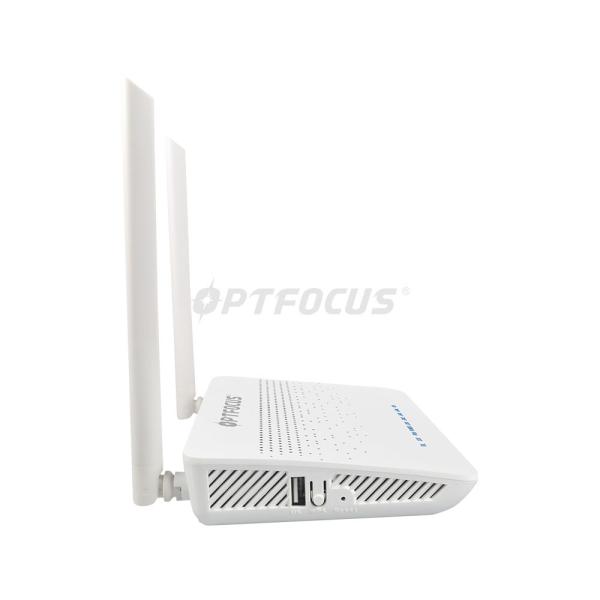

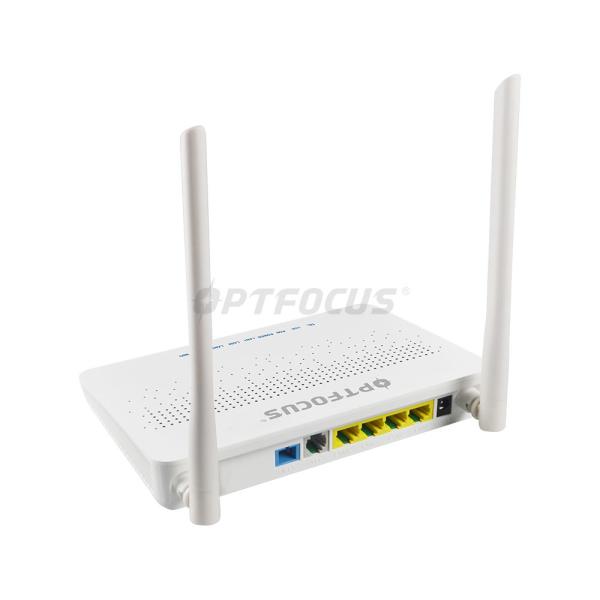

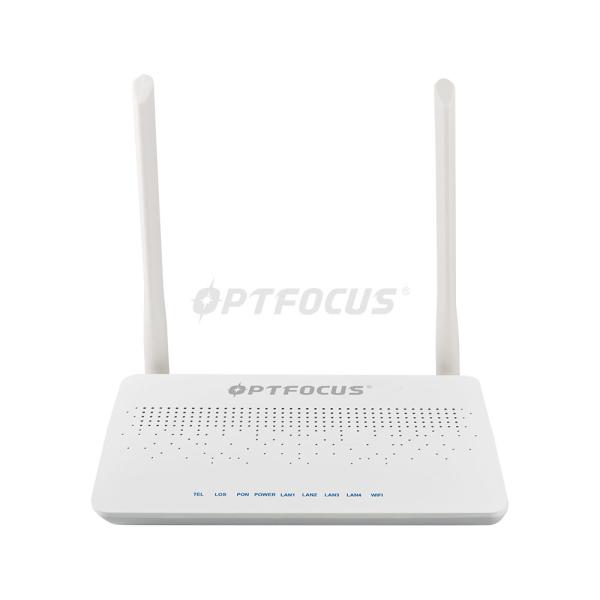

1GE+3FE Ethernet ports with Wifi USB VOIP XPON ONU for FTTH solution

Description:

OFSX624-VWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.

12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router

BASIC CHARACTERISTICS:

Tech parameters description

Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 9 pcs
DC supply interface input＋12V 1.5A
Power ≤10W
Operating temperature -5～+55℃
Humidity 10～85%(non-condensation)
Storage temperature -30～+70℃
Dimension(MM) 188*125*35mm(mainframe)
Weight 0.5Kg(mainframe)

WIFI CHARACTERISTICS:

Tech features description
antenna

2T2R Mode

5DBI Gain ,Frequency:2.4G
rate 300Mbps PHY rate
encryption methods WFA,WPA,WPA2,WAPI

VOIP TECHNICAL FEATURE:

Tech features description
Voltage and Current Monitoring The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC

CERTIFICATES:

12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router

RELATED PRODUCTS:

12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
​

COMPANY INFORMATION:

12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
EXIHIBITION SHOW:
​12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
CONTACT US:
For more details, such as OEM ODM, Price and shipping. Please contact our sales team without hesitation. Our passionated teamate will serve you nicely.
​

12 years factory supply 4ge+1voip+1usb compare with huawei onu 8546m router
