Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-PE-GT2DT8
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiated
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
10000pcs one month
Delivery Time :
within 1-3 days after get payment
Packaging Details :
The seller standard export package
Color :
Black
Camera :
Adjustable Position
Operation Temperature :
0~40℃
Relative Humidity :
10～65%
Description

Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced
auto-sensing algorithm gives power to 802.3af/at end devices,
In addition, the PoE switch automatically determines PoE
requirements, speed, duplex, and cable type using Auto
Uplink. Easy to operate and reliable.

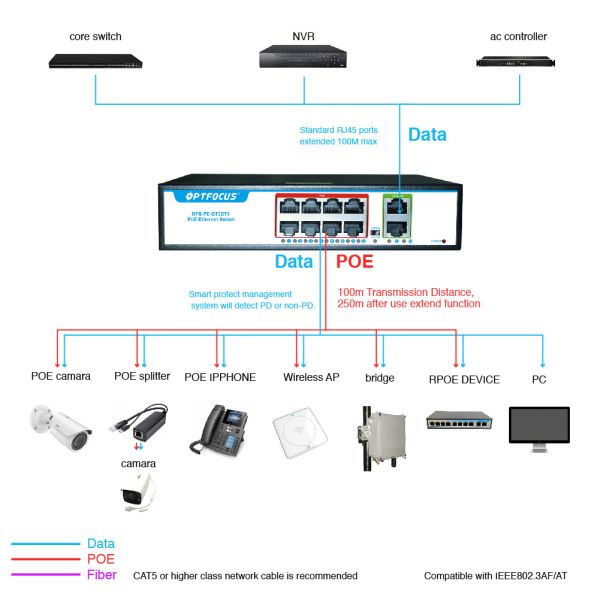

The PoE switch is ideal for powering PoE devices such as
IP cameras, WLAN access point, IP phones, office access
control systems, and other PD devices and offers a line of high
quality products that provide a total solution for Ethernet
app

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

8*10/100mbps POE port,2*10/100mbps UP-Link port
100m Transmission Distance,250m after use extend function
Compatible with IEEE802.3AF/AT
The specification of the built-in power supply: 120W(52V 2.3A)
All port supported by MDI/MDIX auto flip and self negotiation
Supply 8pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
Add high level lightning protection device, up to 6000V.
Each port max. power supply reached 30W.

8*10/100mbps POE port,2*10/100/1000mbps UP-Link port

100m Transmission Distance,250m after use extend function

Compatible with IEEE802.3AF/AT

Whole Power:120W(52V 2.3A)

All port supported by MDI/MDIX auto flip and self negotiation

Supply 8pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

Each port max. power supply reached 30W.

Low heat design, safe and reliable, high stability

Application:² Wireless Access Point² IP Camera

² IP Phone² Computer Networks

Product Name 8 Port GIGABIT ACTIVE POE Switch(8+2)
Product Model OFS-PE-GT2DT8
DATA PIN 1/2+,3/6-
Power Supply Type Build In, Both 1/2+,3/6- and 4/5+7/8-
PoE Output Power 15.4W/30W
Connector 8*10/100mbps POE port,2*10/100/1000mbps UP-Link port
Network Medium Cat5 (UTP) or more
Technology
Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
PoE power

30W per port(IEEE802.3af/at).

Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)
Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Address database Table Size 2K MAC address
Buffer memory 48Kb embedded memory per unit
Backboard Bandwidth 5.6G
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power
Input 52V DC input 110V-250V
PoE power consumption 15.4W per port(IEEE802.af)
Overload current protection Present
Mechanical
Casing Metal
Installation Desktop/Rack mounting
Interface
LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error
Environment specification
Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Regulatory Approval
ISO Manufactured in ISO9001 facility
Safety CE/CCC
Warranty 2 years
Dimensions 202*140*45mm(L*W*H)
Weight 1.1Kg

Company Information

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.

Advantage of our company :

1 National High-tech enterprise certification;

2 Fiber Optical Innovative &production team Over 10 years;

3 Fiber optical active and passive components production Workshop;

Factory OEM 8 Port Ethernet POE Switch 8*10/100mbps POE Port+2*10/100/1000mbps UP-Link Port for CCTV

FAQ:

1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3.what can you buy from us?
Switch,GPON ONU,EPON ONU



4. How many days can shipment after ordered?

According to the quantity you order, we will reply you the shipment day


5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
