Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-PE-DT10
Certification :
CE ROHS FCC
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
50000 pcs per month
Delivery Time :
3 working days

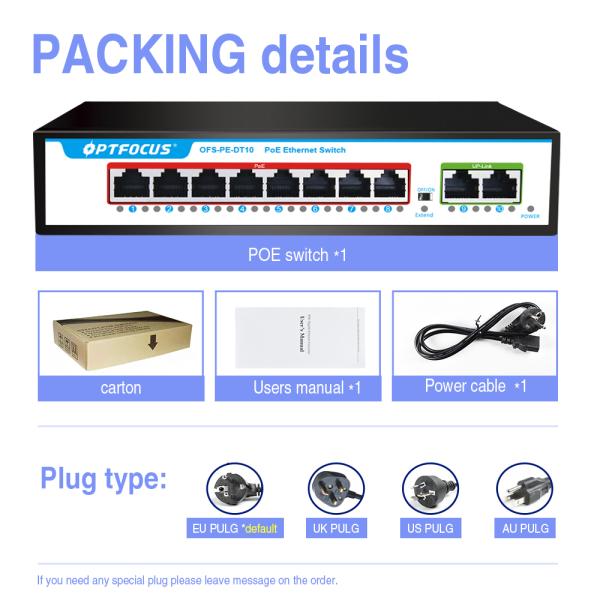

Packaging Details :
1 pcs per box
PoE Output Power :
15.4W/30W
Network Standards :
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet
Backboard Bandwidth :
2G
Network Medium :
Cat5 (UTP) or more
Input :
AC:110V-240V
Dimensions :
202*140*45mm(L*W*H)
Weight :
1.1kg
Address database Table Size :
1K MAC address
Description

OEM ODM factory sales POE network switch 8*10/100mbps POE port,2*10/100mbps UP-Link port

for NVR ISP FTTH CCTV IP camera

Features

The PoE switch provides power and data from a single
point, using Power over Ethernet (PoE) over a single Cat-5
cable. It can be used for any 10/100Mbps link and supply
industry-standard IEEE 802.3af/at power. Advancedauto-sensing
algorithm gives power to 802.3af/at end devices,
In addition, the PoE switch automatically determines PoE
requirements, speed, duplex, and cable type using Auto
Uplink. Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as
IP cameras, WLAN access point, IP phones, office access
control systems, and other PD devices and offers a line of high
quality products that provide a total solution for Ethernet
application in different environments
8*10/100mbps POE port,2*10/100mbps UP-Link port
100m Transmission Distance,250m after use extend function
Compatible with IEEE802.3AF/AT
The specification of the built-in power supply: 120W(52V 2.3A)
All port supported by MDI/MDIX auto flip and self negotiation
Supply 8pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port
Add high level lightning protection device, up to 6000V
Each port max. power supply reached 30W
Low heat design, safe and reliable, high stability
Application:² Wireless Access Point² IP Camera
² IP Phone² Computer Networks
Model
OFS-PE-DT10
Connector
8*10/100mbps POE port,2*10/100mbps UP-Link port
Power Supply Type
Build in , 1/2+,3/6-
PoE Output Power
15.4W/30W
DATA PIN
1/2+,3/6-
Network Medium
Cat5 (UTP) or more
Network Standards
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
PoE power
Wiring: Data & power provided over pairs 1/2 and 3/6
Processing types
Store-and-forward
Half-duplex back pressure and IEEE 802.3x full-duplex flow control
Address database Table Size
1K MAC address
Buffer memory
48Kb embedded memory per unit
Backboard Bandwidth
 2G

OEM ODM factory sales POE network switch 8*10/100mbps POE port,2*10/100mbps UP-Link port for NVR ISP FTTH CCTV IP camera
OEM ODM factory sales POE network switch 8*10/100mbps POE port,2*10/100mbps UP-Link port for NVR ISP FTTH CCTV IP camera
OEM ODM factory sales POE network switch 8*10/100mbps POE port,2*10/100mbps UP-Link port for NVR ISP FTTH CCTV IP camera
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer
enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D,
production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products.
We also committed to provide Customized OEM & ODM services to Global communication distributors,
Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around
2,500 Square meter, and owning three production workshops, 9 production lines.
