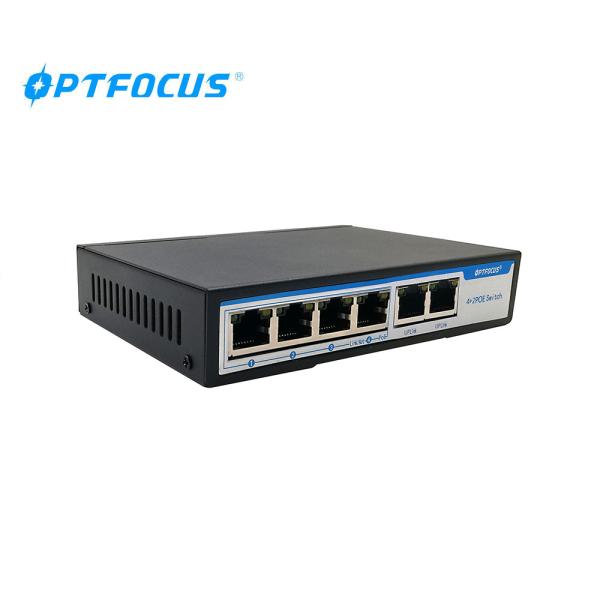

6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M
6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M
6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M
6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M
Specifications
Brand Name :
Optfocus
Model Number :
OFS-PE-DT6-I
Certification :
CE,RoSe
Place of Origin :
china
MOQ :
1 piece
Price :
8USD
Payment Terms :
T/T, Western Union
Supply Ability :
3000 PCS PER MONTH
Delivery Time :
5-12 working days
Packaging Details :
5 pcs per carton box
Date Rate :
10/100M
Color :
black
Connector :
RJ45
Keywords :
POE Network switch
Custom :
Custom logo
Description

OEM and ODM 10/100M reverse 6 Ethernet port POE NETWORK SWITCH

6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M

6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M

Product Name 6-Ports AF PoE Switch with 4 PoE 10/100M Ports and 2 Uplink 100M
Model OFS-PE-DT6-I
Connector Type 4x 10/100M copper cable RJ45 ports(4 PoE 10/100M ports+2 Uplink 100M)
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Bandwidth 1.2Gbps (non-blocking)
Address Database Size 1K
Forwarding Mode Store-And-Forward
Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;

IEEE 802.1af DTE Power via MDI; IEEE 802.3af
LED Display System: power supply; Every Port: connecting, PoE working status
Power Supply Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports Port 1-8 support POE
PoE Port Power 15.4W for each POE port
PoE Standard IEEE 802.3af
Led indicator

Green: Ethernet

Red:PoE

SW:

On: VLAN, 100meters

Flashing: VLAN, 250meters

Off: VLAN Closed,100meters

Flashing: VLAN Closed, 250meters
Working Environment

Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C;

Operating Humidity: 10% ~ 95%, non-condensing
Certification CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance Data transmission distance: 100m, 250m( when on 10M data rate with Cat6.)
Warranty 2year warranty

6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M

6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M

6 Ports AF PoE Network Switch 4 PoE 10/100M Ports 2 Uplink 100M
