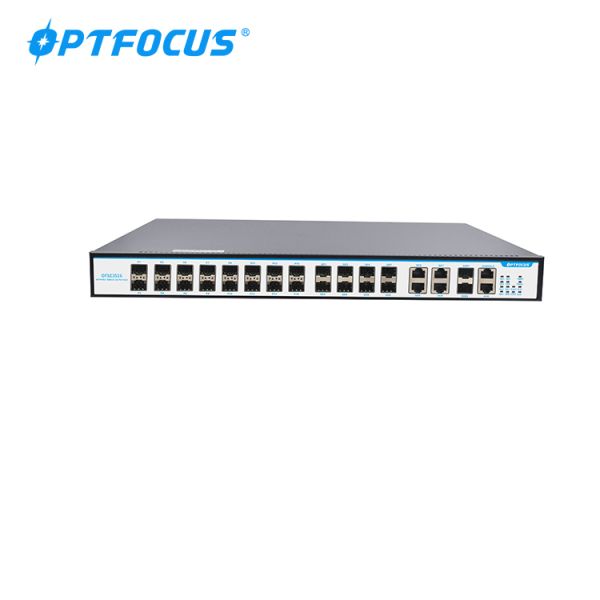

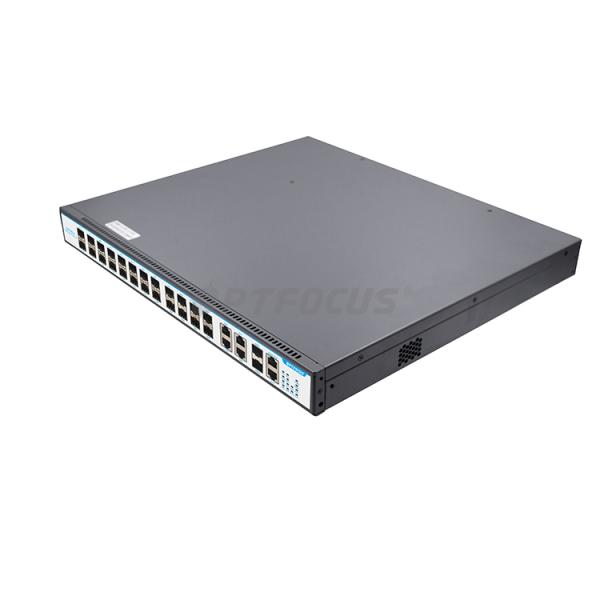

20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSE3516
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD1105 per Unit
Payment Terms :
T/T, Western Union
Supply Ability :
70000 per Month
Delivery Time :
7 days
Packaging Details :
Box/Carton
Product name :
Epon Olt
Distance :
20km
LOGO :
Customized
Connector :
SC,LC
MOQ :
1
Warranty Time :
1 Year
Brand :
OPTFOCUS
Description

Factory OEM/ODM Olt Epon 16 Port Compatible with HUAWEI/ZTE ONU 16*EPON, 4*GE SFP, 4*GE COMBO port, 2*10GE SFP

Product Description

OFSE3516 is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. OFSE3516 possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.

OFSE3516 provides 16 * downlink 1000M EPON ports, 8 * GE Ethernet ports and 2 * 10G uplink ports. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.

Item
Switching Capacity 128Gbps
Forwarding Capacity(Ipv4/Ipv6) 95.23Mpps
Service Port 16*PON, 4*GE SFP, 4*GE COMBO port, 2*10GE/GE SFP
Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC
Power Supply

AC: input100～240V　47/63Hz

DC: input36V～75V
Power Consumption ≤85W
Dimensions (Width x Depth x Height) 442mm×44mm×380mm
Weight (Full-Loaded) ≤3kg
Environmental Requirements

Working temperature: -10°C～55°C

Storage temperature: -40°C～70°C

Relative humidity: 10%～90%, non-condensing

Item

PON Features

IEEE 802.3ah EPON

China Telecom/Unicom EPON

Maximum 20 Km PON transmission distance

Each PON port supports the max. 1:64 splitting ratio

Uplink and downlink triple churning encrypted function with 128Bits

Standard OAM and extended OAM

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON transmit and inspect receiving optical power

PON port optical power detection
L2 Features MAC

MAC Black Hole

Port MAC Limit

16K MAC address
VLAN

4K VLAN entries

Port-based/MAC-based/protocol/IP subnet-based

QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark

PVLAN to realize port isolation and saving public-vlan resources

GVRP
Spanning Tree

STP/RSTP/MSTP

Remote loop detecting
Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring

Security

Features

 User’s Security

Anti-ARP-spoofing

Anti-ARP-flooding

IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication
Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users
Network Security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5

cryptograph authentication

20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port

20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port

Packaging & Shipping

Company Information

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.

Advantage of our company :

1 National High-tech enterprise certification;

2 Fiber Optical Innovative &production team Over 10 years;

3 Fiber optical active and passive components production Workshop;

4 Strict quality management system;

5 Professional One stop supply & service;

6 OEM&ODM available;

7 Reliable and Timely customer services;

20km 16 Port Epon Olt 16 EPON 4 GE SFP 4 GE COMBO Port 2 10GE SFP Port

FAQ:

1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3.what can you buy from us?
Switch,GPON ONU,EPON ONU



4. How many days can shipment after ordered?

According to the quantity you order, we will reply you the shipment day


5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
