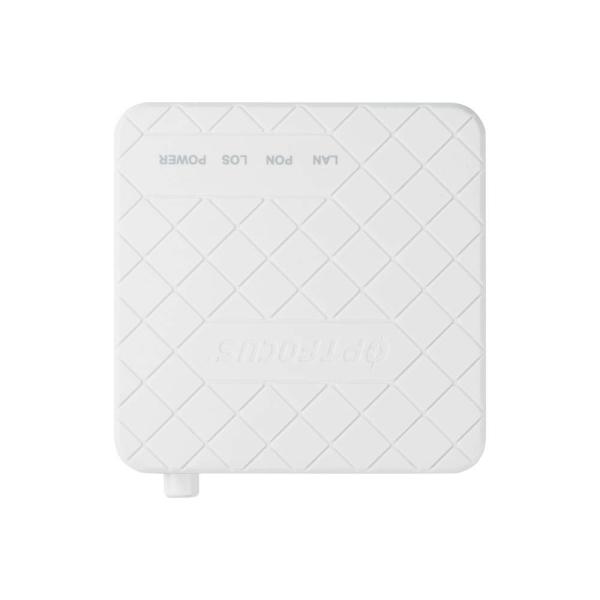

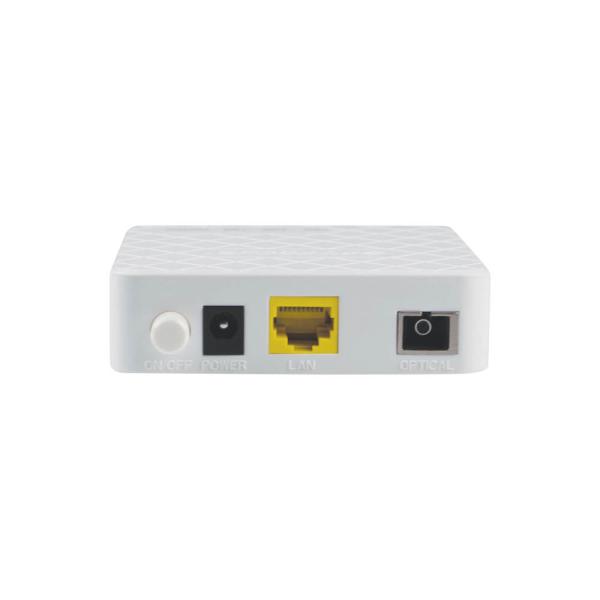

1GE Ethernet ports XPON ONU for FTTH solution

OFSX611 XPON(GPON and EPON dual mode) ONU. it can be used as GPON or EPON. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement.

Quick view

Notification:

About purchasing and shipping:

1) Products are in stock. Contact us and you will buy and ship directly.
2) Shipping cost is depend on address and nation. Please contact us to check the further cost.
3) Every carton includes 80 pcs of ONU device (Neutral type). Purchase order started with one carton.
4) Shipping is clearly through express. There will be a little bit delay of status updating. Please be patient. Deliver time is about 5-10 workdays.
5) Please do your best to cooperate with express company to do custom clearance. If it result in any delay or return back, seller do not take any responsiblity.

About competibility:

1) This is XPON ONU/ONT which means it fit with EPON/GPON OLT.
2) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)

About products and service:

1) Products support both bridge and router.
2) This products is NO branded. If need brand, please chat with us, we support OEM & ODM services
3) Connector: SC/UPC, if need SC/APC, please contact us, we also support.
4) For this model, we have two kind of design, BOSA & SFF. This one is made of BOSA solution ( Chat with us, if you need SFF)
5) Power adaptor originally: EU.Standard (Two round plug). if you need any other standards please note us when you place the order, we will suppy accordingly.
6) Warranty: 1 year.

Technical Specification

Products Feature

• Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
• Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
• Support China Telecom GPON CTC3.1 standard and expand OAM
• Support DBA reporting mechanism request
• Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
• Support to save configured parameters if power down
• Support to configure the work mode at the user port
• Support MDI-MDIX automatic-detection at the user port.
• Support access authentication based on serial number
• Support access authentication based on MAC address
• Support 802.1Q VLAN
• Support traffic rule to modify the related priority.
• Support to restore the factory settings
• Support the remote reset and reboot
• Support dying gasp outage alarm
• Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

LED Information

Order Information

Solution

Packing:

Optofucs brand packing:

1 PCS/Box, 90Boxes/CTN, 48*43*38CM, 17.2KG/CTN

Neutral packing:

1 PCS/Box, 80Boxes/CTN, 48*43*38CM, 15.6KG/CTN

Delivery:

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx,

Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.

Production Workshop

Production Lines

Products Test Machine

Exhibition picture

1.What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.

2. What is your payment terms?

Trade assurance ,T/T, West Union or Cash.

3. What is your warranty time

We promise 2 years’ warranty for all products shipped from us.

4. What is the lead time?

For usual products. We keep stock, could ship 1-3 days after PO. For big quantity and special products. Please check lead time with our sales representative.

5. Could I use our own logo and label?

Yes, we could provide a OEM service and make the products with your own label.
