Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
Specifications
Brand Name :
Optfocus
Model Number :
OFS
Certification :
CE.RosE
Place of Origin :
China
MOQ :
1 pieces
Price :
400 USD
Payment Terms :
T/T, Western Union
Supply Ability :
1000 PCS per month
Delivery Time :
5-14 working days
Packaging Details :
5 pcs per carton box
Keywords :
Terminal Box
Usage :
FTTH
Warranty :
1 years
Description

Waterproof FTTH Fiber Terminal Box 12 Cores from fiber optical equipment manufacturer

Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment

Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment

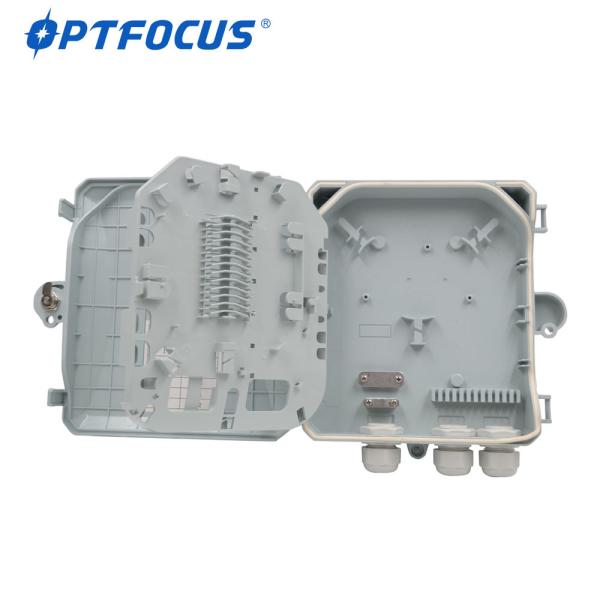

OFS-FTH-412 fiber access termination box is able to hold up to 12 subscribers. It is used as a termination

point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,

splitting, distribution, storage and cable connection in one solid protection box.

Features

Water-proof design with IP-66 Protection level.

Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.

Fiber bend radius control more than 40mm.

Suitable for the fusion splice or mechanical splice.

1*8 Splitter can be installed as an option.

Efficient cable management.

12 ports cable entrance for drop cable.

Configuration

Modle Material Size Max Capacity Weight
OFS-FTH-412B1 PC +ABS

A*B*C(mm)

220*200*50

 SC Mini PLC 1.0kg
12 Ports 1x8(SC)
OFS-FTH-412B2 PC +ABS

A*B*C(mm)

220*200*50

SC

12 Ports

Mini PLC

1x8(SC)

 1.0kg

Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment

Waterproof FTTH Fiber Terminal Box 12 Cores For Fiber Optical Equipment
