Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSX622-CVW
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
45.23 USD per Unit
Payment Terms :
T/T, Western Union
Supply Ability :
70000 per Month
Delivery Time :
7 days
Packaging Details :
Box/Carton
Wavelength :
T1550/R1310
Distance :
20km
Material :
plastic
LOGO :
Customized
Connector :
SC,LC
MOQ :
2
Warranty Time :
1 Year
Description

Factory Price OEM/ODM 1GE+1FE+1POTS+WiFi+WDM+CATV ONU GPON WIFI CATV

Product Description

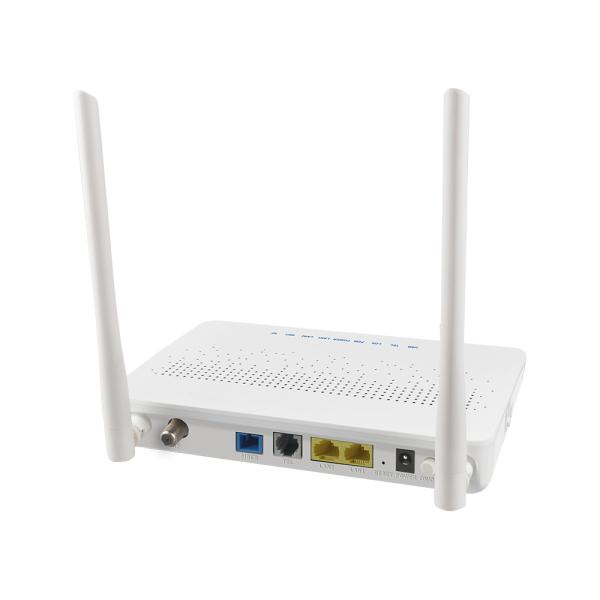

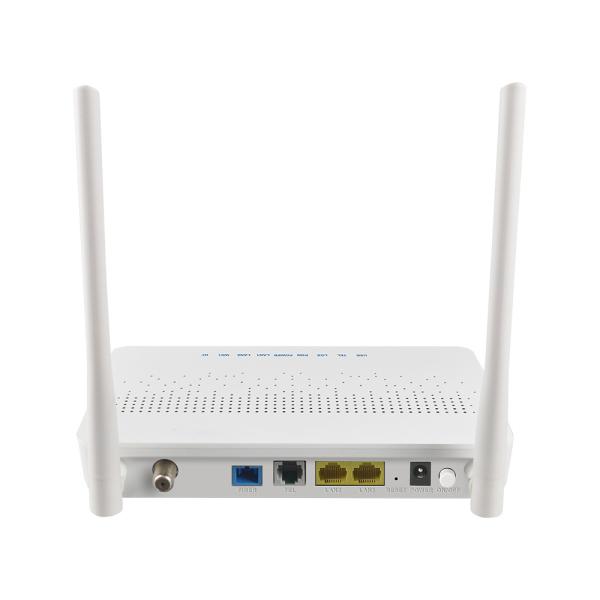

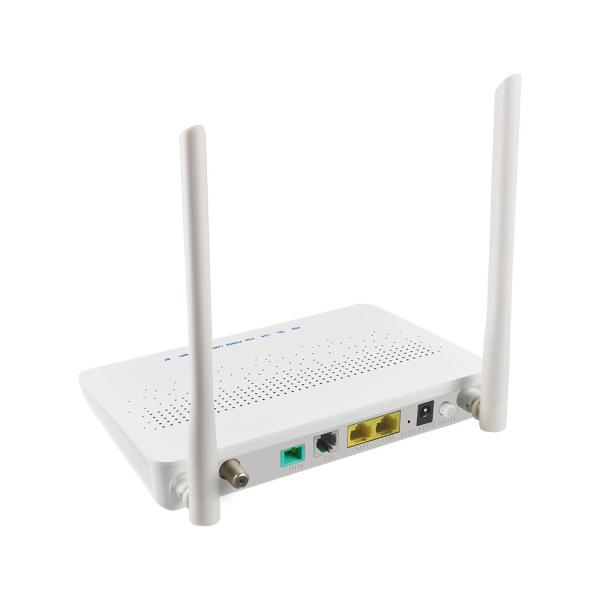

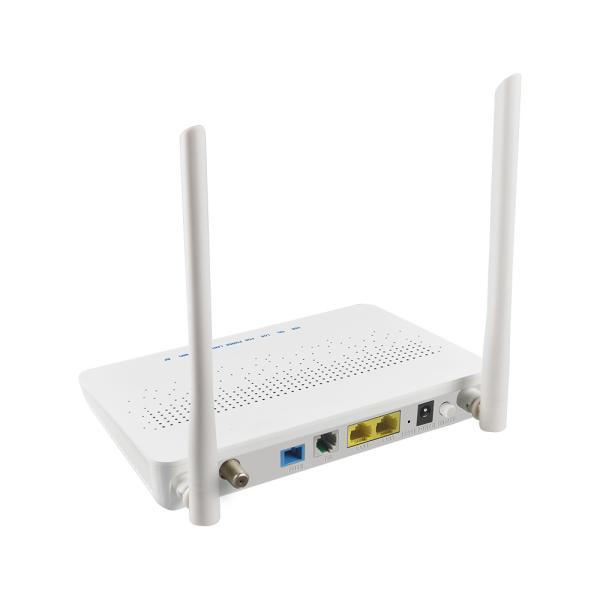

OFSG622-CVW is GPON ONU terminal devices. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement.

Features:

Tech features description
Optical wavelength 1540~1560nm
Optical input range 0~-15 DBm
Optical return loss ≥45 DB
Bandwidth 45~1000 MHz
Flatness 士 1 DB
RF output level ≥72 dBuv
AGC control range 0~-14 DBm
RF Output return loss ≥14 DB
Output impedance 75Ω
CNR ≥50 DB
CTB ≥60 DB
CSO ≥60 DB
Tech parameters description


Up-link interface

1 PON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC
Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490/1550nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 8 pcs
DC supply interface input＋12V 1A
Power ≤8W
Operating temperature -5～+55℃
Humidity 5～95%(non-condensation)
Storage temperature -30～+70℃
Dimension(MM) 167*119*32mm(mainframe)
Weight

0.5Kg(mainframe)



Applications

  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
  • Support China Telecom GPON CTC3.1 standard and expand OAM
  • Support triple churning encryption request
  • Support DBA reporting mechanism request
  • Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
  • Support the remote upgrade and download
  • Support status detection and fault report
  • Support to save configured parameters if power down
  • Support to configure the work mode at the user port
