FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter
Specifications
Brand Name :
OPTFOCUS
Model Number :
10/100/1000M 8*RJ45+2*SFP
Certification :
FCC, ce
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
USD 69.9 1piece
Payment Terms :
T/T
Supply Ability :
4000 piece a month
Delivery Time :
6-14 days
Packaging Details :
box and carton
Use :
FIBER OPTIC NETWORK
Type :
Enterprise Switch
Forwarding Mode :
Store-and-Forward
Power Supply :
Input: AC100 ~ 250V, Output:DC5V 2A.
Environment temperature :
0 ~ +55℃
Storage temperature :
-20 ~ +70℃
Description
Quick Details
Model Number:
OFS-GSF2T8S
Type:
Enterprise Switch
Place of Origin:
Guangdong, China
Brand Name:
OPTFOCUS
Use:
FIBER OPTIC NETWORK
Product name:
8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
Product Model:
OFS-GSF2T8S
Fiber Media:
Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100KM
Forwarding Mode:
Store-and-Forward
LED Indicators:
Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8)
Power Supply:
Input: AC100 ~ 250V, Output:DC5V 2A.
Max power:
5W
Environment temperature:
0 ~ +55℃
Storage temperature:
-20 ~ +70℃
Humidity:
5% ~ 90%
Certification:
FCC, ce
Supply Ability
Supply Ability
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pcs / box
Port
SHENZHEN, GUANGZHOU, XIANGGANG
Picture Example:
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 To be negotiated

Product Description

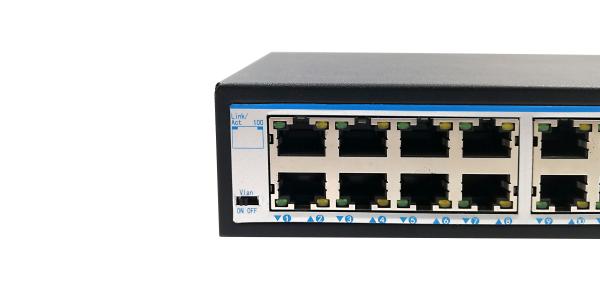

OFS-GSF2T8S

8ports 10/100/1000M +2ports 1000M SFP Fiber Switch

OFS-GSF2T8S series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps SFP Optical fiber ports and 8*10/100/1000Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.

OFS-GSF2T8S’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.

Technical Specifications

Product Name 8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
Product Model OFS-GSF2T8S
Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i

100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab

1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Multi-mode:550M- 2KM
Single-mode: 20/40/60/80/100KM
Performance Specification Bandwidth: 20Gbps
Packet Forwarding Rate:1488000pps/port
MAC Address Table:8K
Forwarding Mode Store-and-Forward
LED Indicators

Power: PWR;FX Link/Act;TP 1000(1-8);

TP Link/Act(1-8)
Power Supply

Input: AC100 ~ 250V,

Output:DC5V 2A
Max power 5W
Environment temperature 0 ~ +55℃
Storage temperature -20 ~ +70℃
Humidity 5% ~ 90%

Features:

  • 8 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
  • Automatic MAC address learning and aging
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports10/100/1000Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation ,Optional
  • Supports Broadcast Storm Control
  • Excellent heat elimination without cooling fan
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City
  • Harsh environment or higher requirement
  • -10℃-55℃operating temperature range.

Chassis Dimension

Package Dimension

More information

Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List

1× Switch

1×User Manual/Certificate of quality/Warranty card

1×power adapter
MTBF 100,000 hours
Weight & Size

Product Weight: 0.5 KG

Packing weight: 1.1 KG

Product size (L×W×H):190mm× 104mm× 29mm

Packing size(L×W×H): 306mm×152 mm× 55mm
Warranty 1-years

Ordering Information:

model Product description
OFS-GSF2T8S 8* 10/100/1000Base-T RJ45,2* 1000M fiber SFP ports, without SFP module,external PS

Our Services
Company Information

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years’ experience in global sales and services. Our company focus on professional R & D, production and sales of xPON access equipments ,FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.

OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win more market and customers.

Company History:
2009, Established with Fiber media converters production line.
2010, Developed Fiber optical switches, Annual capacity about 12000units.
2015, Expand R&D investment. Relocated the factory. Increased splitter and fast connector.
2017, Access to PON products, Increased indoor and outdoor cable and MPO fiber patch cord.
2012, Explore POE switches and industrial switches. Annual capacity reach 20million units.

Advantage of our company :

  1. National High-tech enterprise certification;
  2. Fiber Optical Innovative & production team Over 10 years;
  3. Fiber optical active and passive components production workshop;
  4. Strict quality management system;
  5. Professional One stop supply & service;
  6. OEM&ODM available;
  7. Reliable and Timely customer services.

Production Line

Test Instruments

Exhibition Show

Team culture
