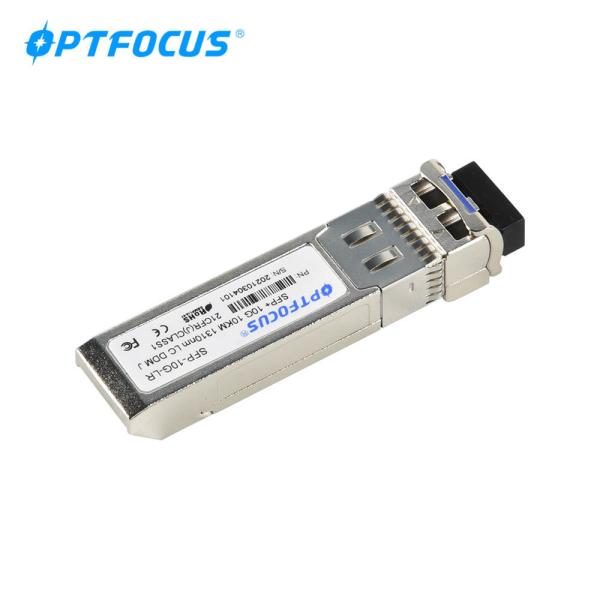

Hot pluggable 10G 1310nm sfp module fiber optical transceiver with DDM

10Gbps SFP+ Optical Transceiver, 10km Reach

Features

* Optical interface compliant to IEEE 802.3ae 10GBASE-LR

* Electrical interface compliant to SFF-8431

* Hot Pluggable

* 1310nm DFB transmitter, PIN photo-detector

* Operating case temperature: 0 to 70 °C

* Low power consumption

* Applicable for 10km SMF connection

* All-metal housing for superior EMI performance

* Advanced firmware allow customer system encryption information to be stored in transceiver

* Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Applications

* 10GBASE-LR at 10.3125Gbps

* 10GBASE-LW at 9.953Gbps

* Other optical links

Product description

This 1310 nm DFB 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for

link length 10km.

The SFP+ LR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output

impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce

differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved

FR4 material or up to about 150mmof standard FR4 with one connector.

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 12 years’experience in global sales and services.

Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services.

OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.

Our high quality products and outstanding service will help you win more marking and customers.

Advantage of our company :

1 National High-tech enterprise certification;

2 Fiber Optical Innovative &production team Over 10 years;

3 Fiber optical active and passive components production Workshop;

4 Strict quality management system;

5 Professional One stop supply & service;

6 OEM&ODM available;
