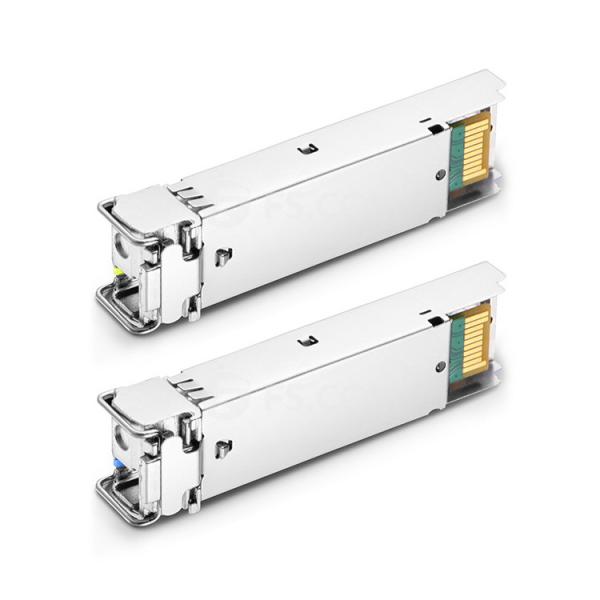

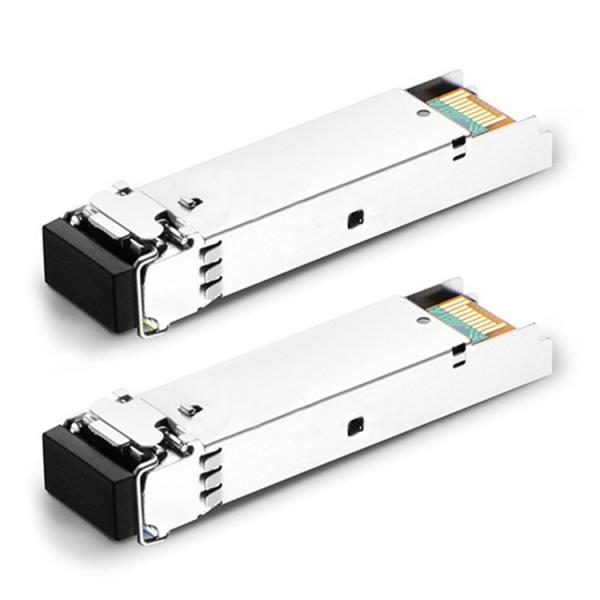

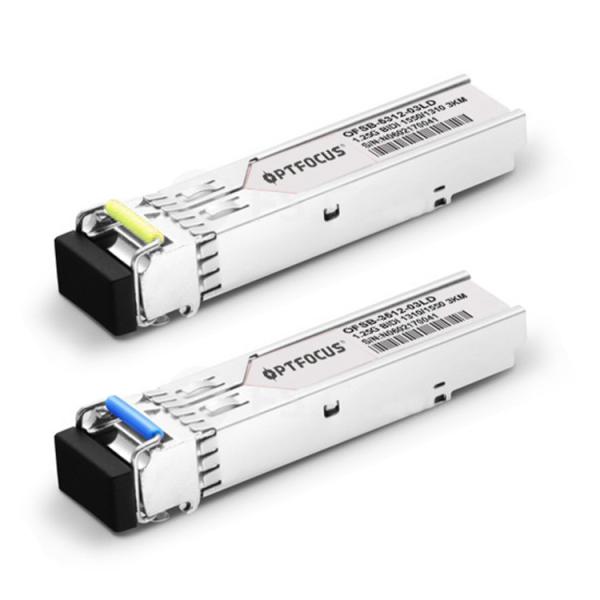

20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSB-5312-03LD
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
4.99 USD per Unit
Payment Terms :
T/T, Western Union
Supply Ability :
70000 per Month
Delivery Time :
7 days
Packaging Details :
Box/Carton
Wavelength :
T1550/R1310nm
Distance :
20km
Material :
stainless steel
LOGO :
Customized
Connector :
SC
MOQ :
2
Warranty Time :
1 Year
Description

Top Quality Factory Price OEM/ODM SFP Module 1.25G SM SC 1310nm 20KM Optical Transceiver

Company Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of he transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a he transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. T trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. T information, please refer to SFP MSA.

Features:

Dual data-rate of 1.25Gbps/1.063Gbps operation

1310nm FP laser and PIN photodetector for 20km transmission

Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

Digital Diagnostic Monitoring: Internal Calibration or External Calibration

Compatible with SONET OC-24-LR-1

Compatible with RoHS

+3.3V single power supply

Operating case temperature: Standard : 0 to +70°C

Applications

Gigabit Ethernet

Fiber Channel

Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems

Product Description:

Features
Up to 155Mbps data-rate
1490nm DFB laser and PIN photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C
Applications
High-speedd storage area networks
Computer cluster cross-connect
Custom higigh-speed data pipes
Inter Rack Connection
Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Ts -40 +85 °C
Operating Humidity - 5 85 %

20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm

Company Profile:

Our company is professional SFP maker! And we have all types of modules for supply. including single mode 3km to 120km, multi mode 550m and speed from 155M, 1.25G, 10G, 40G,100G.
Welcome to contact our sales team and they will offer you a professional introduction about our products!

20KM MSA Fiber Channel SFP Transceiver Module 1.25G SM SC 1310nm

FAQ:

1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Switch,GPON ONU,EPON ONU

4. How many days can shipment after ordered?

According to the quantity you order, we will reply you the shipment day

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
