Tr069 Tarjeta PPPOE Bridge Epon XPON ONU 2.5W 1.25Gbps Onu Sfp Module
Tr069 Tarjeta PPPOE Bridge Epon XPON ONU 2.5W 1.25Gbps Onu Sfp Module
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSE511
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
$12.8-$9.8 per pcs
Payment Terms :
T/T, L/C, Western Union, paypal
Supply Ability :
7000 pcs per week
Delivery Time :
5-7 days
Packaging Details :
80 pcs per carton
Wavelength :
Tx 1310nm, Rx 1490nm
Optical output power :
-1~+4dBm
Optical interface :
SC/UPC connector
Chipset :
zte chipset
Power consumption :
≤2.5W
Dimension :
83mm*83mm*25mm(length*width*height)
Description

High reliability ZTE chipset GPON EPON ONU 1GE Ethernet + 1 PON ONU

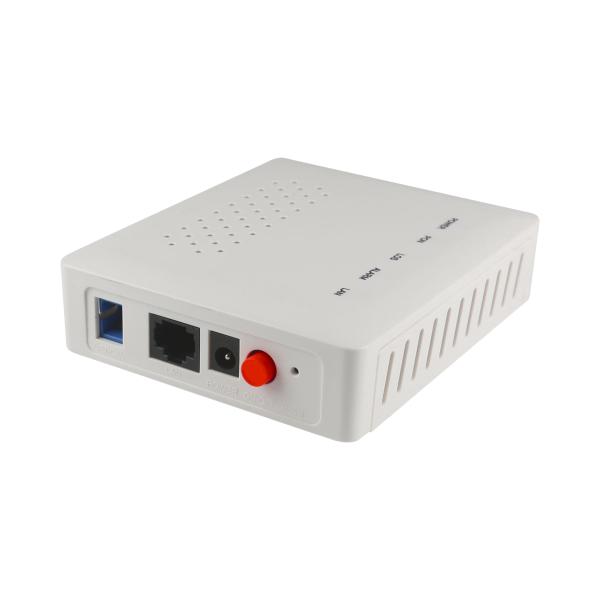

OFSE611 is a mini EPON ONU terminal device, which applies to pure broadband access. It adopts mini-type compact structure design with high-integration and can provide 1 GE(RJ45) interfaces. Supports the technology of layer 2 Ethernet switch and it’s easy to maintenance and manage. It can be applied to FTTH/FTTP access application for resident and business users, and it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V3.1).

Feature

* Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

* Support triple churning encryption request

* Support DBA reporting mechanism request

* Support OAM remote configuration maintenance function

* Support the remote upgrade and download

* Support status detection and fault report

* Support to configure the work mode at the user port.

* Support data encryption and decryption

* Support 802.1Q VLAN

* Support rich QinQ VLAN functions and IGMP Snooping

* Support traffic rule to modify the related priority.

* Support LED indication

* Support to restore the factory settings

* Support the remote reset and reboot

* Support dying gasp outage alarm

* Fully compatibility with OLT based=on=Broadcom/PMC/Cortina chipset.

Technical Specifications

Technical items Description
Optical property

Upstream PON

interface

1 EPON interface, SC single-mode/single-fibre,

symmetric 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Optical output power -1~+4dBm
Receiving sensitivity <-26dBm
Farthest distance 20km between OLT and ONU
Optical interface SC/UPC connector

Downstream LAN

interface

1*10/100/1000Mbps auto adaptive Ethernet interfaces,

Full Duplex/Half Duplex, RJ45 connectors
Layer 2/3 switch Support IEEE802.1Q VLAN
Support speed rate inhibition of broadcast packet at ONU
IEEE 802.3X flow control
Support 16 multicast addresses at each LAN port
Security strategy

Support AES-128,data encryption for both upstream

and downstream

Support dynamic update of key

Management

maintenance

 Centralized OLT management based on OAM
WEB, CLI
Upgrade software remotely
Hardware information
Indicators

4 indicators, for status of power supply, PON port and 1

Giga-Ethernet port.
DC power supply +5V, external AC-DC power adaptor
Chipset zte chipset
Power switch 1
Power consumption ≤2.5W
Operating condition Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed)
Storing condition Storing temp: -30~+60℃
Storing humidity:10~90%(non-condensed)
Dimension 83mm*83mm*25mm(length*width*height)
Net weight 0.24Kg

Ordering Information

Product name Product description
OFSE611 1*EPON(1490nm Rx,1310nm Tx,20Km,SC),1*10/100/1000Base-T,12V Power supply
