40Gb OM3 2x MPO-12 Duplex 50/125 Multimode MTP Cassette
40Gb OM3 2x MPO-12 Duplex 50/125 Multimode MTP Cassette
40Gb OM3 2x MPO-12 Duplex 50/125 Multimode MTP Cassette
40Gb OM3 2x MPO-12 Duplex 50/125 Multimode MTP Cassette
Specifications
Brand Name :
Geehe
Model Number :
GH-MPO-0015
Certification :
ISO9001:2015, ISO14001：2015,CE
Place of Origin :
China Mainland
MOQ :
300 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union,Paypal,Cash
Supply Ability :
1,800 pcs/day
Delivery Time :
5-7 Working Days for shipping
Packaging Details :
Individual PE Bags, paper outer cartons
Model Name :
Multimode MTP/MPO Cassette
Fiber Mode :
OM4 50/125μm
Fiber Count :
24 Fiber
Front Connector Type :
12x LC Duplex
Rear Connector Type :
2x MPO-12 Male (Pinned)
Test Wavelength :
850/1300nm
Fiber Length :
1m,3m,5m or OEM
Polarity :
Type A
10G Ethernet Distance :
400m at 850nm
40/100G Ethernet Distance :
150m at 850nm
Description

40Gb Pass OM3 2x MPO-12 Duplex 50/125 Multimode MTP/MPO Cassette


Basic Information:

MPO Fiber Optic Cassette Module is designed for the secure transition between MPO and LC discrete connectors. It’s suitable for high-density backplane and data center cabling which offers excellent benefits in terms of on-site installation time and space-saving.

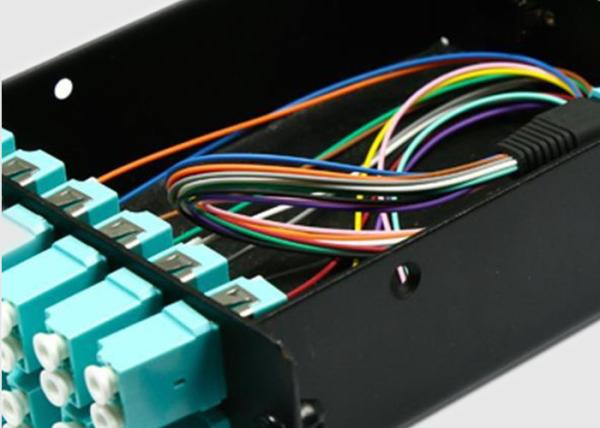

This Fiber Optic Cassette Module kit includes 2x pre-terminated MPO-12 to 12x LC Duplex 50/125 multimode OM3 fiber optic harness cable, an MPO adapter in back, 12x LC duplex adapters in the front and the cassette module that the fiber is routed and connected inside of it.

Geehe offers specialty components to help support multiple direction cable routing and management. Each component can be aimed in the desired direction to offer an organized approach to cable installation.

40Gb OM3 2x MPO-12 Duplex 50/125 Multimode MTP Cassette


Features&Benefits:

  • 100% tested for low insertion loss performance and high return loss
  • Simplifies cable management and allows for higher density
  • Suitable for MPO application
  • 50/125 multimode OM3 fiber
  • Cassettes can be easily mounted on the patch panel, designed for MPO/MTP ultra-high-density panel system
  • Easy to use and install
  • RoHS compliant


Specifications and Parameter:

16F MPO Fiber Optic Performance:

MPO Connector Standard Sm Low Loss Sm Standard Mm Low Loss Mm
Insertion Loss Typical(dB) 0.35 0.2 0.35 0.2
Maximum(dB) 0.75 0.35 0.6 0.35
Return Loss (dB) ≥60 for APC
(8 angle polish)		 ≥20 for PC
≥50 for PC —
Male/Female(dB) Male:with pins,Female:without pins
Tensile Strength (dB) ≤0.3 ( max 66N )
Vibration (dB) ≤0.3 ( 10-55Hz )
Thermal Cycle (dB) ≤0.3 (-40~75℃, 21cycles)



Geometric parameter of end-face:

Item Spec
SM MM
RX(mm) MIN 2000
RY(mm) MIN 5
Fiber Height (nm) 1000-3500
Max. diff. Height all (nm) MAX: 500
Max. diff. Height adj (nm) MAX: 300
X-Axis Angle ( °) -0.2 ~ 0.2
Y-Axis Angle ( °) PC: -0.2 ~ 0.2
APC: 7.8 ~ 8.2		 -0.2 ~ 0.2
Core Dip N/A -100 ~ 200



Ordering Information:

MC-2xMPO/M-12xDLC-24OM3-A:MPO Fiber Optic Cassette, 2x MPO-12 Male to 12x LC/UPC Duplex, 24 Fibers Multimode OM3, Type A, Key up-Key down

MPO -XX -XX -XX -X -XX -X -XX
A1: G657A1
A2: G657A2
M3: OM3
M4: OM4
M5: OM5		 LZ: LSZH
NP: OFNP
NR: OFNR		 FF: MPO /MPO(female to female )
MF: MPO/MPO (male to a female)
MM: MPO/MPO (male to male)		 L: Low loss
B: Standard loss		 12:1×12 core
48:4×12 core
72:6×12 core
96:8×12 core		 A: TIA568 through-type
B: TIA568 Reverse type
C: TIA568 cross-type		 5M to
50M
Gender Type Housing color Ferrule Connector loss standard Fiber cores Polarity Fiber length



MPO Cassette Application:

Datacenter infrastructure

Storage area network
Emerging 40 & 100Gps Protocols
Parallel optics
Enterprise network cabling system

40Gb OM3 2x MPO-12 Duplex 50/125 Multimode MTP Cassette

Geehe's Standards Compliance :

RoHS certificate:

40Gb OM3 2x MPO-12 Duplex 50/125 Multimode MTP Cassette
