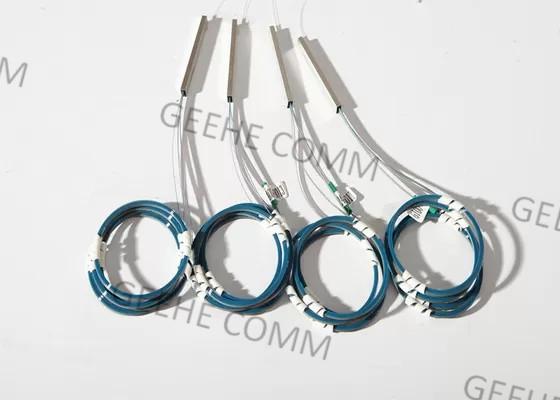

No Connector Steel Tube Bare Fiber 250μm PLC Fiber Optic Splitter 1×64

Basic Information:

1×64 Planar lightwave circuit ( PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations,and usually they are placed in the central office or in one of the distribution points (outdoor or indoor).

Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument, and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and needs a complete protection design on carrying box body and device.

Blockless PLC Features& Benefits:

• 1×64 bare splitter, unconnectorized
• 250μm ITU G.657A1 for fiber input/output
• Low insertion loss ≤ 16.9dB
• Low polarization-dependent loss (PDL) ≤ 0.3dB
• Compact design, suitable for installation in optical equipment
• Small size, it can be directly installed in a variety of transfer box and just take up little space
• High reliability and stability, Telecordia GR-1221/1209 compliant
• The design and packaging is exquisite to ensure the product in good condition

Application&Standard:

• LAN, WAN & Metro Networks
• Telecommunication Networks
• Passive Optical Networks
• FTT(X) Systems
• CATV
• Value Added Module
• DWDM and CWDM Systems
• Measuring System and Laser System

Specification& parameters

1×32 Splitter Package Dimensions:

Ordering Information:

Wuhan Geehe Serivce:

1) High Environmental Stability

Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity

2) Excellent Quality Chips

Loss of light is not sensitive for wavelength, and it can meet the transmission needs of different wavelengths, imported from the USA

3) Compact Structure

Small size, it can be directly installed in a variety of transfer box and just take up little space

4) Strict Quality Control

We guarantee that every product to the hands of customers is subject to stringent testing standards

5) High-quality Wire Rod

Excellent PVC wire, good strength, and tenacity, long lifespan

6) Simple and Easy Connection

Bare PLC splitter can be easily installed in fiber splice closure or fiber splitter distribution box for space-saving
