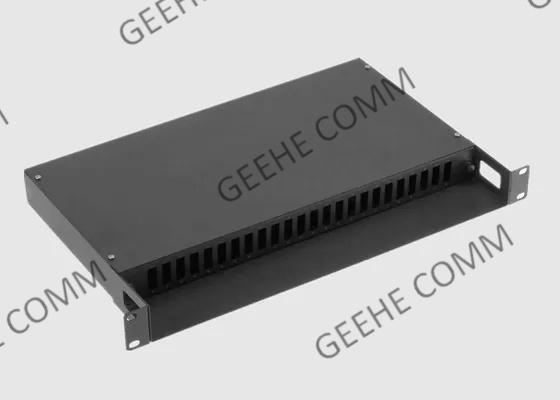

Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel
Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel
Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel
Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel
Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel
Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel
Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel
Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel
Specifications
Brand Name :
Wuhan Geehe
Model Number :
GH- FB-Panel- 001
Certification :
ISO9001:2015,CE, ISO14001
Place of Origin :
Wuhan China
MOQ :
200 pcs
Price :
Negotiation
Payment Terms :
Can be Negotiated
Supply Ability :
500 pcs/ per day
Delivery Time :
Within 7 working days after confirm order
Packaging Details :
Individual inner paper box, paper outer cartons
Model Name :
Fiber Optic Patch Panel
Structure :
19'' Rack Mounted
Rack Material :
Cold Rolled Steel, AL
Rack Color :
Black, White, Grey
Height :
1U, 2U, 3U, 4U, 8U
Port :
6, 12, 24, 48, 72, 96, 144
Connector :
SC LC FC ST
Thickness :
0.8mm,1.0mm, 1.2mm
Dimensions (L×W×H) mm :
1×32：141×115×18
Feature :
Waterproof Dustproof
Description

12-24 Core SC/FC/ST/LC ODF Rack Mount Splicing Termination Box Fiber Optic Patch Panel

Fast Overview:

1.MTP/MPO cassette can be loaded 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.

2.MTP/MPO cassette with PC material transparent cover, also easy to observe and maintenance

3.UP to 288 Fiber LC Ports in 3U

4.Flexibility to Mix Adapter Plates with Cassettes in Patch Panel

5.Flat Front Panel for Optimal Cable Routing

6.Easily Accessible MPO/MTP Ports for Connection to Trunk Cable

7.Compliant to IEC-61754-7, EIA/TIA-604-5 & RoHS

8. Factory terminated and tested

Benefit& Feature:

Port identification with clear visible labeling

Superior cable management and access

Installation with tool-less removable drawers and lightweight housings

Pre-term installation with simple fixed shelves and cassettes

Back metal door fixed by revolving buckle, easy to open and manage cable

Roomy space ensure fiber bent ratio

Application:

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

Optic communication system

Rack Mounted 24 Core FC ODF 3U Fiber Optic Patch Panel

Specificaiton&Technology Parameters :

Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) SDWC:1310&1550；STWC:1310,1490&1550
Port Wavelength Range(nm) 1310 ±40,1490 ±10 and 1550 ±40
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.6 1 1.6 2 1.8 0.8 1.2 1.8 2.2
PDL@ 1310/1550 nm (dB) ≤0.3
Input Power (mW) 250max
Operating Temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1, 900μm, 2mm, 3mm Loose Tube
Dimensions(L×W×H) (mm) 100×80×10,141×115×18, On request

* The above specification exclusive connector

19 Inch Rack Specification:

19 Inch Rack LGX
Configuration 1U 2U 1U 2U
Packing Dimensions(mm) 482.6×278×44 482.6×278×88 129×125×29 129×125×58
Installation Dimensions (mm) 462.7×11.0(4-Φ6) 462.7×27.5(6-Φ6) 118(2-Φ6) 118×29.2(2-Φ7)

Ordering Information:

WBC- X- X2- 35- XX- X- XX- XX- X
P: Premium
A: Grade A
X: Follow Customer's Requirements		 13:1x3
14:1X4
…
232:2 X32		 35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50		 1:1 m
x: Follow Customer's Requirements		 25:250μM Fiber
09:900μM Loose Fiber		 SC: SC/UPC SA: SC/APC
00:no connect		 D:D
1U: J1
2U: J2
Grade Port Number Operation Wavelength Coupling Ratio Fiber Length Fiber Type Connector Type Dimension
