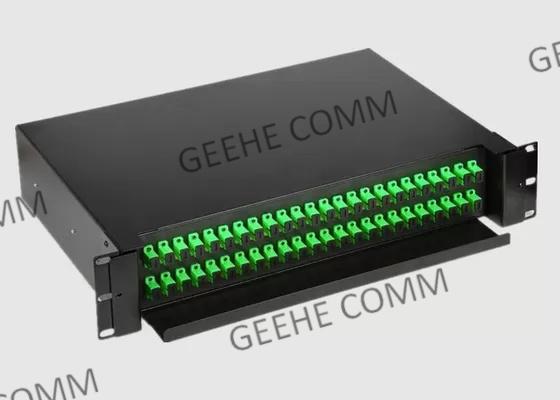

Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel
Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel
Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel
Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel
Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel
Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel
Specifications
Brand Name :
Wuhan Geehe
Model Number :
GH- FB-Panel- 0010
Certification :
ISO9001:2015,CE, ISO14001,CE
Place of Origin :
Hubei,China
MOQ :
200 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
500 pcs/ per day
Delivery Time :
Within 7 working days after confirm order
Packaging Details :
Individual inner paper box, paper outer cartons
Model Name :
Fibre Optic Patch Panels And Adapters
Rack Mountable :
19'' Rack Mounted
Rack Material :
Zinc-plated Cold Roll Steel Sheet
Rack Color :
Black, White, Grey,or OEM
Height in Units :
1U, 2U, 3U, 4U, 8U
Ports :
6, 12, 24, 48, 72, 96, 144
Front :
48 - LC/LC Multimode duplex
Thickness :
0.8mm,1.0mm, 1.2mm
Max. Fiber Cores :
24
2U Dimensions (Hxwxd) :
48.2×27.8×88mm
Description

48 Port Multimode Sliding Rackmount Fibre Optic Patch Panels And Adapters

2U Patch Panel Overview:

A 48 port patch panel comes loaded with 48 duplex LC 62.5 micron multimode female to female couplers. It provides a quick and easy solution for patching terminated fiber cables. It is 2U in height and meant to be mounted on a 19" rack or cabinet.

This 19-inch rackmount patch panel provides an affordable and compact solution for rackmount fiber applications, which has 48 ports for patching duplex LC multimode fiber cables while using only 2U of rack space. It is ideal for high-density applications.

Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel

2U Patch Panel Wall Mount ​Benefit& Feature:

  1. Compact, Economical Design
  2. Quick Patching of Terminated Fiber Cables
  3. The Quality and Convenience You Need
  4. Compatibility with both fiber and copper installations
  5. Available in SM, OM1, OM2, OM3 and OM4 fiber grades
  6. Flat Front Panel for Optimal Cable Routing
  7. Removable Top for Easier Fiber Cable Management
  8. Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS

2U Patch Panel Wall Mount Application:

FTTX applications, Datacenter and LAN & WAN projects

Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel

Specificaiton&Technology Parameters :

Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) SDWC:1310&1550；STWC:1310,1490&1550
Port Wavelength Range(nm) 1310 ±40,1490 ±10 and 1550 ±40
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.6 1 1.6 2 1.8 0.8 1.2 1.8 2.2
PDL@ 1310/1550 nm (dB) ≤0.3
Input Power (mW) 250max
Operating Temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1, 900μm, 2mm, 3mm Loose Tube
Dimensions(L×W×H) (mm) 100×80×10,141×115×18,On request

* The above specification exclusive connector

19 Inch Rack Specification:

19 Inch Rack LGX
Configuration 1U 2U 1U 2U
Packing Dimensions(mm) 482.6×278×44 482.6×278×88 129×125×29 129×125×58
Installation Dimensions (mm) 462.7×11.0(4-Φ6) 462.7×27.5(6-Φ6) 118(2-Φ6) 118×29.2(2-Φ7)

Ordering Information:

WBC- X- X2- 35- XX- X- XX- XX- X
P: Premium
A: Grade A
X: Follow Customer's Requirements		 13:1x3
14:1X4
…
232:2 X32		 35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50		 1:1 m
x: Follow Customer's Requirements		 25:250μM Fiber
09:900μM Loose Fiber		 SC: SC/UPC SA: SC/APC
00:no connect		 D:D
1U: J1
2U: J2
Grade Port Number Operation Wavelength Coupling Ratio Fiber Length Fiber Type Connector Type Dimension

Wuhan Geehe Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards


4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan

Multimode 2U 1.0mm 48 Port Fiber Optic Patch Panel
