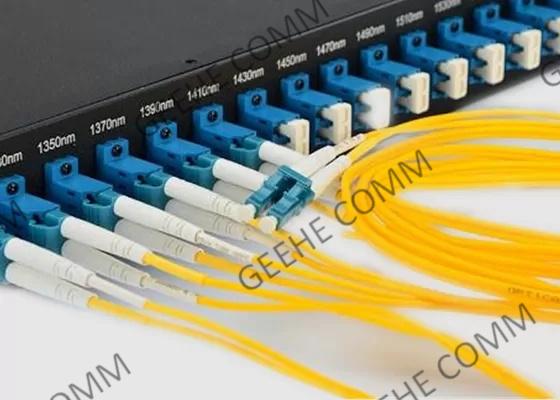

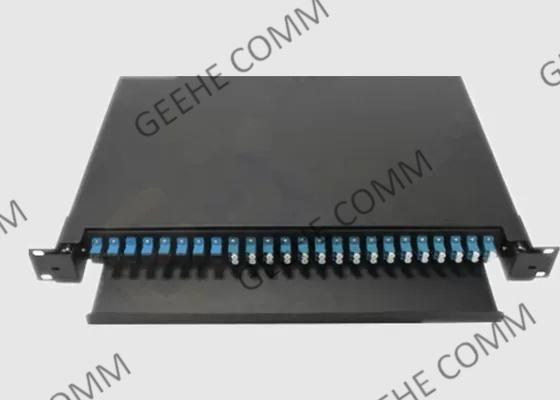

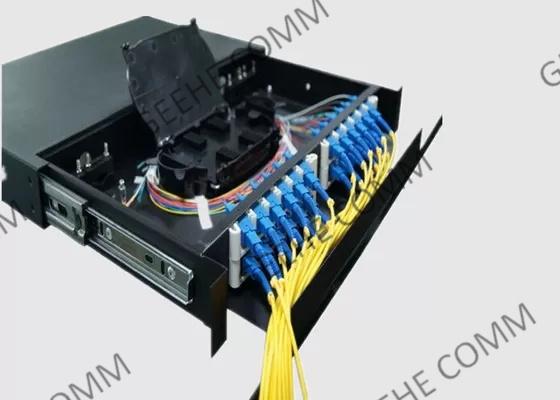

12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
Specifications
Brand Name :
Geehe
Model Number :
GH- FB-Panel- 0014
Certification :
ISO9001:2015,ISO14001,CE
Place of Origin :
Hubei,China
MOQ :
200 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, Western Union
Supply Ability :
600 pcs/ per day
Delivery Time :
Within 7-9 working days after confirm order
Packaging Details :
Individual inner paper box, paper outer cartons
Model Name :
Fiber Optic Rack Mount With Adapter
Structure :
1.2mm Premium Cold Rolled Steel Plate
Material :
Zinc-plated Cold Roll Steel Sheet
Rack Color :
Black, White, Grey
Height :
1U, 2U, 3U, 4U, 8U
Ports :
6, 12, 24, 48, 72, 96, 144
Connector Capacity :
12 SC Adapter, 12 LC/UPC Fiber Patch Panel
Installation Way :
Rack Mount
Dimensions (L×W×H) mm :
1×32：141×115×18
Feature :
Waterproof Dustproof
Description

SC/UPC LC/UPC Adapters&12 Fiber Pigtails Patch Panel For Fiber Optic Cables

Basic Information:

A sliding rack mount panels feature 12 ports and come pre-loaded with 12 SC Duplex multimode adapters. If you have a few patches to make right away, make use of the included fiber management kit, which has some essential goods such as a PG 13.5 cable gland, 1 splice bridge, 8 bunny clips, 24 fiber strands, and 1 warning label.

Loaded 1U Patch Panel Kits with pigtails from 6 ports to 36 ports in all connector types LC, LC APC, SC, SC APC, FC, FC APC, and ST and up to 72 ports with LC or LC APC. 2U Patch Panel Kits with pigtails from 6 ports to 72 ports in all connector types LC, LC APC, SC, SC APC, FC, FC APC, and ST and up to 144 ports with LC or LC APC. Available in Single-Mode 9/125μm, Multimode 62.5/12μm, and Multimode 50/125μm OM3.

12 Port SC/UPC LC/UPC Optical Fiber Patch Panel

Patch Panel Benefit& Features:

  • Free 12 port Fiber Optic Patch Panel Sample Available in Stock
  • Made of 1.2mm Premium Cold Rolled Steel Plate
  • Supports Single-mode or Multimode Fiber connections
  • Maximized Rackmountable Space
  • Pigtails are supplied separately on the economical models
  • Recessed adapters giving better bend radius
  • Environmentally friendly materials & packaging
  • Designed In Accordance: TIA/EIA 568.C, ISO/IEC 11801, EN 50173,IEC 60304, IEC 61754

Patch Panel Application:

FTTX applications, Datacenter and LAN & WAN projects.

12 Port SC/UPC LC/UPC Optical Fiber Patch Panel12 Port SC/UPC LC/UPC Optical Fiber Patch Panel

Specificaiton&Technology Parameters :

Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) SDWC:1310&1550；STWC:1310,1490&1550
Port Wavelength Range(nm) 1310 ±40,1490 ±10 and 1550 ±40
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.6 1 1.6 2 1.8 0.8 1.2 1.8 2.2
PDL@ 1310/1550 nm (dB) ≤0.3
Input Power (mW) 250max
Operating Temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1, 900μm, 2mm, 3mm Loose Tube
Dimensions(L×W×H) (mm) 100×80×10,141×115×18, On request

* The above specification exclusive connector

19 Inch Rack Specification:

19 Inch Rack LGX
Configuration 1U 2U 1U 2U
Packing Dimensions(mm) 482.6×278×44 482.6×278×88 129×125×29 129×125×58
Installation Dimensions (mm) 462.7×11.0(4-Φ6) 462.7×27.5(6-Φ6) 118(2-Φ6) 118×29.2(2-Φ7)

Ordering Information:

WBC- X- X2- 35- XX- X- XX- XX- X
P: Premium
A: Grade A
X: Follow Customer's Requirements		 13:1x3
14:1X4
…
232:2 X32		 35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50		 1:1 m
x: Follow Customer's Requirements		 25:250μM Fiber
09:900μM Loose Fiber		 SC: SC/UPC SA: SC/APC
00:no connect		 D:D
1U: J1
2U: J2
Grade Port Number Operation Wavelength Coupling Ratio Fiber Length Fiber Type Connector Type Dimension

Geehe Factory Fiber Patch Panel Performance:

  1. Standard width make them can be applied to extensive field
  2. Strength core and shell was insulated
  3. Reliable fiber lead and perfect fix up
  4. Reliable pigtail fixes up and perfect protection
  5. Flexible design and enough space make them convenient for operations and maintenance
  6. The surface is spray-painted and the metal part is well protected.
  7. The incision of the metal part is well processed and avoids burr and sharp edge.

12 Port SC/UPC LC/UPC Optical Fiber Patch Panel
