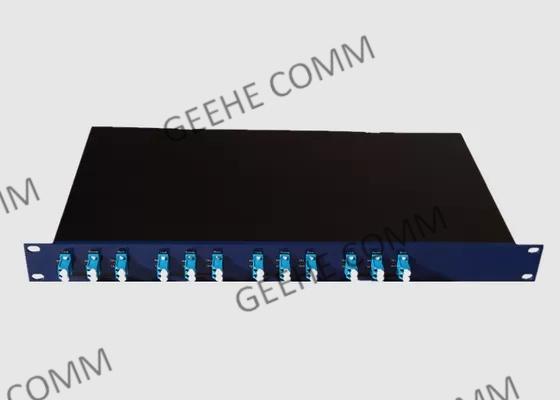

Black Multimode Duplex 1.2mm 12 Port SC Fiber Patch Panel
Black Multimode Duplex 1.2mm 12 Port SC Fiber Patch Panel
Black Multimode Duplex 1.2mm 12 Port SC Fiber Patch Panel
Black Multimode Duplex 1.2mm 12 Port SC Fiber Patch Panel
Specifications
Brand Name :
Wuhan Geehe
Model Number :
GH- FB-Panel- 006
Certification :
ISO9001:2015,CE, ISO14001,CE
Place of Origin :
Wuhan China
MOQ :
100 pcs
Price :
Negotiation
Payment Terms :
Can be Negotiated, T/T, L/C, D/A
Supply Ability :
500 pcs/ per day
Delivery Time :
Within 7-9 working days after confirm order
Packaging Details :
Individual inner paper box, paper outer cartons
Model Name :
Fibre Optic Patch Panel Wall Mount
Structure :
Cold Rolled Steel
Rack Material :
50mm
Rack Color :
Black, White, Grey,or OEM
Height :
1U, 2U, 3U, 4U, 8U
Ports :
6, 12, 24, 48, 72, 96, 144
Mounting Adjustment Range :
50mm
Thickness :
0.8mm,1.0mm, 1.2mm
Material Coating :
Powder Coating
1U Dimensions (Hxwxd) :
48.2×27.8×44mm
Splice Capacity :
24 Fibers
Connector Capacity :
12pcs SC or 24pcs LC connectors
Description

Black Color Multimode 1.2mm SC Duplex 12-Port Fiber Optic Patch Panel

Basic Information:

Geehe 12 port Fiber Optic Patch Panel SC LC 19 Inch is designed to install 12 pcs SC LC ports fiber optic adapters and pigtails, It is a drawer type which makes fiber installation & storage easy. Suitable to both single-mode and multimode fiber cablings.

The box is Rack Mounted, which is convenient to install and dismantle, the indoor type is of excellent seal performance, which could prevent water from entering effectively. Customized fiber ports as per your specific requirements.

Patch Panel Wall Mount ​Benefit& Feature:

  • Free 12 port Fiber Optic Patch Panel Sample Available in Stock
  • Made of 1.2mm Premium Cold Rolled Steel Plate
  • Supports Single-mode or Multimode Fiber connections
  • Maximized Rackmountable Space
  • Multifunctional rear cable entry options
  • Panel number & rack number identification labels
  • Splice tray can be clamped with 12FC, SC, ST, LC(Duplex) adapters/30° oblique installation, preventing eyes from harm of laser and ensuring the fiber bending radius
  • Removable and exchangeable front frames

Patch Panel Wall Mount Application:

The Fiber Patch Panel ( 1- 96 core fiber optic termination box) can be used on the terminal of the optical cables, different types, and structures, the diameter of which is within a 20mm tray.

Black Multimode Duplex 1.2mm 12 Port SC Fiber Patch Panel

Specificaiton&Technology Parameters :

Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) SDWC:1310&1550；STWC:1310,1490&1550
Port Wavelength Range(nm) 1310 ±40,1490 ±10 and 1550 ±40
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.6 1 1.6 2 1.8 0.8 1.2 1.8 2.2
PDL@ 1310/1550 nm (dB) ≤0.3
Input Power (mW) 250max
Operating Temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1, 900μm, 2mm, 3mm Loose Tube
Dimensions(L×W×H) (mm) 100×80×10,141×115×18,On request

* The above specification exclusive connector

19 Inch Rack Specification:

19 Inch Rack LGX
Configuration 1U 2U 1U 2U
Packing Dimensions(mm) 482.6×278×44 482.6×278×88 129×125×29 129×125×58
Installation Dimensions (mm) 462.7×11.0(4-Φ6) 462.7×27.5(6-Φ6) 118(2-Φ6) 118×29.2(2-Φ7)

Ordering Information:

WBC- X- X2- 35- XX- X- XX- XX- X
P: Premium
A: Grade A
X: Follow Customer's Requirements		 13:1x3
14:1X4
…
232:2 X32		 35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50		 1:1 m
x: Follow Customer's Requirements		 25:250μM Fiber
09:900μM Loose Fiber		 SC: SC/UPC SA: SC/APC
00:no connect		 D:D
1U: J1
2U: J2
Grade Port Number Operation Wavelength Coupling Ratio Fiber Length Fiber Type Connector Type Dimension

Wuhan Geehe Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards


4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan

Black Multimode Duplex 1.2mm 12 Port SC Fiber Patch Panel
