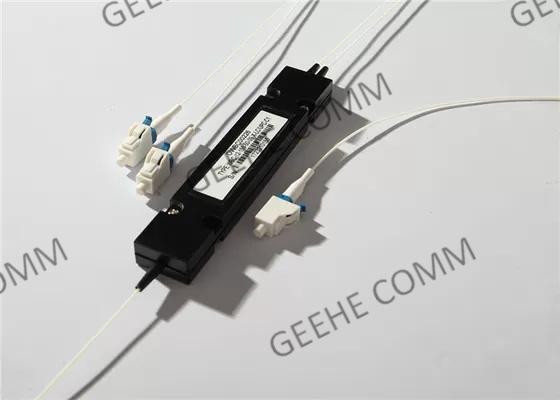

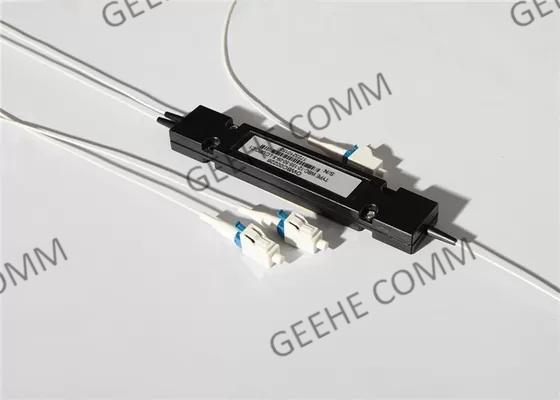

50/50 Single Mode 1×2 155nm pm fiber coupler
50/50 Single Mode 1×2 155nm pm fiber coupler
50/50 Single Mode 1×2 155nm pm fiber coupler
50/50 Single Mode 1×2 155nm pm fiber coupler
50/50 Single Mode 1×2 155nm pm fiber coupler
50/50 Single Mode 1×2 155nm pm fiber coupler
Specifications
Brand Name :
Geehe (ODM&OEM)
Model Number :
GH-OS-WDM-007
Certification :
ISO9001:2015,ISO14001:2015,UL
Place of Origin :
Wuhan,China
MOQ :
500 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
1600 pcs/ day
Delivery Time :
With 9-10 days after confirmed the order
Packaging Details :
Plastic box per pc with Pressure defense sponge, outer carton
Module Name :
Fused WDM Module Couplers
Port Configuration :
1 x 2
Centre Wavelength :
1550nm
Bandwidth :
±20nm
Polarization Extinction Ratio :
≥ 17dB
Fiber Type :
PM Panda fiber all ports or SM fiber
Common Pass port :
PM980 or PM1550
Option Channel :
4, 8 , 16, 18 channels
Operating Wavelength :
980~1620 nm
Package :
Mini package, Module package, Frame package
Description

50:50 Single Mode 1×2 155nm Polarization Maintaining Filter Coupler


Basic Information:

Polarization maintaining couplers (PMC) combine or split the incoming light and maintain their polarization states at the output ports.

Two types of PM couplers are available, micro-optical sub-components based or PM fused fiber-based. The PM couplers have central wavelengths at 1310nm, 1550nm, or 1064nm. Their coupling ratios can be specified with high accuracy. Two configurations, 1x2 or 2x2, are available.

Geehe's polarization-maintaining Filter Split Ration:1:99,2:98,5:95,10:90,50:50,1:99,2:98,5:95,10:90,50:50.


FBT WDM Benefit&Features:

  • High extinction ratio
  • Low excess loss
  • Accurate tapping and splitting ratios
  • High stability and reliability
  • Epoxy-free optical path
  • Broad operating band
  • Epoxy-Free Optical Path
  • Low Polarization Dependent Loss

Certification And Compliance:

GR-1209-CORE Requirements for passive optic components

GR-1221-CORE Reliability assurance requirements for passive optical components

GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies

TIA-604 Fiber optic connector interpretability standard

ROHS Directive on the restriction of hazardous substances

WDM Applications:

-- FTTX

-- Passive Optical Networks (PON)

-- Digital, hybrid video systems

-- CATV links & Fiber sensors

-- Long -haul telecommunication

-- Access /PON distributions

50/50 Single Mode 1×2 155nm pm fiber coupler

Specifications& Technology Parameters:

Parameter P A
Operating Wavelength 1480/1550nm
Insertion Loss(Max.)(dB) 1:99 2:98 5:95 10:90 50:50 1:99 2:98 5:95 10:90 50:50
21/0.8 18/0.8 14.2/0.9 11.2/1.1 3.6 22/1.0 18.5/1.0 14.8/1.1 11.8/1.3 4.0
Max.Uniformity (dB) 0.8
Mini.Extinction Ratio(dB) 20 18
Optical Return Loss(dB) ≥50
Power Handling(mW) 500
Operating Temperature(℃) -10~+75
Storage Temperature(℃) -40~+85
Fiber Type PM Panda Fiber
Package Dimensions (mm) Φ3 x L35 OR Φ3 x L48


* The above specification is excluding the connector
* Other specification can be made on customer requires

Ordering Information:

PMC -X -X2 -XX -XX -X -XX -XX X
P: Premium
A: Grade A
X: On Request		 12:1x2
22:2x2		 55:1550nm
xx: on request		 01: 01:99 02: 02:98 ……
50: 50:50		 1:1 m
x: on request		 25:250μM Fiber 09:900μM loose Fiber
20:2mm光缆
30:3mm光缆		 SC:SC/UPC SA:SC/APC 00:no connector A: A
B: B
C: C
Grade Port Number Operating Wavelength Coupling Ratio Fiber Length Fiber Type Connect Type Dimension

Wuhan Geehe Comm Service:

-- Continuous improvement; accepting new challenges
-- Innovating new processes, and creating new products for the benefit of our customers
-- Efficient use of all transportation modes and transit times

-- Greater visibility and real-time information

-- Factory inspection, also accept the third party inspect

-- Fast turnover of orders and promised delivery time

-- Safe and light package

-- After service for all products, 24/7 online

50/50 Single Mode 1×2 155nm pm fiber coupler
