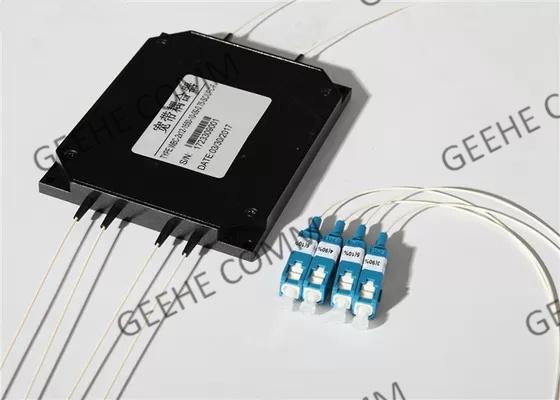

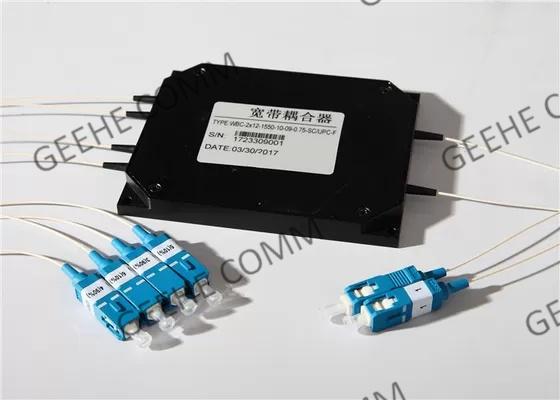

2×4 Fan Out 1480nm Fused Fiber Optic WDM Module
2×4 Fan Out 1480nm Fused Fiber Optic WDM Module
2×4 Fan Out 1480nm Fused Fiber Optic WDM Module
2×4 Fan Out 1480nm Fused Fiber Optic WDM Module
2×4 Fan Out 1480nm Fused Fiber Optic WDM Module
2×4 Fan Out 1480nm Fused Fiber Optic WDM Module
Specifications
Brand Name :
Geehe
Model Number :
GH-OS-WDM-004
Certification :
ISO9001:2015,RoHS,ISO14001:2015
Place of Origin :
Wuhan,China
MOQ :
200 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union.Cash,Ali Pay
Supply Ability :
800 pcs/ day
Delivery Time :
With 3-5 days after confirmed the order
Packaging Details :
Plastic box per pc with Pressure defense sponge, outer carton
Module Name :
WDM In Optical Communication
Port Type :
2×4
Fiber Type :
PM Panda fiber
Jacket :
250um or 900nm or others
Connectors :
With LC upc connectors
Pigtail Length :
1M,1.5M or customized
Common Pass port :
PM980 or PM1550
Option Channel :
4, 8 , 16, 18 channels
Operating Wavelength :
980~1620 nm
Package :
Mini package, Module package, Frame package
Description

High Directivity 2 × 4 Fan Out 1480/1550nm Fused WDM Module With LC Connector


Basic Information:

2 × 4 Fan Out Single Mode Fused Coupler is built by using fused biconical taper (FBT) technology. It can be used to split the input signal at various ratios with low insertion loss.

You can choose two main types of Fused WDM modules: Fused WDM used in optical fiber amplifiers, such as 980/1550nm, 1480/1550nm, 980/1060nm Fused WDM; Fused WDM module used in bi-directional or CWDM optical communication systems, such as 1310/1550nm WDM Module.

The connectors are available:LC-UPC,LC-APC,LC-PC,SC-UPC,SC-APC,SC-PC,FC-UPC,FC-APC,FC-PC,ST-UPC etc.


FBT WDM Benefit&Features:

* Various Coupling Ratio

* High Channel Isolation

* High Uniformity and reliability

* Low insertion and return loss

* Exceptionally Stable and Reliable

* Customization Supported

Certification And Compliance:

* GR-1209-CORE Requirements for passive optic components

* GR-1221-CORE Reliability assurance requirements for passive optical components

* GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies

* TIA-604 Fiber optic connector interpretability standard

* ROHS Directive on the restriction of hazardous substances

2×4 Fan Out 1480nm Fused Fiber Optic WDM Module

WDM Applications:

* FTTX

* Passive Optical Networks (PON)

* Digital, hybrid video systems

* CATV links & Fiber sensors

* Long -haul telecommunication

* Access /PON distributions

* LAN/WAN/Metro

* Datacenter

2×4 Fan Out 1480nm Fused Fiber Optic WDM Module

Specifications& Technology Parameters:

Fiber Type(dB) Corning HI1060flex or OFS BF05635-02 SMF-28e
Operating Wavelength(nm) 980 & 1550 1060 & 1550 1310 & 1550 1480 & 1550
Operating Bandwidth(nm) ±10/20 ±15 ±15
Grade P A P A P A P A
Insertion Loss(dB) ≤0.15 ≤0.25 ≤0.30 ≤0.40 ≤0.2 ≤0.3 ≤0.3 ≤0.35
Isolation(dB) ≥20 ≥18 ≥20 ≥18 ≥25 ≥18 ≥25 ≥18
PDL(dB) ≤0.05 ≤0.1 ≤0.05 ≤0.1 ≤0.05 ≤0.1 ≤0.1 ≤0.1
Directivity(dB) ≥55
Operating Temperature(℃) -40 ~ +85


* The above specification is excluding the connector
* Other specification can be made on customer requires


Ordering Information:

WDM- N- XX- XX- X- XX- XX- X
95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm 01: :SMF-28e
02: HI1060flex,
03: OFS BF05635-02		 1:1m
X:customization		 25:250μM Fiber
09:900μM loose Fiber 20: 2mm cable
30: 3mm cable		 SC:SC/UPC
SA:SC/APC
......
00:No connector		 A: A
B: B
C:C
Grade Operation Wavelength Fiber Type Fiber Length Pigtail Type Connect Type Dimension

Wuhan Geehe Comm Service:

-- Continuous improvement; accepting new challenges
-- Innovating new processes, and creating new products for the benefit of our customers
-- Efficient use of all transportation modes and transit times

-- Greater visibility and real-time information

-- Free samples for testing

-- Factory inspection, also accept the third party inspect

-- Fast turnover of orders and promised delivery time

-- Safe and light package

-- 24/7 after service for the customers from all over the world

2×4 Fan Out 1480nm Fused Fiber Optic WDM Module
