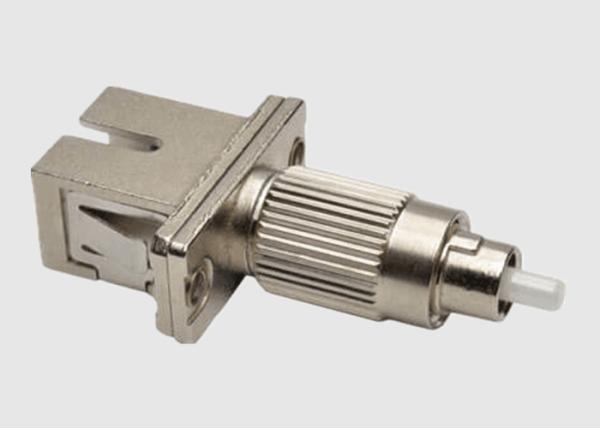

62.5/125 FC To SC Fiber Adapter
62.5/125 FC To SC Fiber Adapter
62.5/125 FC To SC Fiber Adapter
62.5/125 FC To SC Fiber Adapter
62.5/125 FC To SC Fiber Adapter
62.5/125 FC To SC Fiber Adapter
Specifications
Brand Name :
Geehe (OEM&ODM)
Model Number :
GH-AD-006
Certification :
ISO9001:2015,Realiability Reports, RoHS
Place of Origin :
Wuhan China
MOQ :
300 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
3,000 pcs/per day
Delivery Time :
Within 5-7 working days after confirm the order
Packaging Details :
Plastic box per pc with pressure defense sponge, outer carton
Model Name :
Fiber Optic Hybrid Adapter
Fiber Counts :
Simplex
Adapter Insert Material :
Zirconia/Ceramic, Metal
Housing Material :
Metal, Plastic
Connector Type :
FC To SC
Fiber Mode :
Single Mode,Multi Mode
Durability :
>1000 mating times
Operating Temperature :
-25~70℃
Adapter Mounting Type :
With Flange
Style :
Hybrid Adapter
Description



Single Mode Flange FC UPC Male To SC UP Male Fiber Optic Hybrid Adapter


1. Product Overview:

A FC male to SC female Multimode 62.5/125 Fiber Optic Hybrid Adapter, is a mating sleeve that is designed for connecting together an SC male connector into an FC Female port.

Geehe offers you Hybrid Mating Adapters for sale directly on our website designed for SC, FC, ST and LC, Single-mode, and multi-mode connectors. We have adapters with female to female terminations that allow the union of the connectors to be precise.also with many types Hyybrid adapters to suitable your projects.

2. Optical Cable Adaptor Feature and Benefits:

  • High size precision
  • Fast and easy connection
  • Lightweight and durable metal housings
  • Zirconia ceramic alignment sleeve
  • Male to male connector types
  • Metal Construction
  • Interchangeable for a wide range of products
  • All metal construction for long life

3. Fiber Optic Adapter Applications:

  1. FTTH, LAN, PON & Optical CATV
  2. Local ring net
  3. Fiber Optic Transmission Network
  4. Cable TV network
  5. Optical Fiber Lan
  6. Optical fiber testing instrument

62.5/125 FC To SC Fiber Adapter

4. Optic Adapter Specification & Technology Parameters:

Item Value Unit
Sleeve Material Ceramic /
Insertion Loss Male Typ. ≤ 0.5 dB
Min. ≤ 0.2 dB
Female Typ. ≤ 0.3 dB
Min. ≤ 0.2 dB
Return Loss UPC ≥50 dB
APC ≥60 dB
PC ≥35 dB
Insertion Loss Max. 0.2 dB
∆ IL Uniformity ＜0.2 dB
Durability (1000 times) ＜0.3 dB
Proof Test 40N,10 minute N
Insertion And Withdrawal Force ≤19.6N N
Operating Temperature -25~+70 ℃
Storage Temperature -25~+70 ℃
Protocol Standards IEC60874-10/61300/TIA/EIA568



5. Ordering Information:

OFC -X -XX -XX -XX -X -X
S: Simplex
D: Duplex		 SC
FC
ST
LC
MU		 APC
UPC
PC		 Z: Zirconia ceramic P: Phosphor Bronze W: With Flange
N: No Flange		 W: With shutter
N: No shutter
Fiber Mode Connector Type Connector Type Sleeve Flange Type Shutter Typ

7. Wuhan Geehe Comm Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day

62.5/125 FC To SC Fiber Adapter
