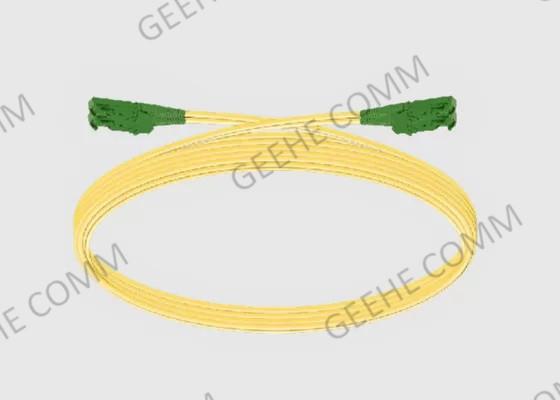

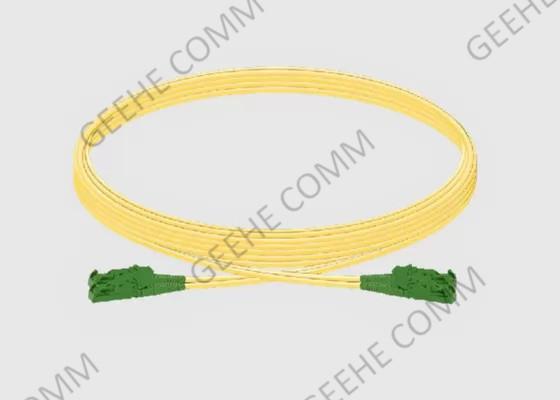

10M 62.5/125 Ultima Single Mode 850nm Fiber Patch Cables& Pigtails E2000

1. Fiber Patch Cord Basic Introduction:

Fiber jumpers are our most economical line of fiber patch cables. These are kept in stock and are often able to ship on the same day. Fiber jumpers are stocked in meter lengths between 1 and 30 meters.

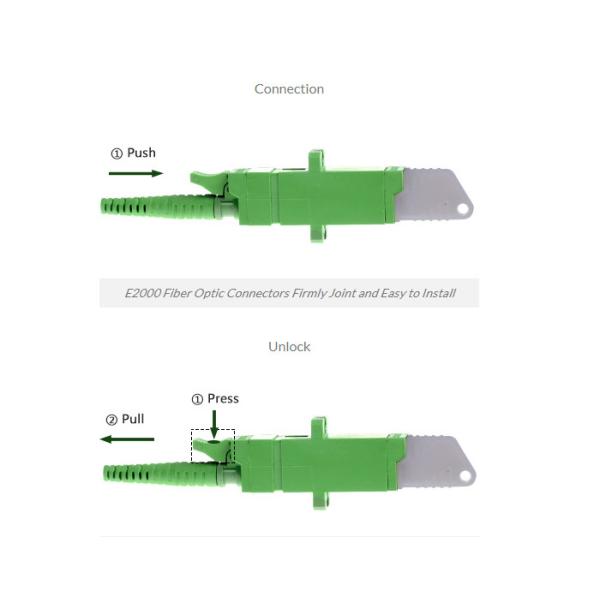

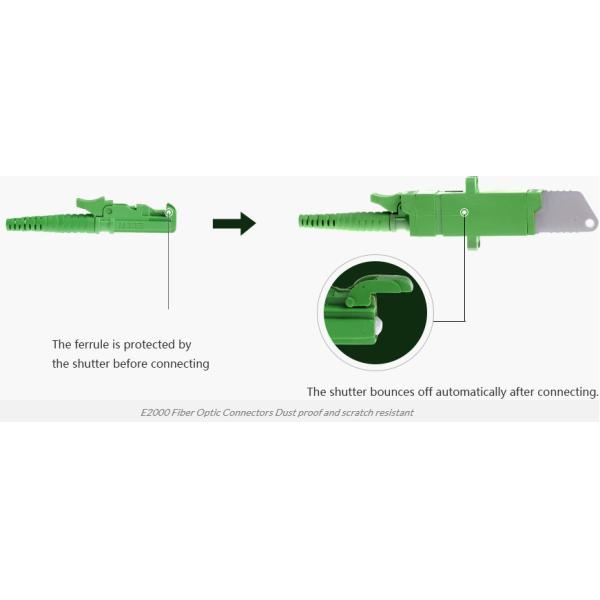

The E-2000 Connector Series is one of the few fiber optic connectors featuring a spring-loaded shutter that fully protects the ferrule from dust and scratches. The shutter closes automatically when the connector is disengaged, locking out impurities that could later lead to network failure, and locking in potentially harmful laser beams.

E2000 fiber connectors and related products comply with IEC 61 754-15 and TIA/EIA 604-16. We supply the E2000 connector, adapter, and cable assemblies.

The E2000 optical fiber connector comes with a spring louver to protect the ferrule from external contaminants. And effectively prevent laser radiation from causing harm to the human body.

2. Fiber Optic Jumper Benefit & Features:

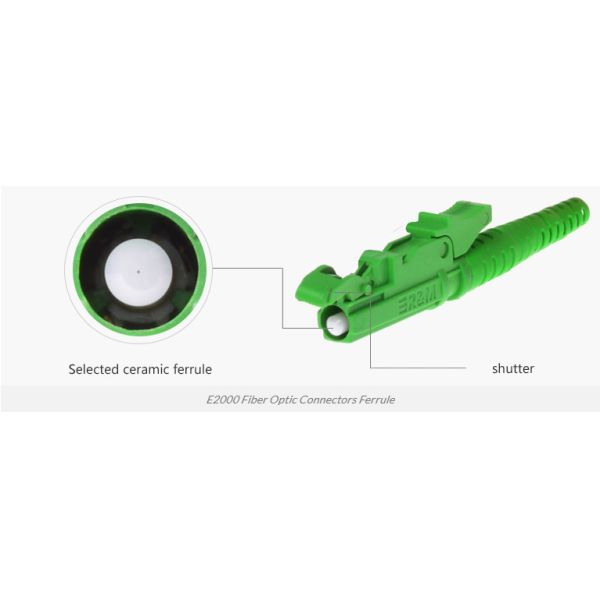

High-quality ferrules

Selected ceramic ferrule, professional grinding technology, precise docking of fiber end face; lower insertion loss ≤0.15dB, making transmission more stable and connection more efficient.

Stable parameter performance

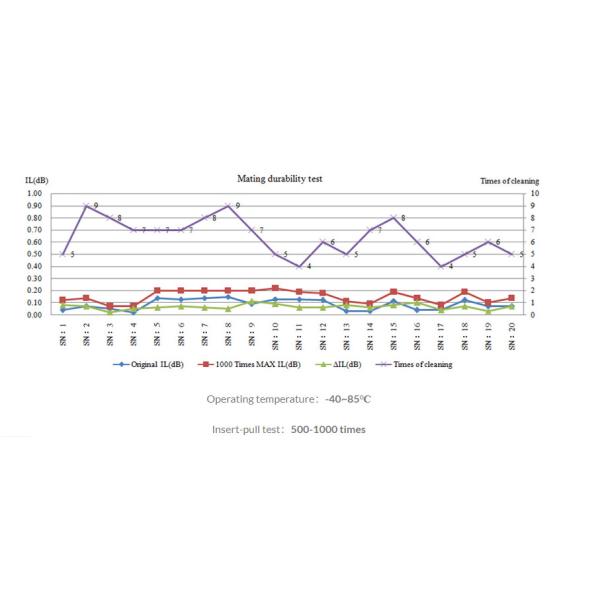

The E2000 fiber optic connector meets the working environment of -40~85 °C, with an average of more than 500~1000 insertion and removal tests, with stable performance and reliable quality.

Compliance with international standards
The E2000 Optical fiber connector can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754-15, IEC 61753-1 and other standards.

3. Fiber Optic Jumper Applications:

• Telecommunication Networks
• Cable Television (CATV)
• Premises Distribution
• Local Area Networks (LAN)
• Fiber -to the- Home (FTTx)
• Sensors
• Instrumentation
• Device pigtails
• Light delivery

4. Specification&Technology Parameters

5. Ordering Information

Legacy ordering information

6. Options Available

-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish

Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC

Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm

Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
Call us today to speak with one of our qualified salespeople to help answer any questions.
