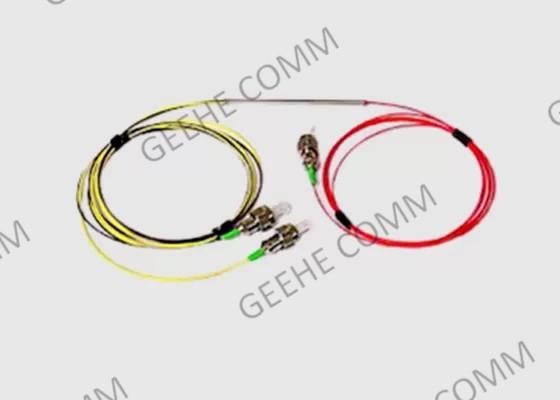

Fiber Optic ST Connector 1×2 Ratios Wideband Optical Couplers
Fiber Optic ST Connector 1×2 Ratios Wideband Optical Couplers
Fiber Optic ST Connector 1×2 Ratios Wideband Optical Couplers
Fiber Optic ST Connector 1×2 Ratios Wideband Optical Couplers
Specifications
Brand Name :
Geehe Comm
Model Number :
GH-FO-0020
Certification :
CE,ISO9001:2015,ISO14001,RoHS
Place of Origin :
Wuhan China
MOQ :
200 pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T,Ali Pay,, Western Union
Supply Ability :
2,800 Pcs Per Day
Delivery Time :
Within 5-7 working days to delivery
Packaging Details :
Plastic box per pc with pressure defense sponge, outer carton
Model Name :
Wideband Optical Couplers
Optical Coupler Configuration Type: 1x2 Operating Wavelength :
1310nm,1490nm,1550 nm
Split ratio :
50/50,40/60,30/70,20/80,10/90,5/95 etc
Other Types :
Singlewindow, Dualwindow,Triplewindow
Function :
Fiber distribution
Available pre-terminated :
LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC
Polarization Alignment :
Slow Axis or Fast Axis
Fiber Type :
PM Fiber Cable
Package Type :
Steel Tube
Configuration Type :
1×2 with ST connector
Description

Fiber Optic ST Connector Coupler 1 × 2 Ratios Wideband Optical Couplers

Optic Coupler Brief Introduces:

Singlemode Couplers 1X2 and 2X2 offer very low insertion loss, low polarization dependence, and excellent environmental stability. Accurate coupling ratio's from 50/50 to 1/99 are available with very tight uniformity. The Singlemode Standard Coupler components perform power splitting and monitoring functions in all kinds of optical communication systems.

Geehe's Fiber Couplers with more stability, and widely used by brands and brand manufacturers, also get Brazil Anatel Certificate, tapered (FBT) technology, and are fully compliant with Telcordia GR-1209/1221 standards for network applications.

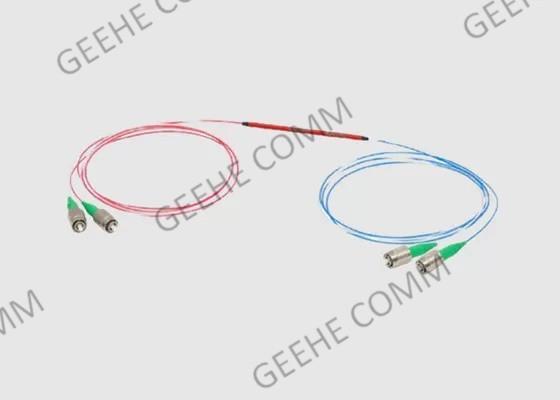

Fiber Optic ST Connector 1×2 Ratios Wideband Optical Couplers

Fiber Optic Coupler Features& Benefits:

  • Low Excess Loss

  • High Stability And High Reliability

  • Ultra-low PDL and temperature sensitivity

  • Low insertion loss over entire bandwidth and temperature (typical IL change <±0.1dB)

  • Low PDL

Fiber Optic ST Connector 1×2 Ratios Wideband Optical Couplers

Dual Window Wide Brand Coupler Specification and parameter:

Parameter P A
Operating Wavelength(nm) 1310&1550
Operating Bandwidth(nm) 1310 ± 40nm,1550 ± 40nm
Fiber Type(dB) Corning G652D OR Corning G657 A1
Insertion Loss
(dB)		 50/50 ≤3.3 ≤3.5
40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
PDL(dB) ≤0.1 ≤0.15
Return Loss(dB) ≥50 ≥45
Directivity(dB) ≥55
Operating Temperature(℃) -40 ~ +85

* The above specification is without connector

* Other specifications can be made on customer request

Ordering Information:

WBC- X- X2- 35- XX- X- XX- XX- X
P: Premium
A: Grade A
X: Customization		 12:1x2
22:2x2		 35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50		 1:1 m
x: Customization		 25:250μM Fiber 09:900μM loose fiber SC: SC/UPC SA: SC/APC
00: no connector		 A: A
B: B
C:C
Grade Port number Operating wavelength Coupling ratio Fiber length Fiber type Connect type Dimension

EX:WBC-P-12-35-50-1-09-0-B

Fiber Optic Coupler Application:

  • Mini size
  • Low excess loss
  • Low PDL and low WDL
  • High stability and reliability
  • Mini size transmitter/receiver module
  • Optical Communication Systems
  • CATV
  • Testing instruments
  • Local Area Networks

Wuhan Geehe Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards

4) Factory Audit

We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspection process by SGS

5) Young Team

The sales teams are 90s boys and girls, they with the energy and passion for their work and service well for every customer.

Fiber Optic ST Connector 1×2 Ratios Wideband Optical Couplers
