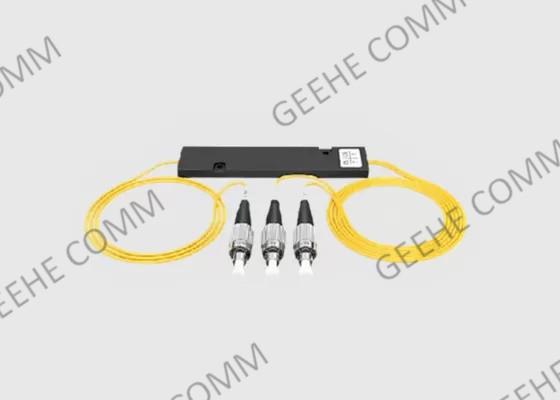

ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter
ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter
ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter
ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter
ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter
ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter
Specifications
Brand Name :
Geehe Comm
Model Number :
GH-OS-Splitter-0032
Certification :
ISO9001:2015 by SGS,CE,RoHS
Place of Origin :
Hubei,China
MOQ :
100 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, Ali Pay,Sinosure
Supply Ability :
3,800 Pcs/day
Delivery Time :
Within 7-9 working days after confirm order
Packaging Details :
Plastic box per pc with Pressure defense sponge, outer carton
Model Name :
Fiber Optic Splitter Cable
Fiber Type :
G657A OR G652D
Fiber Modes :
SM, MM
Splitting Ratio :
1x2, 1x4, 1x8, 1x16, 1x32, 1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x36
Operating Wavelength :
1260 To 1650 Nm
Color :
White and colorful
Fiber Length :
Customized Length1M, 1.5M, 2M, 2.5M, custom
Connector :
FC/UPC
Wavelength :
1310-1550nm
Package :
Steel Tube, ABS Black Box
Description

ABS Box Single Mode FC/UPC 1 to 2 Fiber Optic Splitter Cable

Optic Splitter Basic Information :


The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from the central office to customer premises in FTTx and FTTH networks.

PLC Splitter offers a cost-effective and space-saving networking solution in an optical transmission system.

ABC Box PLC Splitters packaged in an ABS box module is with standard 2.0mm Fiber cable. Blockless PLC Splitters are widely used for FTTH Passive Optical Network as passive optical splitters, including EPON (as EPON Splitter) and GPON (as GPON Splitter).

Optic Splitter Features& Benefits:

  • Single Mode, multimode, and PM fiber types
  • Multiple port configurations
  • Various splitting ratios, 50:50 to 1:99
  • Tube type or Box type
  • PC, UPC, and APC fiber optic connectors
  • Low Insertion Loss and high Return Loss
  • Available with FC, SC, ST, LC, and MU terminations

Application&Standard:

  • PON – FTTx Networks
  • Outside Plant Equipment
  • OADM and ROADM
  • CATV
  • DWDM and CWDM Systems
  • Sensors
  • Instrumentation
  • Defense
  • Telcordia GR-1209 and GR-1221

ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter

Specification& parameters

Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) 1260~1650
Port Wavelength Range (nm) 1310 ±20,1490 ±10 and 1550 ±20
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ≤0.3
Return Loss@ 1310/1551 nm (dB) ≤-55
Input Power (mW) 250max
Operating Temperature (℃) -40~+85℃
Storage Temperature (℃) -40~+85℃
Fiber Type Corning G657A1

Optic Splitter Package Dimensions:

WxHxD(mm) Port
60x4x4 1x4 1x8 2x4 2x8
60x12x4 1x16 2x16
80x12x6 1x32 2x32
100x40x6 1x64

Ordering Information:

PLC AAA B CC D EE FF GG
104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 1=900µm loose 05=0.5m 10=1.0m 15=1.5m 20=2.5m 1=900µm loose 05=0.5m 10=1.0m 15=1.5m 20=2.5m SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector
Configuration Input Fiber Type Input Fiber Length Output Fiber Length Output Fiber Input Connector Output Connector

Optic Splitter Shipping :

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter

Geehe Factory Optic Splitter Production Line:

  • Original Factory for famous brands
  • Stable and skilled workers from local city
  • Operation and Maintenance Services
  • Eliminate waste through our continuous improvement process
  • Increased flexibility and control
  • Reduced risks and disruptions

ABS Box Single Mode FC/UPC 1 To 2 Fiber Optic Cable Splitter
