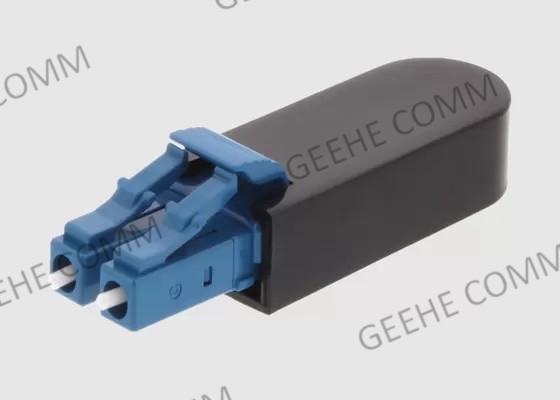

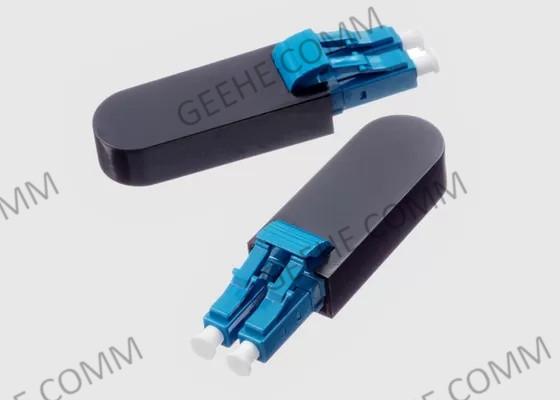

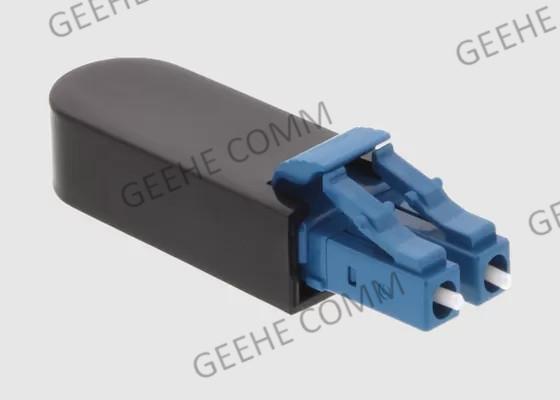

40/100G Optical Line Testing LC/APC Single Mode Fiber Loopback

1. Product Overview:

Fiber Optic Loopback modules are also called Optic Loopback adapters.

They are designed for testing, engineering, and the burning stage of boards or other equipment. Fiber Loop-back provides system test engineers a simple but effective way of testing the transmission capability and the receiver sensitivity of network equipment.

LC Fiber Optic Loopbacks are designed in a compact footprint. They are compliant with fast Ethernet, fiber channel, ATM, and Gigabit Ethernet.

2. Optical Cable Adaptor Feature and Benefits:

​

● Compact plastic shell housing for easy installation and for high-density applications

● Highly stable and reliable optical performance

● High precision alignment with superior optical loss

● Simulates network distances with the device

● Protective dust cover included fr protection during storage

● Available in attenuated versions for multimode applications offer the ability to simulate network distances with the device

3. Fiber Optic Adapter Applications:

● Caters for different applications such as testing devices, CATV, Sensor, etc

● MPO System Trouble Shooting

● Multiple channel interconnectors

● Data Centre Infrastructure

● Storage Area Network - Fiber Channel

4. Certification And Compliance

1) Free of hazardous substances according to RoHS2011/65/EU, TIA-604-5, and IEC 61754-7

2) Fiber Optic Connector Intermateability MPO Standards

3) ISO9001:2015 Approved by SGS, follow ISO9001:2015 System.

5.Optic Adapter Specification & Technology Parameters:

6. Ordering Information:

7. Twp Types Of LC Optic Loopback :

8. Wuhan Geehe Comm Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity

2) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards

3) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.

4) 24/7 After Service

Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
