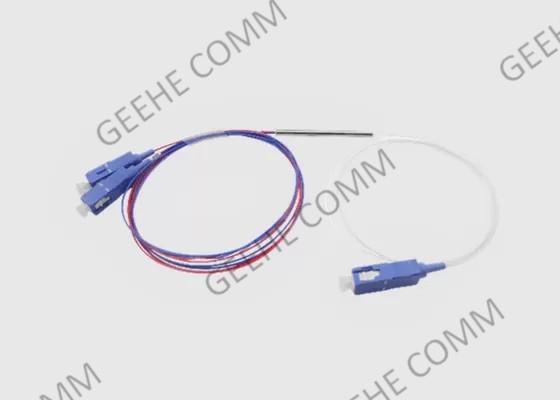

Loss Over 1×2 Simplex WDM Fiber Coupler 50/50 SC UPC 1310nm
Loss Over 1×2 Simplex WDM Fiber Coupler 50/50 SC UPC 1310nm
Loss Over 1×2 Simplex WDM Fiber Coupler 50/50 SC UPC 1310nm
Loss Over 1×2 Simplex WDM Fiber Coupler 50/50 SC UPC 1310nm
Loss Over 1×2 Simplex WDM Fiber Coupler 50/50 SC UPC 1310nm
Loss Over 1×2 Simplex WDM Fiber Coupler 50/50 SC UPC 1310nm
Specifications
Brand Name :
Geehe Comm
Model Number :
GH-FO-1×2
Certification :
CE,ISO9001:2015,ISO14001,RoHS, UL
Place of Origin :
Wuhan China
MOQ :
100 pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T,Ali Pay,, Western Union, Cash
Supply Ability :
2,800 Pcs Per Day
Delivery Time :
Within 7-9 working days after confirm orders
Packaging Details :
Plastic box per pc with pressure defense sponge, outer carton
Model Name :
Fiber Optic WDM Coupler
Optical Coupler Configuration Type: 1x2 Operating Wavelength :
1310nm,1490nm,1550 nm
Split ratio :
50/50,40/60,30/70,20/80,10/90,5/95 etc
Other Types :
Singlewindow, Dualwindow,Triplewindow
Function :
Fiber distribution
Available pre-terminated :
LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC
Polarization Alignment :
Slow Axis or Fast Axis
Fiber Type :
250um bare fiber
Package Type :
Steel Tube
Configuration Type :
1×2
Description

Loss Over 1×2 Simplex Fiber Optic WDM Coupler 50/50 SC UPC 1310nm

Optic Coupler Brief Introduces:

Fused WDM modules are designed for multiplexing and demultiplexing two wavelengths. These versatile, mux, and demux products are based on Fused Taper Fiber technology. This proven technology produces high-quality 3-port devices with low PDL, low insertion loss, and stable environment performance.

Single-mode wideband couplers have 80nm bandwidth, compared to 40nm of standard single-mode couplers. This product has very low excess loss and high-temperature stability.


Coupling ratio can be specified. Couplers working at center wavelength other than 1550nm or 1310nm can also be provided.

Loss Over 1×2 Simplex WDM Fiber Coupler 50/50 SC UPC 1310nm

2× 2 Fiber Optic Coupler Features& Benefits:

​1) Low loss&Low WDL

2) Ultra-low PDL

3) Ultra wide operation bandwidth +/-80nm

4) High directivity

5) Mini-size package

6) Dual operating window

7) Compact package

Loss Over 1×2 Simplex WDM Fiber Coupler 50/50 SC UPC 1310nm

Dual Window Wide Brand Coupler Specification and parameter:

Parameter P A
Operating Wavelength(nm) 1310&1550
Operating Bandwidth(nm) 1310 ± 40nm,1550 ± 40nm
Fiber Type(dB) Corning G652D OR Corning G657 A1
Insertion Loss
(dB)		 50/50 ≤3.3 ≤3.5
40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
PDL(dB) ≤0.1 ≤0.15
Return Loss(dB) ≥50 ≥45
Directivity(dB) ≥55
Operating Temperature(℃) -40 ~ +85

* The above specification is without connector

* Other specifications can be made on customer request

Ordering Information:

WBC- X- X2- 35- XX- X- XX- XX- X
P: Premium
A: Grade A
X: Customization		 12:1x2
22:2x2		 35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50		 1:1 m
x: Customization		 25:250μM Fiber 09:900μM loose fiber SC: SC/UPC SA: SC/APC
00: no connector		 A: A
B: B
C:C
Grade Port number Operating wavelength Coupling ratio Fiber length Fiber type Connect type Dimension

EX:WBC-P-12-35-50-1-09-0-B

2×2 FIber Optic Coupler Application:

  1. FTTx Systems

  2. LAN, WAN and Metro Networks

  3. Analog/Digital Passive Optical Networks

  4. Long-haul telecommunication

  5. Mini sizes transmitter/receiver module

  6. Optical communication system

  7. Optical communication system

  8. Optical power distribution system

  9. Fiber optic sensors

  10. Optical test system

Wuhan Geehe Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards


4) Fast Delivery

With skilled and stable workers, all the order turnover is fast than the competitors

5) Factory Audit

We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS
