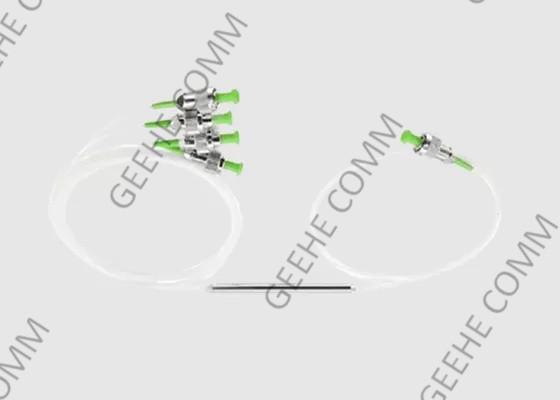

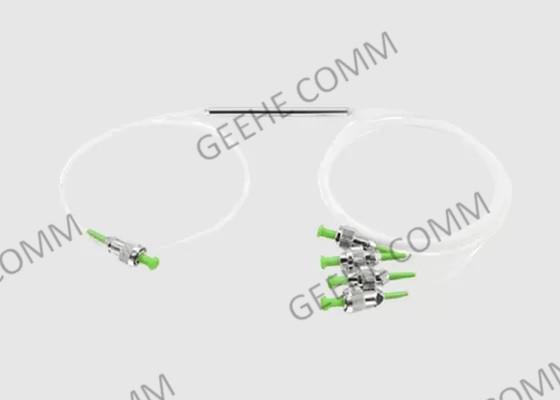

Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
Specifications
Brand Name :
Geehe Comm
Model Number :
GH-FO-1×2
Certification :
CE,ISO9001:2015,ISO14001,RoHS, UL
Place of Origin :
Wuhan China
MOQ :
100 pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T,Ali Pay,, Western Union, Cash, MoneyGram
Supply Ability :
2,800 Pcs Per Day
Delivery Time :
Within 7-9 working days after confirm orders
Packaging Details :
Plastic box per pc with pressure defense sponge, outer carton
Model Name :
1×4 FBT Fiber Optic FC Coupler
Optical Coupler Configuration Type: 1x2 Operating Wavelength :
1310nm,1490nm,1550 nm
Split ratio :
50/50,40/60,30/70,20/80,10/90,5/95 etc
Other Types :
Singlewindow, Dualwindow,Triplewindow
Function :
Fiber distribution
Available pre-terminated :
LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC
Polarization Alignment :
Slow Axis or Fast Axis
Fiber Type :
250um bare fiber
Package Type :
Steel Tube
Configuration Type :
1×4 with FC connectors
Description

Single Mode Dual Window 1310& 1550nm 1×4 FBT Fiber Optic FC Coupler

Optic Coupler Brief Introduces:

Fiber Fused Couplers / Splitters include wideband fused fiber couplers, polarization-insensitive miniature circulators, and fused single-mode wavelength division multiplexers.

MMFC series multi-mode single-window wideband fused fiber couplers are highly stable for multiport optical signal splitting. SWFC / DWFC series fused single or dual window wideband fiber 1x2 (2x2) couplers provide accurate optical signal coupling and splitting over a wide bandwidth with high performance and high reliability.

MIOC 3- or 4-port polarization-insensitive miniature circulators feature excellent optical characteristics over a wide wavelength range. SWD fused single-mode wavelength division multiplexers are manufactured using fused biconical taper technology.

Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm

1× 4 Fiber Optic Coupler Features& Benefits:

1) SWFC / DWFC:
Fused single or dual window wideband fiber 1x2 (2x2) couplers
Provides accurate optical signal coupling and splitting over a wide bandwidth with high-performance and high-reliability

2) SWD:
Fused single-mode wavelength division multiplexers
Manufactured using fused biconical taper technology

3) MIOC:
3- or 4-port polarization-insensitive miniature circulators
Excellent optical characteristics over a wide wavelength range

4) MMFC:
Multi-mode single-window wideband fused fiber couplers
Highly stable for multiport optical signal splitting

Dual Window Wide Brand Coupler Specification and parameter:

Parameter P A
Operating Wavelength(nm) 1310&1550
Operating Bandwidth(nm) 1310 ± 40nm,1550 ± 40nm
Fiber Type(dB) Corning G652D OR Corning G657 A1
Insertion Loss
(dB)		 50/50 ≤3.3 ≤3.5
40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
PDL(dB) ≤0.1 ≤0.15
Return Loss(dB) ≥50 ≥45
Directivity(dB) ≥55
Operating Temperature(℃) -40 ~ +85

* The above specification is without connector

* Other specifications can be made on customer request

Ordering Information:

WBC- X- X2- 35- XX- X- XX- XX- X
P: Premium
A: Grade A
X: Customization		 12:1x2
22:2x2		 35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50		 1:1 m
x: Customization		 25:250μM Fiber 09:900μM loose fiber SC: SC/UPC SA: SC/APC
00: no connector		 A: A
B: B
C:C
Grade Port number Operating wavelength Coupling ratio Fiber length Fiber type Connect type Dimension

EX:WBC-P-12-35-50-1-09-0-B

2×2 FIber Optic Coupler Application:

  1. FTTx Systems

  2. LAN, WAN and Metro Networks

  3. Analog/Digital Passive Optical Networks

  4. Long-haul telecommunication

  5. Mini sizes transmitter/receiver module

  6. Optical communication system

  7. Optical communication system

  8. Optical power distribution system

  9. Fiber optic sensors

  10. Optical test system

Wuhan Geehe Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards


4) Fast Delivery

With skilled and stable workers, all the order turnover is fast than the competitors

5) Factory Audit

We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS

Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
