Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
MOQ :
20
Packaging Details :
Plastic Box
Delivery Time :
in 3-5 days
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
4.5 MIllion PCS / Month
Material :
Plastic
Color :
Blue
Certificate :
ROHS, ISO
Insertion Loss (IL) :
0.2
Description

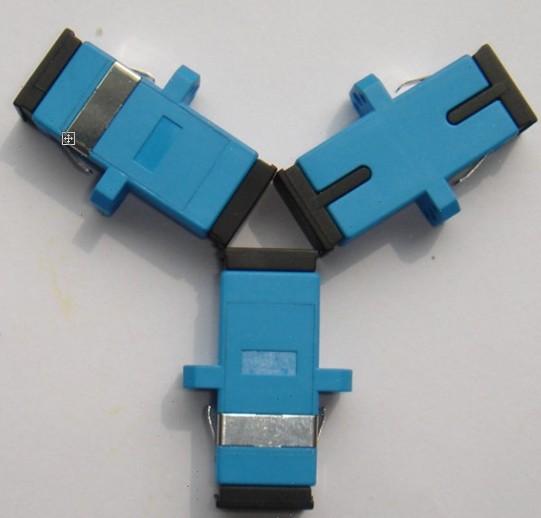

Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination



SC PC adapters are flange type, single mode adapters are with zirconia sleeve .

Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC, APC, UPC optional
Simplex / Duplex

Specification:
Insertion loss: < 0.2dB
Repeatability: < 0.2dB
Exchangeability:< 0.2dB
Retention force: 200-600G
Durability Time: >1000
Temperature range: -40 - 80 degree Celsius

Application:

1.Telecommunication
2.Computer networks
3.CATV networks
4.Active device termination
5.Instrumentation
Sleeve Material: Ceramic or beryllium bronze;
Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility;
Working Wavelength: 1200~1600nm
Working Condition: -40°C to +75°C;
Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB;
Repeatability: No more than 0.2dB ;
The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA.
Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green

Blue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device TerminationBlue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device TerminationBlue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device TerminationBlue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device TerminationBlue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device TerminationBlue color Ceramic or Bronze Sleeve SC/PC-SM Fiber Optic Adapter for Active Device Termination
