Specifications
Place of Origin :
China
Brand Name :
Senko / US CONEC / Furukawa Connector
Certification :
ISO9001:2008, SGS, ROSH
MOQ :
20
Packaging Details :
500units/cartern
Delivery Time :
in 5-10 days
Payment Terms :
T/T, Western union
Supply Ability :
50K
Certificate :
ISO,CE,ROHS
Surface polishing :
PC, APC, Upc
Cable :
PVC/LSZH/Plenum
Mode Type :
OS1/OS2/OM1/OM2/OM3/OM4
Connector Type :
LC,SC,FC, ST, MTRJ,MTP,MPO etc
Cable Type :
12Fibers
Description

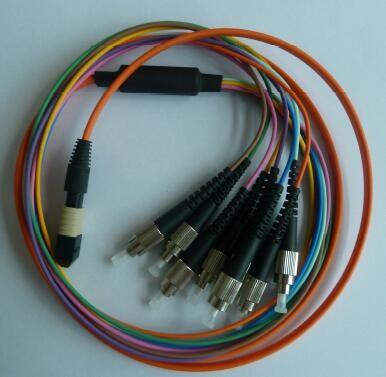

MPO - LC Fiber Optic Patch Cord, 4, 8, 12, 24 Fiber in single connector for optical CATV

MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.

Features

Single mode and multi mode (flat) APC(catercorner 8 degree angled)available

High fiber density (maximum 24 fibers for Multimode)

Fiber in single connector: 4, 8, 12 24

Insert/Pull latching connector

High reflection loss with APC

Comply with Telcordia GR-1435-CORE specification and Rosh standard

Application:

1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2.Video transmission , Data transmission
3.Active Device Termination
4.Premise Installations
5.Telecommunication and Data processing Networks
6.Industrial, medical & military
7.Systems Integration for Long Haul, Metro and Access Network

Specifications

Item

Single mode

Multi mode

Fiber diameter

9/125 um

62.5/125um 50/125um

Insertion loss

PC＜0.5dB APC＜0.4dB

PC＜0.4dB

Return loss

PC＞45 dB APC＞55dB

PC＞25dB

Insert-pull test

1000 times＜0.5 dB

Interchange

＜0.5 dB

Operating temperature

-40℃~ +80℃

Anti-tensile force

15kgf

Ordering Information

MPO/ PC–MPO/ PC-SM-12CORE–2M
① ② ① ② ③ ④ ⑤
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Fiber Quantity: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
