1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
Specifications
Place of Origin :
China
Brand Name :
CY
MOQ :
20
Packaging Details :
cardboard
Delivery Time :
2-5 working days
Payment Terms :
T/T, Western Union, PayPal, L/C
Certification :
ISO9001:2008, SGS, ROSH
Connnetor :
FC/SC/LC/ST
Fiber Type :
G657A1 , G652D
Cable :
2.0mm , 3.0mm
Description

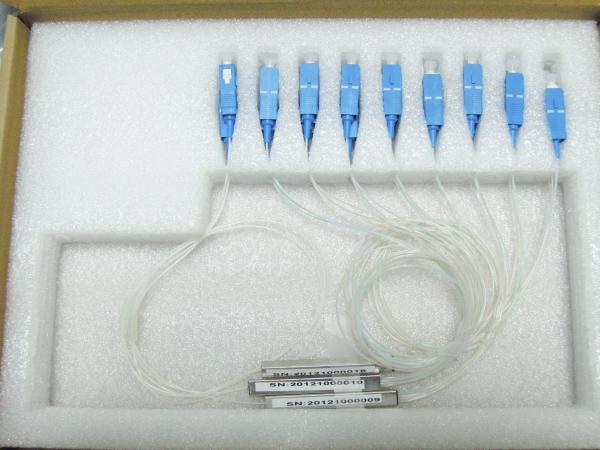

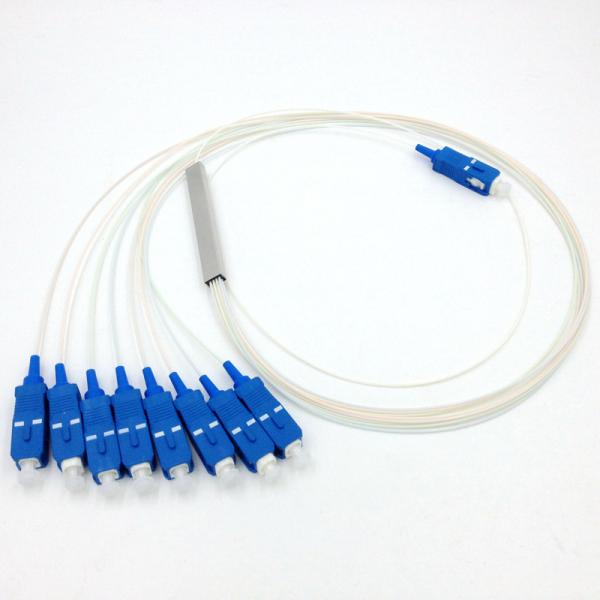

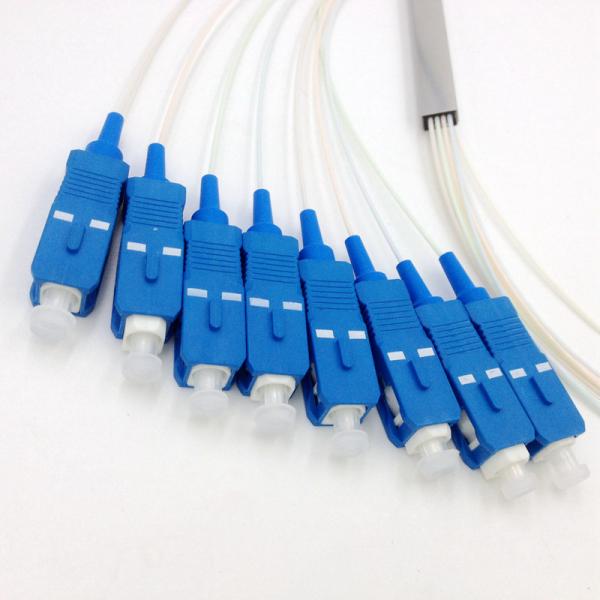

1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks

PLC Splitter is based on Planar Lightwave Circuit techmology and precision aligning process, can divide a single/dual optical input(s) into multipe optical outputs uniformly and is denoted 1×N or 2×N. PLC splitter is applied in FTTX depoyments, PON networks, CATV links and optical signal distribution currently. PLC splitter offers superior optical performance, high stablitity and high reliablitity, meets various application requirements indifferent environments.

Application:

FTTX networks
PON networks
CATV links
Data Communication

1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks

Feature:

Low Insertion Loss
Low Polarization Dependent Loss
Wide Operation Wavelength
Wide Operation Temperature
High Stability and Reliability

Parameters
1x2
1x4
1x8
1x16
1x32
1x64
Operating Wavelength (nm)
1260~1650
Fiber Type
SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)
4.0/3.8
7.3/7.0
10.5/10.2
13.7/13.5
16.9/16.5
21.0/20.5
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.5
Return Loss (dB) (S/P Grade)
50/55
50/55
50/55
50/55
50/55
50/55
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Stability(-40~85 °C)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (°C)
-40~85
Storage Temperature (°C)
-40~85
Packaging Dimension (mm) (L×W×H)
40×4×4
40×4×4
40×4×4
40×4×4
50×7×4
60×12×4

1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks1×8 PLC Fiber Optic Splitter, ABS Package, 0.9mm Cable for FTTX networks / PON Networks
