Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
MOQ :
200pcs
Packaging Details :
5000units/cartern
Delivery Time :
in 2-5 days
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
15000pcs per day
Model Number :
LC
Price :
usd0.20-0.32/pc
Color :
Green,blue,beige
Ferrule type :
LC APC/PC/UPC
Cable diameter :
0.9/2.0/3.0mm
Structure :
simplex or duplex
Description

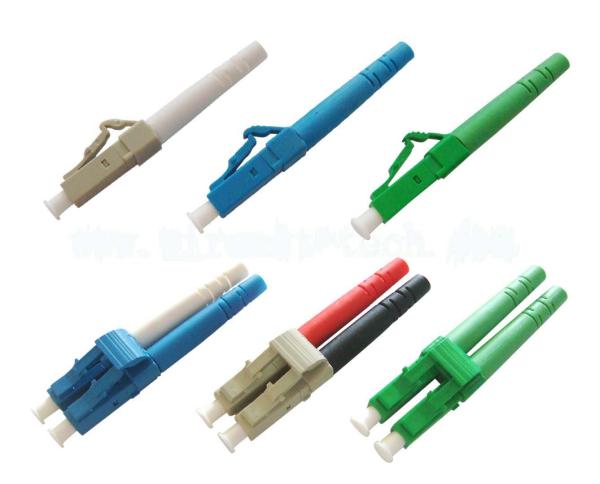

LC apc upc Fiber Optic Connector singlemode multimode blue beige green color


LC is a small form factor connector that uses a 1.25mm ferrule. It’s a standard ceramic ferrule connector, easily terminated with any adhesive.

Feature:

  1. Low insertion loss and return loss
  2. Free-floating ceramic ferrule
  3. UL-rated plastic housing and boot
  4. Boots in a variety of colors
  5. High precision alignment

Availability:
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
-PC and APC are available

Specifications:

Item

Single mode

Multi mode

Insertion loss

PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB

＜0.3dB

Return loss

PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB

＞25dB

Insert-pull test

1000(times) ＜0.2dB

Operating temperature

-40℃~ +80℃

Ceramic ferrule spec

125.5um concentricity deviations: ＜1um

127um concentricity deviations: ＜3um

Suitable fiber

PC/APC(9/125um)

PC(50/125um, 62.5/125um)

Application:

1. CATV, metro test equipment; FTTH;
2. Telecommunication networks;
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. Data processing networks;
7. Video and military active device termination.
8. Optical Distribution Frame
9. Optical Network Equipments
LC apc upc Fiber Optic Connector singlemode multimode blue beige green colorLC apc upc Fiber Optic Connector singlemode multimode blue beige green color
