Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
MOQ :
20
Packaging Details :
1000units/cartern
Delivery Time :
in 3-8 days
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
10000pcs per day
Certificate :
ISO, ROHS
Color :
Black and Green
Ferrule type :
APC/UPC/PC
Description

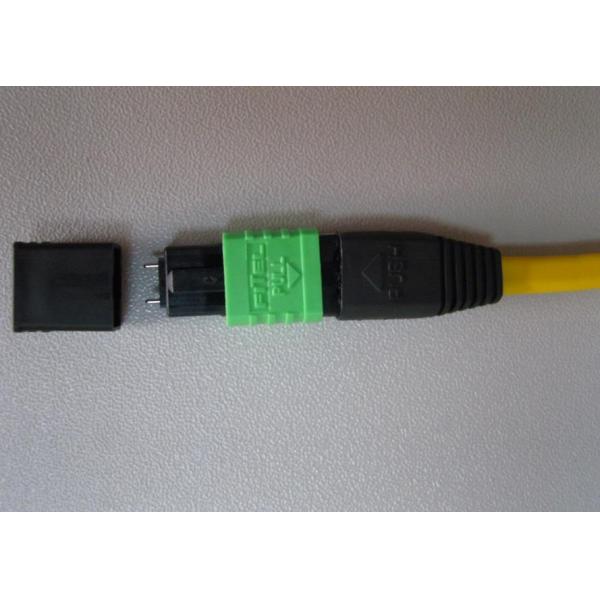

MPO/MTP Connector
PC & APC
Single mode & Multimode
Cable length optional

Feature:

  1. Low insertion loss and return loss
  2. Free-floating ceramic ferrule
  3. UL-rated plastic housing and boot
  4. Boots in a variety of colors
  5. High precision alignment

Availability:
-The MPO is a multi-fiber connector suitable for high-density backplane and printed circuit board (PCB) applications for data and telecom systems. MPO/MPT connectors have rectangle with a nominal diameter of 6.4mmx2.5mm ferrules and offer up to 12-times the density of standard fiber optic connectors that results in significant space and cost savings.

Specifications:

Item

Single mode

Multi mode

Insertion loss

PC＜0.5dB APC＜0.4dB

PC＜0.4dB

Return loss

PC＞45dB APC＞55dB

PC＞25dB

Insert-pull test

500 times＜0.5dB

Operating temperature

-40℃~ +80℃

Suitable fiber

PC/APC(9/125um)

PC(50/125um 62.5/125um)

Application:

1. CATV, metro test equipment; FTTH;
2. Telecommunication networks;
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. Data processing networks;
7. Video and military active device termination.
8. Optical Distribution Frame
9. Optical Network Equipments
ISO, ROHS APC/UPC/PC Multi-core Multi-channel Pluggable MPO/MTP Fiber Optic Connector
ISO, ROHS APC/UPC/PC Multi-core Multi-channel Pluggable MPO/MTP Fiber Optic Connector

ISO, ROHS APC/UPC/PC Multi-core Multi-channel Pluggable MPO/MTP Fiber Optic Connector
