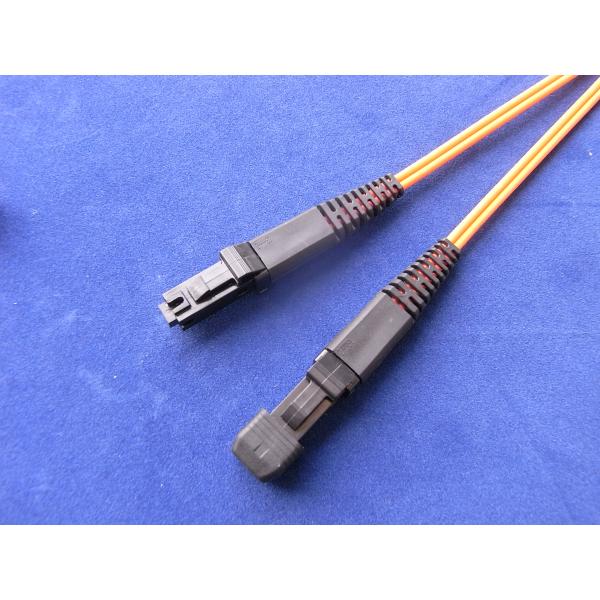

MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode
MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode
MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode
MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode
MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode
MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode
Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
Model Number :
MTRJ SM&MM Fiber Optic connector
MOQ :
20 Piece/Pieces optional
Packaging Details :
1 pcs/small bag, 50 small bag/big bag
Delivery Time :
according to your target quantity
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
10000pcs per day
Product Name :
Fiber Optics Connector
Insertion Loss :
Single mode dB & Multimode
Return Loss :
PC ≥50 dB, UPC ≥55 dB & APC ≥65 dB
Operating Temperature :
-40 to + 80
Single mode :
125.0+1/-0μm
Multi mode :
125μm
Description

MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode

Specifications

  1. Small form connector
  2. High quality thermostatic ferrule
  3. Side pulling proof
  4. Compact size

MTRJ Fiber optic connector

MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode

The MTRJ connector has an improved version of RJ-45 type plug. This latching mechanism ensure easy to use. MTRJ adapter with approximately same space as a simplex SC adapter

Availability:

  • -The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
  • -Clips are available for SC and LC duplex connectors
  • Housing kits without ferrule are available.
  • -PC and APC are available

Specifications:

  • Insertion Loss: Single mode l≤0.20dB & Multimode ≤0.25dB
  • Return Loss: PC ≥50 dB, UPC ≥55 dB & APC ≥65 dB
  • Durability <0.20 dB typical change, 1000 mating
  • Operating Temperature: -40 to + 80
  • Ferrule Hole Sizes:
  • Single mode: 125.0+1/-0μm, Concentricity: ≤1.0μm, 125.5+1/-0μm, Concentricity: ≤1.0μm, 126.0+1/-0μm, Concentricity: ≤1.0μm
  • Multi mode: 125μm, Concentricity: 1≤3μm or 127μm, Concentricity: 1≤3μm or 128μm, Concentricity: 1≤3μm
PARAMETER SM MM UNIT
Insertion Loss Low Loss Type:≤0.35 Low Loss Type:≤0.35 dB
Standard Type:≤0.75 Standard Type:≤0.75
Return Loss PC Type:≥45 PC Type:≥20 dB
APC Type:≥55 N/A
Durability Change After 500 Times Mating/Demating<0.3 Change After 500 Times Mating/Demating<0.3 dB
Test Wavelength 850/1310 850/1310 nm
Operating Temperature -40 to +80 -40 to +80 ℃

MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode

MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode

MTRJ SM / MM Fiber Optics Connector For Single And Multi Mode
