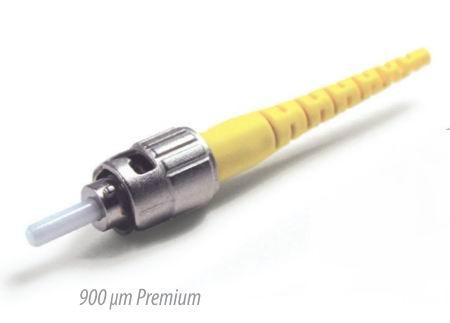

Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
Model Number :
ST simplex connector
MOQ :
20 Piece/Pieces
Packaging Details :
1 pcs/small bag, 50 small bag/big bag
Delivery Time :
according to your target quantity
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
12000pcs/day
Product Name :
Fiber Optics Connector
Operating temperature :
-40°C~ +80°C
Suitable fiber :
PC/APC,PC
Type :
Singlemode Or Multimode
Description

Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm

Fiber optic connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.

Feature:

  1. Low insertion loss and return loss
  2. Free-floating ceramic ferrule
  3. UL-rated plastic housing and boot
  4. Boots in a variety of colors
  5. High precision alignment

Availability:

  • -The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
  • Housing kits without ferrule are available.
  • -PC and APC are available

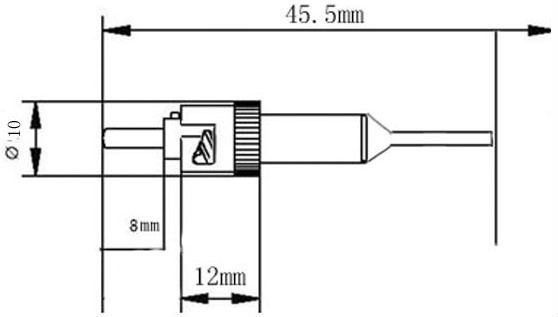

Mechanical Drawings:

Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm

Specifications:

Item

Single mode

Multi mode

Insertion loss

PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB

<0.3dB

Return loss

PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB

>25dB

Insert-pull test

1000(times) <0.2dB

Operating temperature

-40°C~ +80°C

Ceramic ferrule spec

125.5um concentricity deviations: <1um

127um concentricity deviations: <3um

Suitable fiber

PC/APC(9/125um)

PC(50/125um, 62.5/125um)

Application:

1. CATV, metro test equipment; FTTH;

2. Telecommunication networks;

3. Local area networks (LAN);

4. Wide area networks (WAN);

5. Premise installations;

6. Data processing networks;

7. Video and military active device termination.

8. Optical Distribution Frame

9. Optical Network Equipments

Fiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mmFiber Optics Connector ST Single Mode Simplex 0.9mm , 2.0mm , 3.0mm
