ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC
ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC
ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC
ISO RoHS Insertion Los ≤ 0.2dB,≤ 0.3dB ST DX Duplex Fiber Optics Connector Assemblies PC And APC
Specifications
Place of Origin :
Shenzhen , China
Brand Name :
CY COM
Certification :
ISO9001:2015 , RoHS
Model Number :
ST duplex connector
MOQ :
20 Piece/Pieces
Packaging Details :
1 pcs/small bag, 50 small bag/big bag
Delivery Time :
according to your target quantity
Payment Terms :
L/C,T/T,Western Union payments for offline orders.
Supply Ability :
12000pcs/day
Product Name :
Fiber Optics Connector
Feature :
Low insertion loss and return loss
Type :
PC,UPC,APC
Insertion Loss :
≤ 0.2dB,≤ 0.3dB
Description

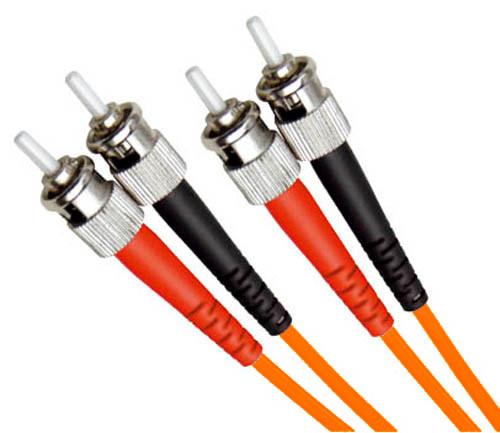

ST DX Duplex Fiber Optics Connector Assemblies PC And APC

Fiber optic connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
ST stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.

Feature:

  1. Low insertion loss and return loss
  2. Free-floating ceramic ferrule
  3. UL-rated plastic housing and boot
  4. Boots in a variety of colors
  5. High precision alignment

Availability:

  • -The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
  • Housing kits without ferrule are available.
  • -PC and APC are available

Applications:

•Telecommunication network;
•Computer LAN;
•Cable television network;
•Connection of optical cable and light receiver.

Specification:

Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9


Order information:

•Fiber cores: 1, 4, 8, 12, 16... cores
•Diameter:0.9, 2.0, 3.0mm
•Length:1m, 2m, 3m to 120m
•Fiber: SM/OM1/OM2/OM3/OM4
•Material of jacket: PVC/LSZH/OFNR
•Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000
